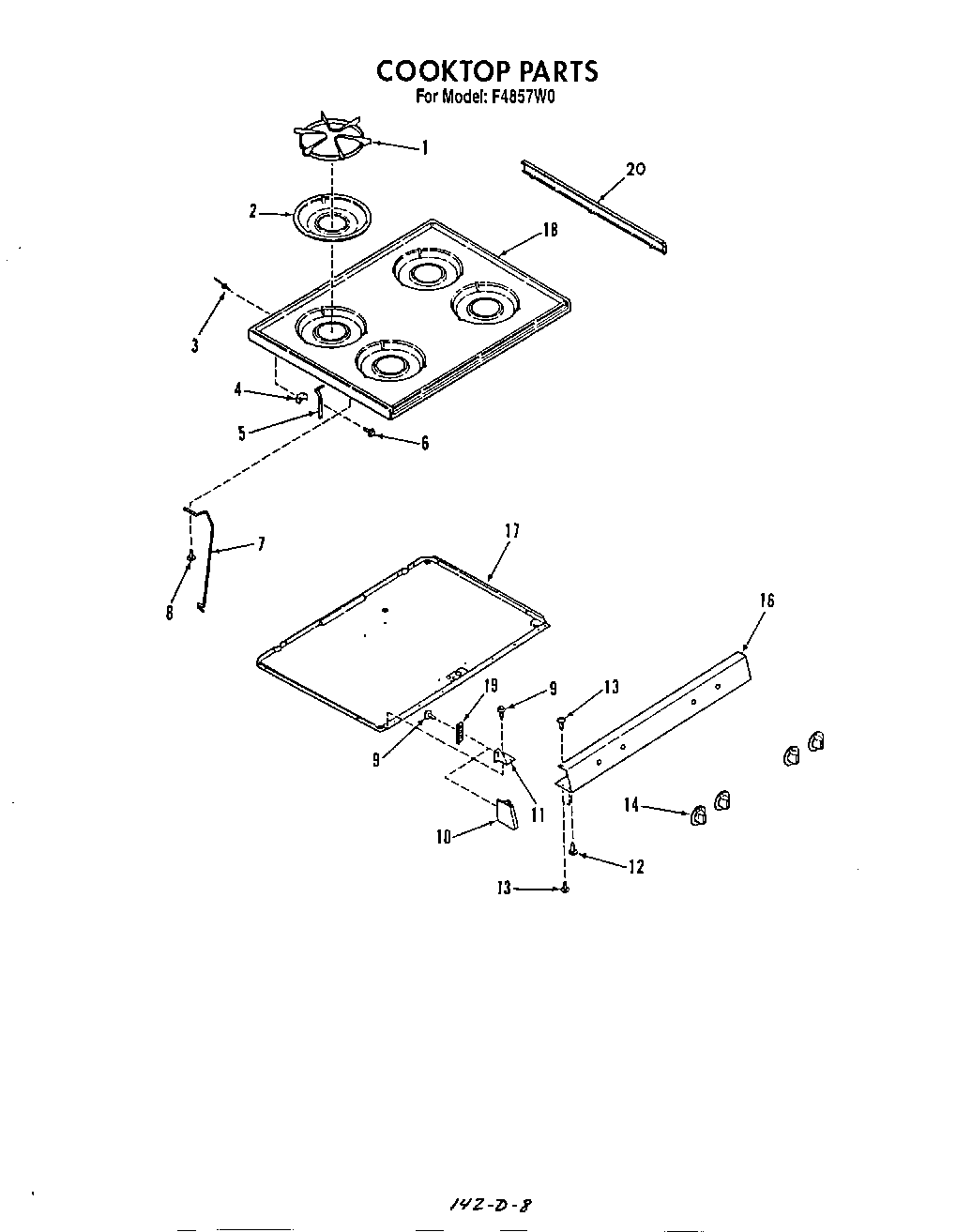

F4857^0 03 – COOKTOP

Products

PositionProduct
1Grate, Burner (4)
2Pan, Aeration
3Rivet
4Bracket, Mounting
5Hinge (Right)
5Hinge (Left)
6WP999367 Whirlpool Refrigerator Screw
7Support Rod (2)
8Screw 6-32×5/16
9SCREW
10End Cap (Left)
10End Cap (Right)
11Bracket, Manifold (Right)
11Bracket, Manifold (Left)
12Screw
13Screw
14Knob, Gas Valve (4)
16Panel, Manifold
17Bottom, Burner Box
18Cooktop W/Trim (White)
18Cooktop W/Trim (Almond)
19Cleat
20Trim (Left)
20Trim (Right)
