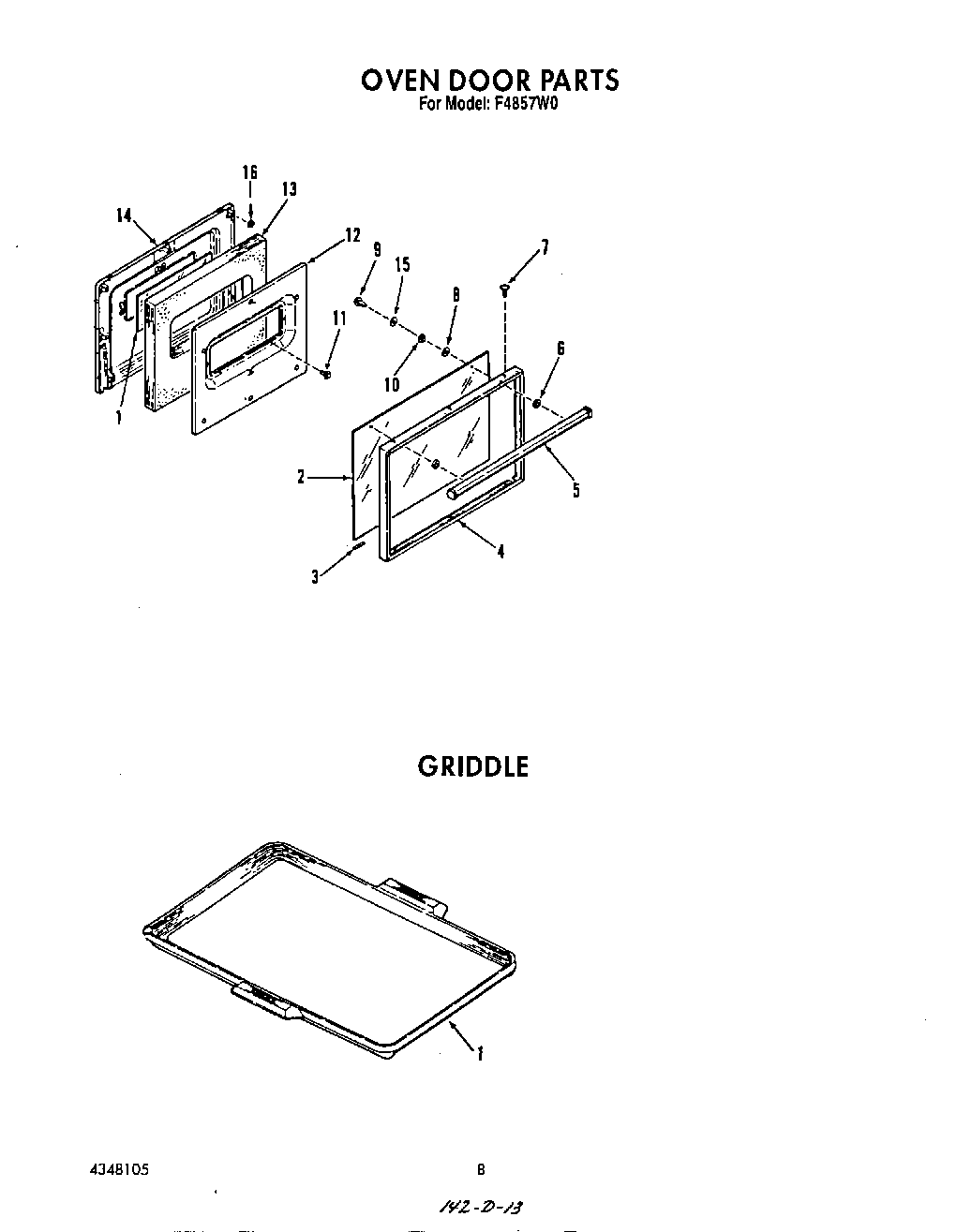

F4857^0 06 – OVEN DOOR , GRIDDLEadmin2025-04-26T11:53:32+00:00F4857^0 06 – OVEN DOOR , GRIDDLE
Products
| Position | Product |
|---|
| A1 | Griddle, Set-On |
| 1 | Glass, Inner |
| 2 | Glass, Outer |
| 3 | Cushion |
| 4 | Frame |
| 5 | Handle, Door |
| 6 | Spacer, Dr. Handle |
| 7 | Screw |
| 8 | Washer, Fiber |
| 9 | WP999367 Whirlpool Refrigerator Screw |
| 10 | Spacer, Glass Door |
| 11 | Screw, No.10-32x17/32`` |
| 12 | Retainer |
| 13 | Insulation |
| 14 | Liner, Inner Door |
| 15 | Washer |
| 16 | Wire Harness (Backguard) |
| 16 | WP285432 Whirlpool Terminal |
| 16 | Wire Harness (3/16``) |
| 16 | Wire Harness (Flag Terminal Faston Terminal) |
| 16 | Washer, Felt |
| 16 | Wire Harness (Main) |
