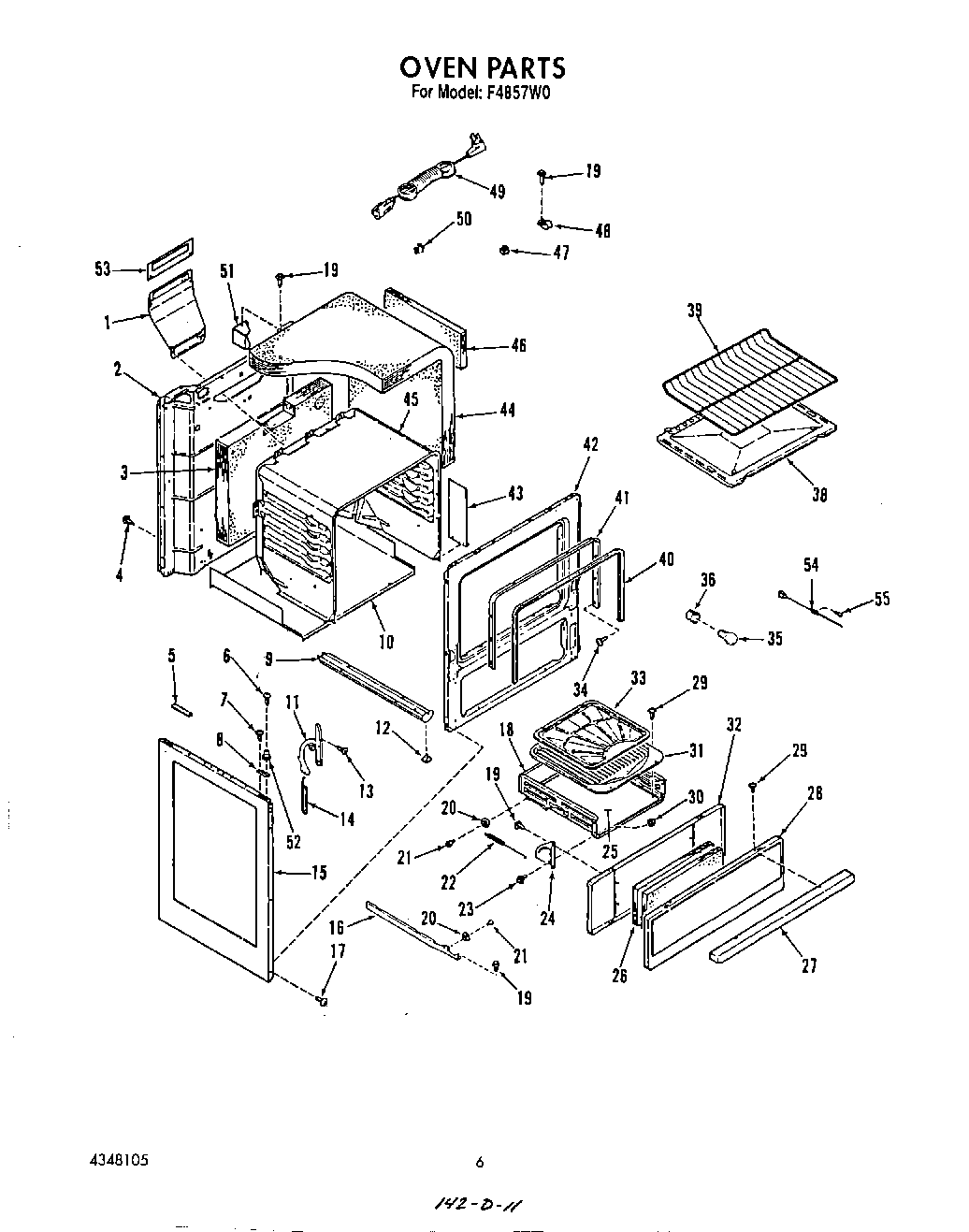

| 1 | Deflector |
| 2 | Cover, Back |
| 3 | Insulation-Back |
| 4 | W10850756 Whirlpool Screw |
| 5 | Spacer |
| 6 | Screw No.6-32x7/8 |
| 7 | Screw 6-32x5/16 |
| 8 | Support, Side (Right) |
| 8 | Support, Side (Left) |
| 9 | Base, W/ Levelers (2) |
| 10 | Bottom, Main |
| 11 | Hinge-Oven Door (Left) |
| 11 | Hinge-Oven Door (Right) |
| 12 | Levelers, Leg (4) |
| 13 | Screw |
| 14 | Spring, Oven Door |
| 15 | Side, Cabinet (Almond) |
| 15 | Side, Cabinet (White) |
| 16 | Guide, Broiler Drawer (Inc 20,21) (Right) |
| 16 | Guide, Broiler Drawer (Inc 20,21) (Left) |
| 17 | WP308685 Whirlpool Microwave Screw |
| 18 | Broiler Drawer (Inc. 20,21) |
| 19 | SCREW |
| 20 | Roller |
| 21 | Rivet |
| 22 | Spring, Broiler-Drawer |
| 23 | Bolt, Shoulder |
| 24 | Hinge-Broiler Drawer (Right) |
| 24 | Hinge-Broiler Drawer (Left) |
| 25 | Bottom, Broiler |
| 27 | Handle |
| 28 | Broiler Door Panel (White) |
| 28 | Broiler Door Panel (Almond) |
| 29 | Screw No.10-32x1/2 |
| 30 | W10080180 Whirlpool Nut |
| 31 | Pan, Broiler |
| 32 | Lining, Broiler Door |
| 33 | Grid, Broiler Pan |
| 34 | Screw, No.10-32x17/32`` |
| 35 | RANGE ONLY 40W 120V APPL BULB |
| 36 | W10856866 Whirlpool Light Socket |
| 38 | Bottom, Oven |
| 39 | Rack, Oven (2) |
| 40 | Seal, Oven Door |
| 41 | Retainer, Oven-Door-Seal |
| 42 | Frame, Front |
| 43 | Retainer, Insul., (Lt/Rt) |
| 44 | Insulation, Wrap |
| 45 | Oven |
| 46 | Insulation (Rt/Lt) |
| 47 | Bushing |
| 48 | Clip (For No.1) |
| 49 | Service Cord |
| 50 | Disconnect |
| 51 | Cover, Wire |
| 52 | Strike |
| 53 | Insulation, Flue Deflector |
| 54 | Sensor |
| 55 | Screw No.6-32x3/16`` |
