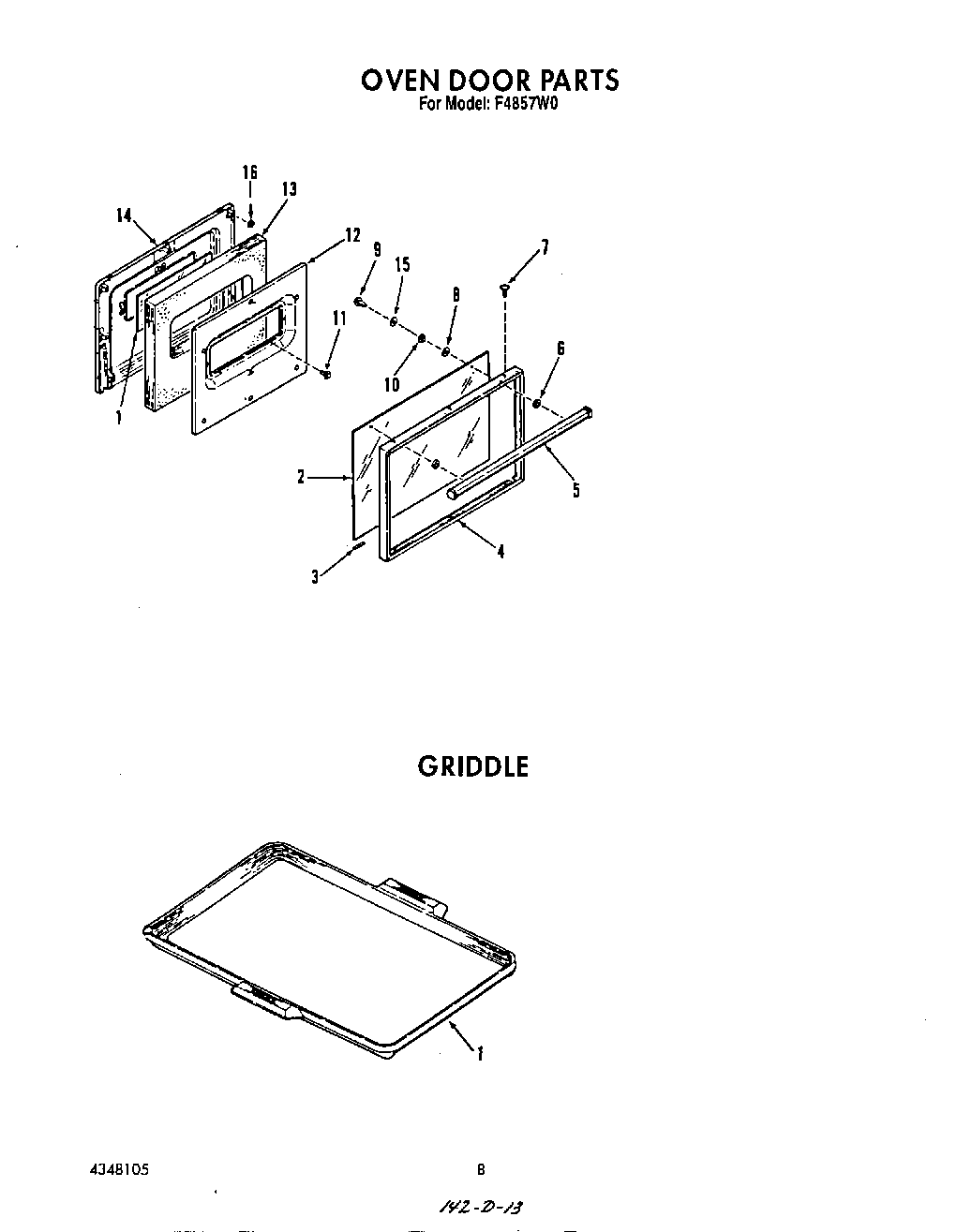

F4857W0 06 – OVEN DOOR , GRIDDLE

Products

Position	Product
A1	Griddle, Set-On
1	Glass, Inner
2	Glass, Outer
3	Cushion
4	Frame
5	Handle, Door
6	Spacer, Dr. Handle
7	Screw
8	Washer, Fiber
9	WP999367 Whirlpool Refrigerator Screw
10	Spacer, Glass Door
11	Screw, No.10-32×17/32“
12	Retainer
13	Insulation
14	Liner, Inner Door
15	Washer
16	Wire Harness (Backguard)
16	WP285432 Whirlpool Terminal
16	Wire Harness (3/16“)
16	Wire Harness (Flag Terminal Faston Terminal)
16	Washer, Felt
16	Wire Harness (Main)
