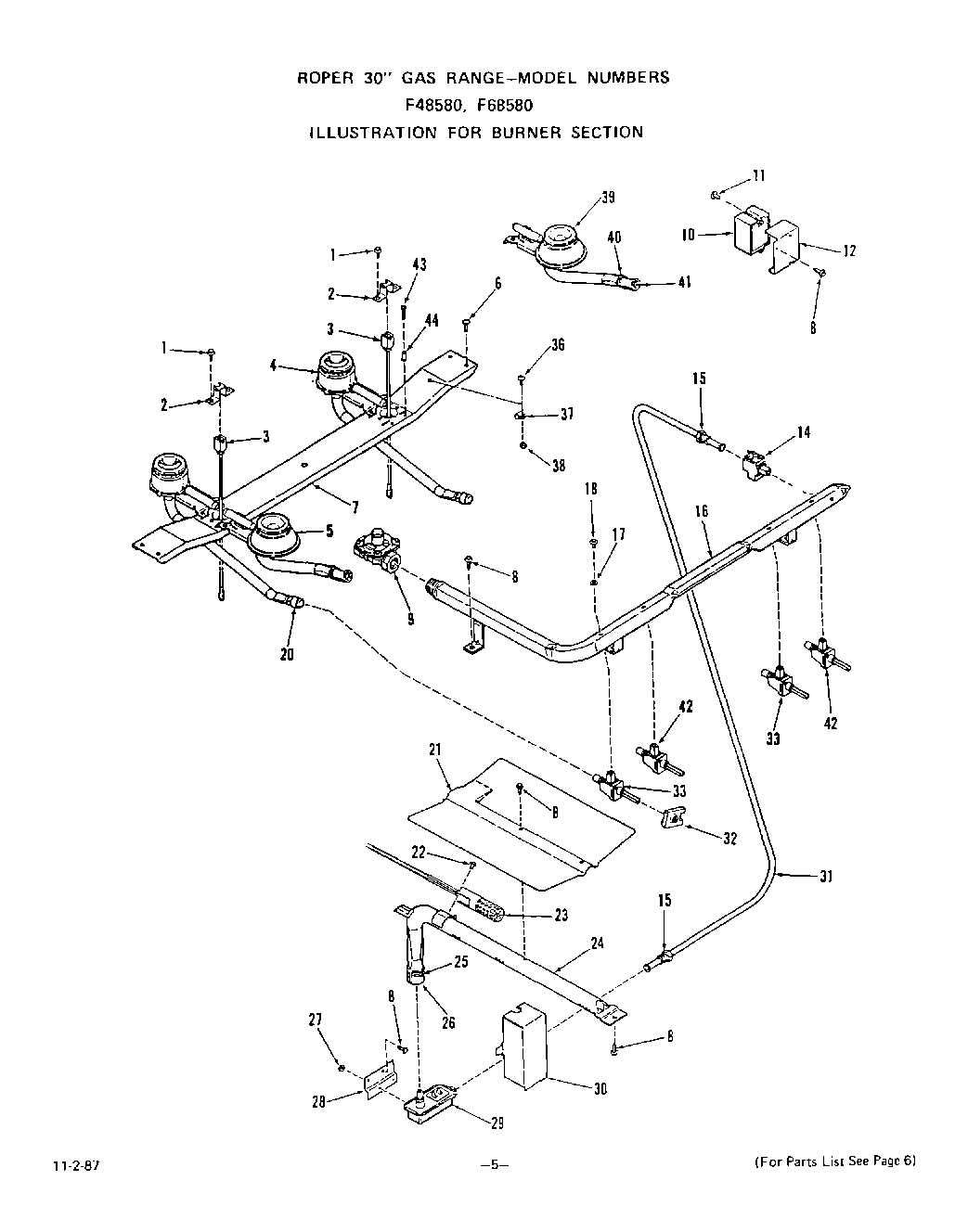

F4858^0 04 – BURNER

Products

Position	Product
1	Screw 8 – 32×3/8“
2	panel, side l.h. (almond panel, side r.h.)
3	Left
3	Electrode (Left)
3	Electrode
4	Rear Burner-Lt. or Rt.. (Inc`s. Key 8)
6	Screw 6-20×3/8“
7	Support-Top Burner
8	Screw 10-16×7/16“
10	Spark Module
11	Screw 6-20×3/8“
12	Bracket – Spark Igniter Module
14	Shut Off Valve
15	Inverted Nut 3/8“
16	Manifold Pipe
17	Silicone Rubber Gasket (For Key 26)
18	Mounting Screw (Inc`s 86)
19	Pressure Regulator
20	Air Shutter
21	Baffle – Oven Burner
22	Screw 10 – 32 x 1/4“
23	Igniter-Broiler & Oven Burner
24	Oven Burner Asm. (Inc`s Keys 21, 25, 26)
25	Adjustment Screw -Air Shutter
26	Air Shutter
27	Nut 6-32
28	Bracket-Control Valve
29	Control Valve
30	Cover-Control Valve
31	Tubing 3/8“ (Shut-Off to Control Valve)
32	Switch-Gas Valve
33	Gas Valve
36	Screw 8-32 x 3/8“
37	Clip
38	Keps Nut 8-32
39	Front Burner-Rt. (Inc`s Key 37 & 38)
40	Adjustment Screw-Air Shutter
41	Air Shutter
42	Gas Valve (Inc`s Key 18)
43	Screw 6-32×7/8“
44	Eyelet
