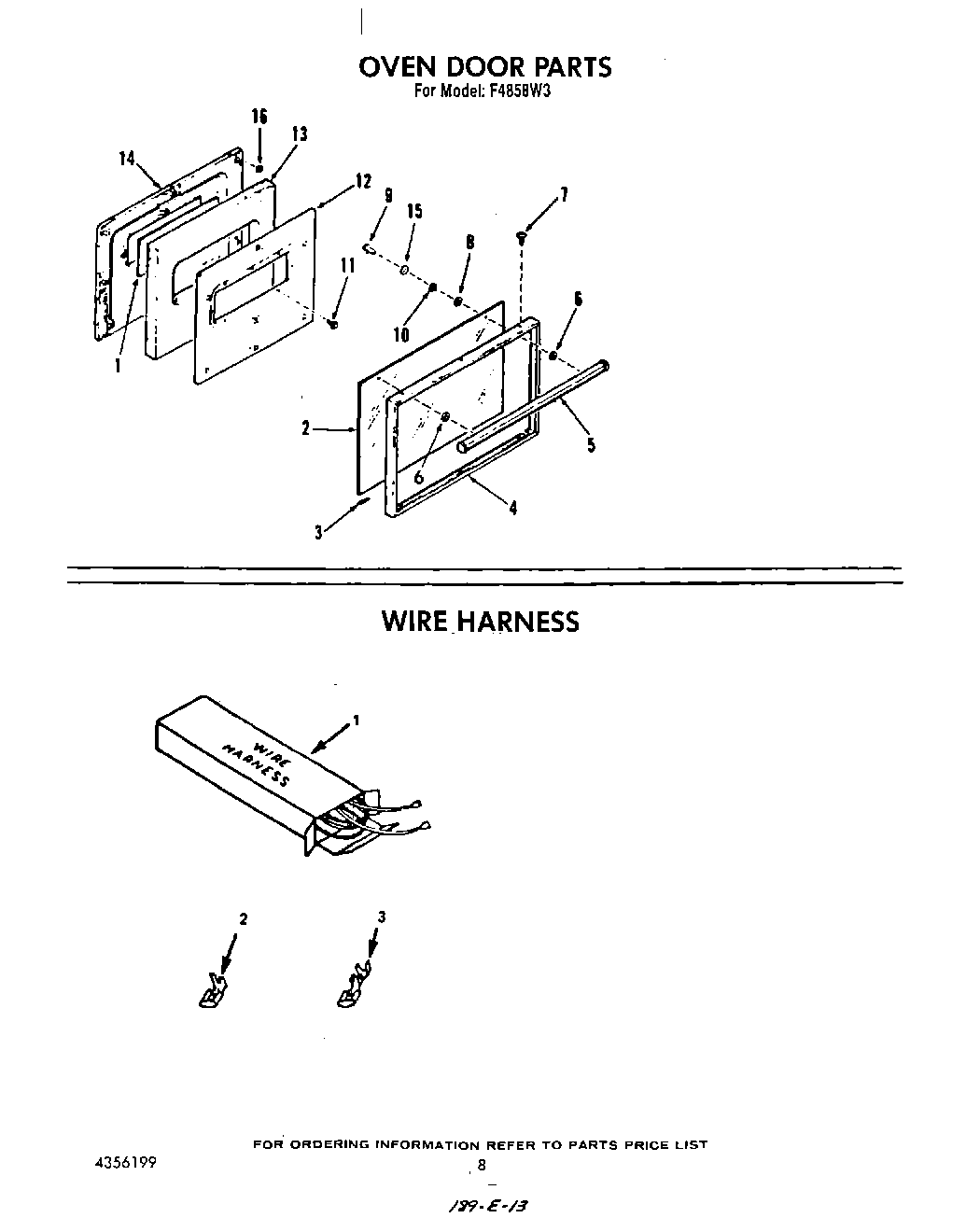

F4858^3 06 – OVEN DOOR , WIRE HARNESS

Products

PositionProduct
A1Wire Harness (Backguard)
A2Flag Terminal
A3Wire Harness (3/16“)
1Wire Harness (Main)
1Glass, Inner
1Wire Harness (Switches)
2Glass, Outer
3Cushion
3WP285432 Whirlpool Terminal
4Frame
5Handle, Door
6Spacer, Dr. Handle
7Screw
8Washer, Fiber
9Screw, No.10-32 x 3/4
10Spacer, Glass Door
11Screw, No.10-32×17/32“
12Retainer
13Insulation
14Liner, Inner Door
15Retainer
16Washer, Felt
