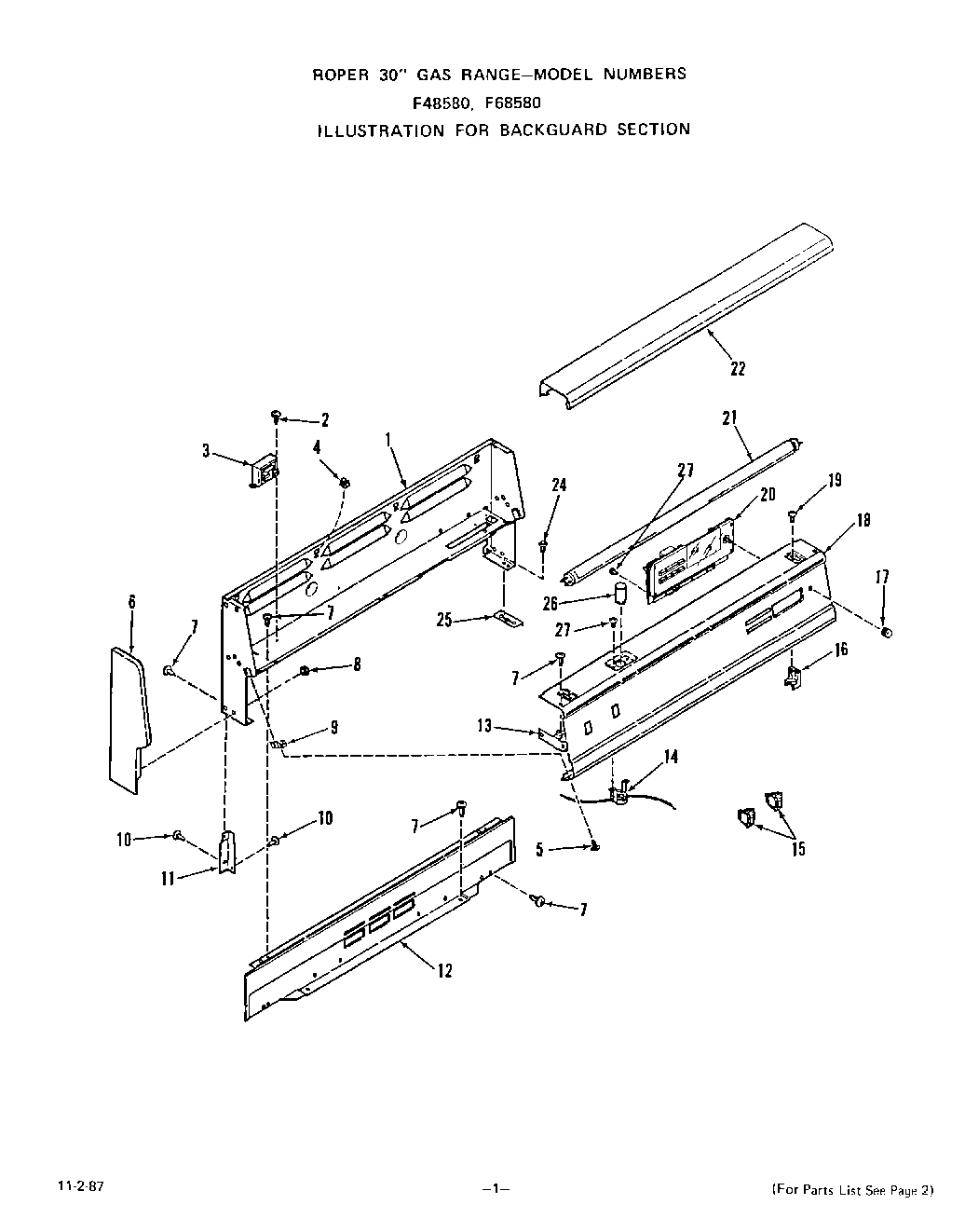

| xClock /Oven Control Lens |
| 1 | Backguard Body |
| 2 | Screw 6-20x3/8`` |
| 3 | Ballast |
| 4 | Wire Clip |
| 5 | Screw 10-16x1/2`` |
| 6 | Left |
| 6 | Right |
| 6 | End Cap |
| 7 | Screw 10ABx1/2`` |
| 8 | Pal Nut |
| 9 | Backguard Clip |
| 10 | Screw 10-16x7/16`` |
| 11 | Left |
| 11 | Backguard Support |
| 11 | Right |
| 12 | Backguard Front Panel |
| 13 | Backguard Bracket |
| 14 | Starter Base |
| 15 | Switch-Oven Light |
| 16 | Lamp Holder |
| 17 | Clock Knob |
| 18 | Control Panel |
| 19 | Screw 6-32x3/8`` |
| 20 | Clock/Oven Control w/Lens |
| 21 | Fluorescent Lamp |
| 22 | Canopy Panel |
| 24 | WP112432 Whirlpool Nut Assembly |
| 25 | Body Side Cleat |
| 26 | Lamp Starter |
| 27 | Screw 6-32x5/16`` |
