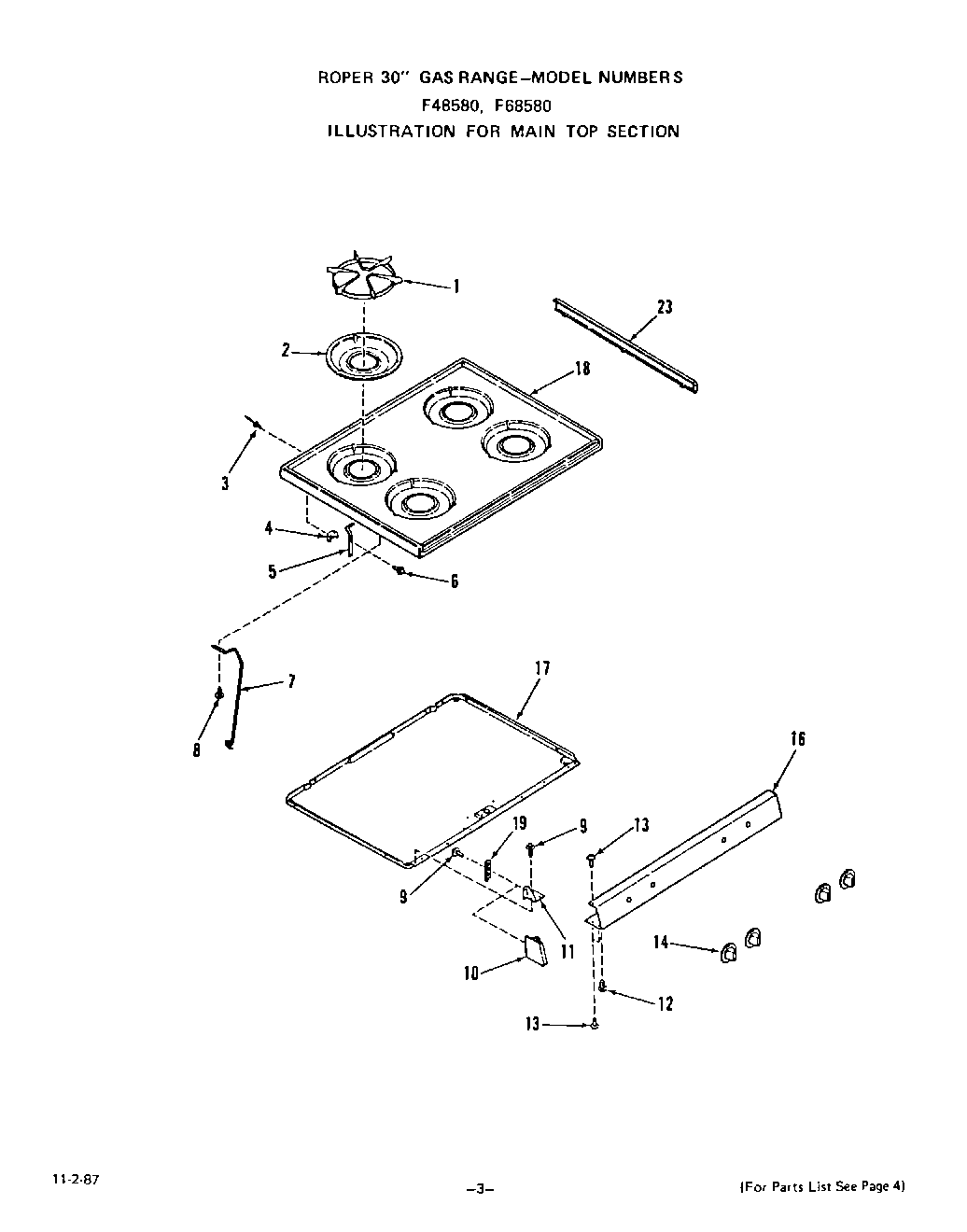

| 1 | Top Grate (4 Req) |
| 2 | Aeration Pan (Model F65080) |
| 3 | Rivet |
| 4 | Hinge Bracket |
| 5 | Right |
| 5 | Left |
| 5 | Main Top Hinge |
| 6 | WPL 321162 |
| 7 | Support Rod-Main Top (2 Req) |
| 9 | Screw 10-16x7/16`` |
| 10 | End Cap |
| 10 | Right |
| 10 | Left |
| 11 | Manifold Panel Bracket (Left) |
| 11 | Manifold Panel Bracket |
| 11 | Manifold Panel Bracket (Right) |
| 12 | Screw |
| 13 | Screw |
| 14 | Gas Valve Knob (4 Req) |
| 16 | Manifold Panel |
| 17 | Burner Box Bottom |
| 18 | Almond |
| 18 | Main Top W/Trim |
| 18 | White |
| 19 | Body Side Cleat |
| 23 | Main Top Trim |
| 23 | Right |
| 23 | Left |
