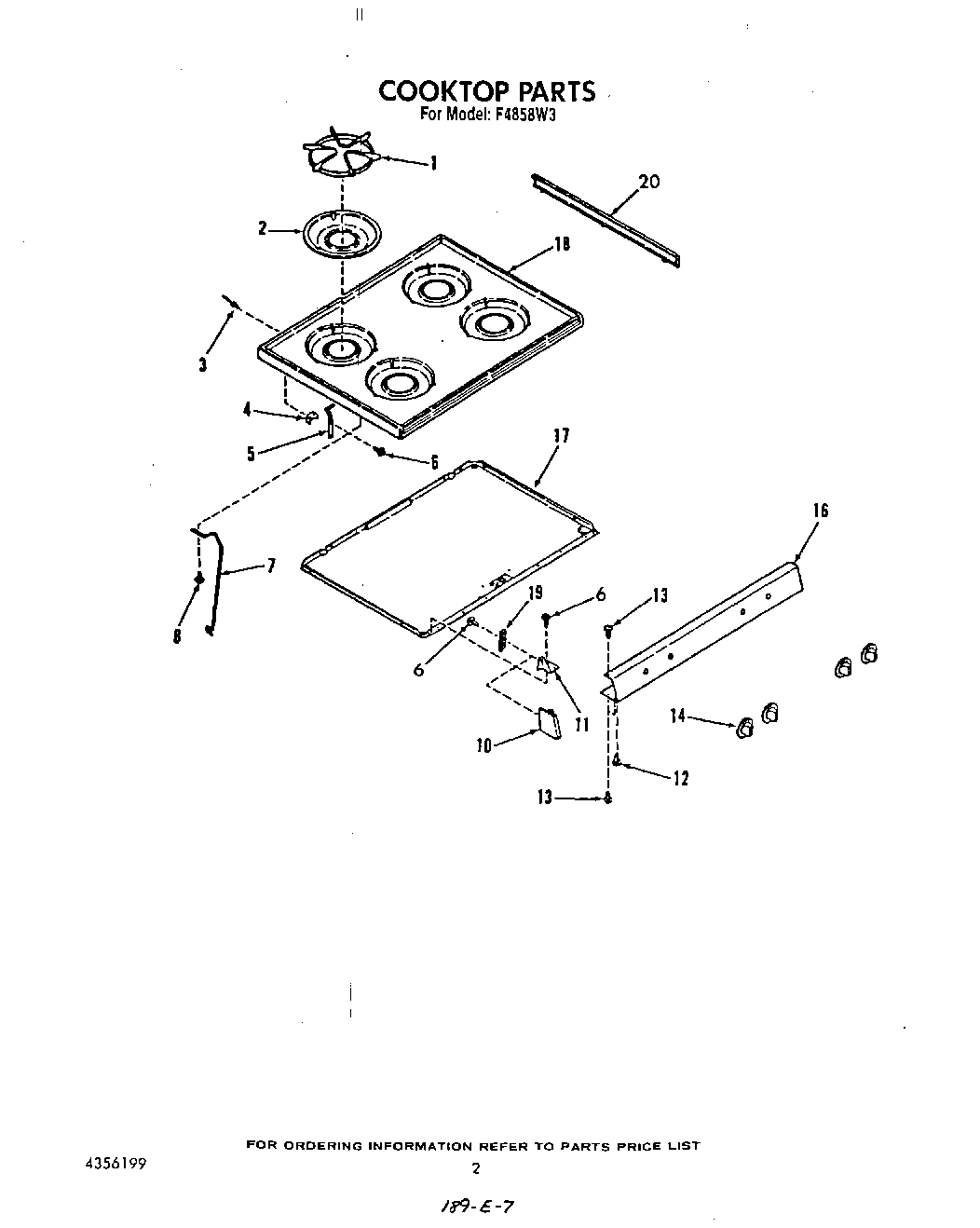

F4858W3 02 – COOK TOP

Products

Position	Product
1	Grate, Burner (4)
2	Pan, Aeration
3	Rivet
4	Bracket, Mounting
5	Hinge (Right)
5	Hinge (Left)
6	SCREW
7	Support Rod (2)
8	Screw 6-32×5/16
10	End Cap (Left)
10	End Cap (Right)
11	Bracket, Manifold (Right)
11	Bracket, Manifold (Left)
12	Screw, No.8-32 x 3/8
13	Screw No.6-20×3/8
14	Knob, Gas Valve (4)
16	Panel, Manifold
17	Bottom, Burner Box
18	Cooktop W/Trim (White)
18	Cooktop W/Trim (Almond)
19	Cleat
20	Trim (Left)
20	Trim (Right)
