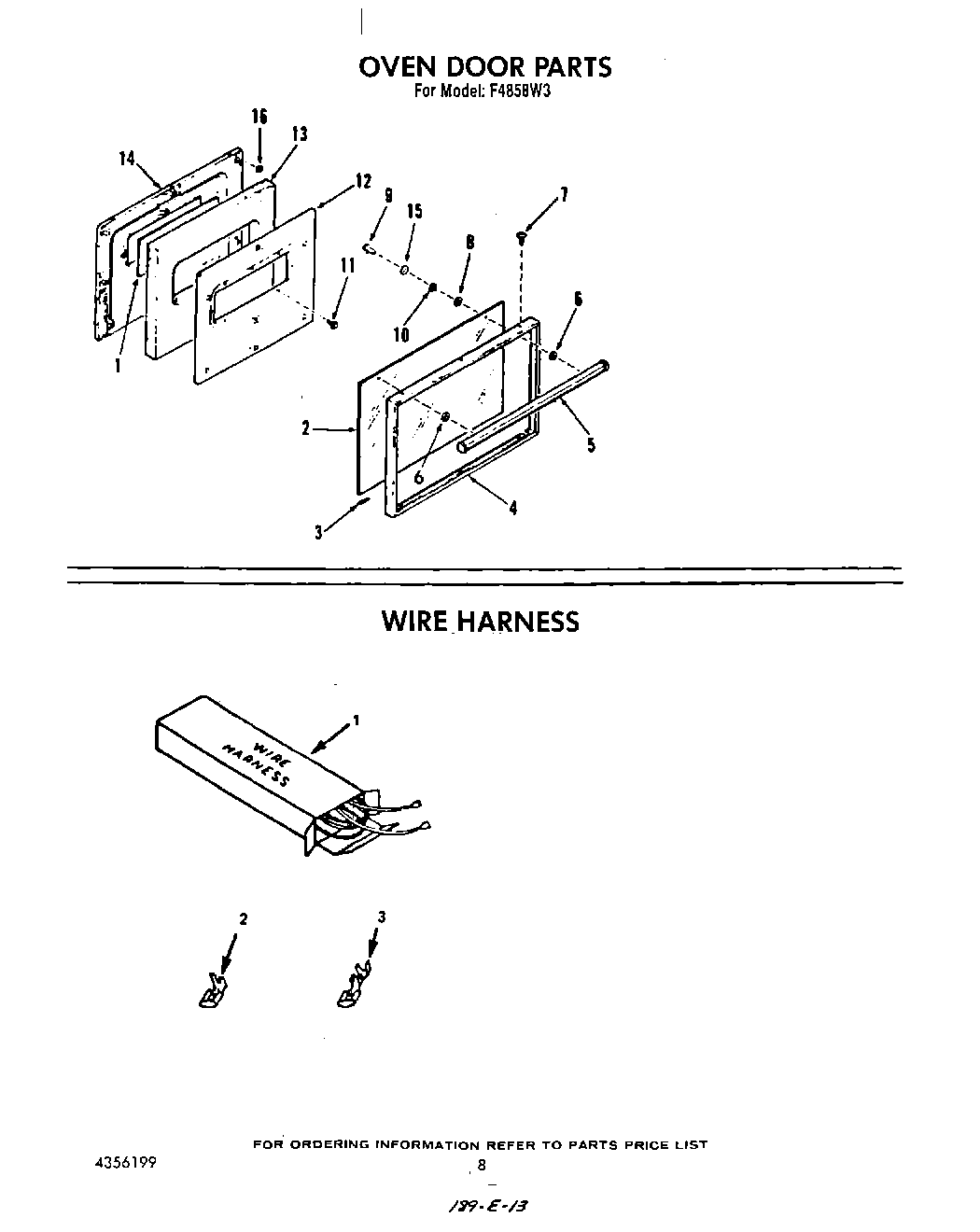

F4858W3 06 – OVEN DOOR , WIRE HARNESS

Products

Position	Product
A1	Wire Harness (Backguard)
A2	Flag Terminal
A3	Wire Harness (3/16“)
1	Wire Harness (Main)
1	Glass, Inner
1	Wire Harness (Switches)
2	Glass, Outer
3	Cushion
3	WP285432 Whirlpool Terminal
4	Frame
5	Handle, Door
6	Spacer, Dr. Handle
7	Screw
8	Washer, Fiber
9	Screw, No.10-32 x 3/4
10	Spacer, Glass Door
11	Screw, No.10-32×17/32“
12	Retainer
13	Insulation
14	Liner, Inner Door
15	Retainer
16	Washer, Felt
