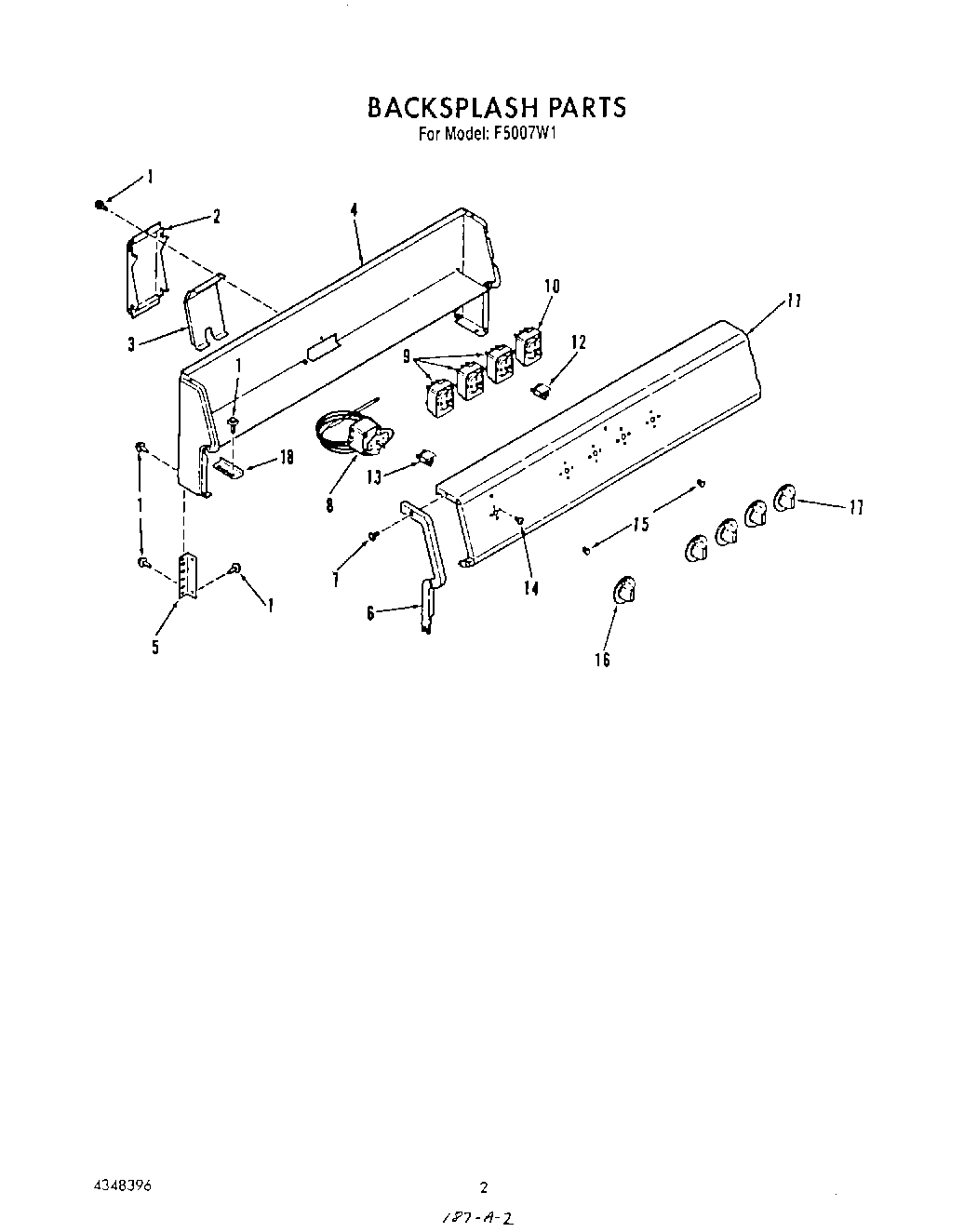

F5007^1 02 – BACKSPLASH , LIT/OPTIONAL

Products

Position	Product
1	SCREW
2	Raceway, Wire
3	Cover, Raceway
4	Backguard
5	Support, Backguard
6	End Cap (Left)
6	End Cap (Right)
7	Screw 6-20x3/8
8	Thermostat
9	W10900107 Whirlpool Oven Surface Element Switch
11	Panel, Control (Almond)
11	Panel, Control (Harvest Gold)
11	Panel, Control (White)
12	Indicator Light, (Surface Unit)
13	Indicator Light (Oven Unit)
14	Screw
15	WP9750343 Whirlpool Light Lens
16	Knob, Thermostat
17	Knob, Infinite
18	Cleat
