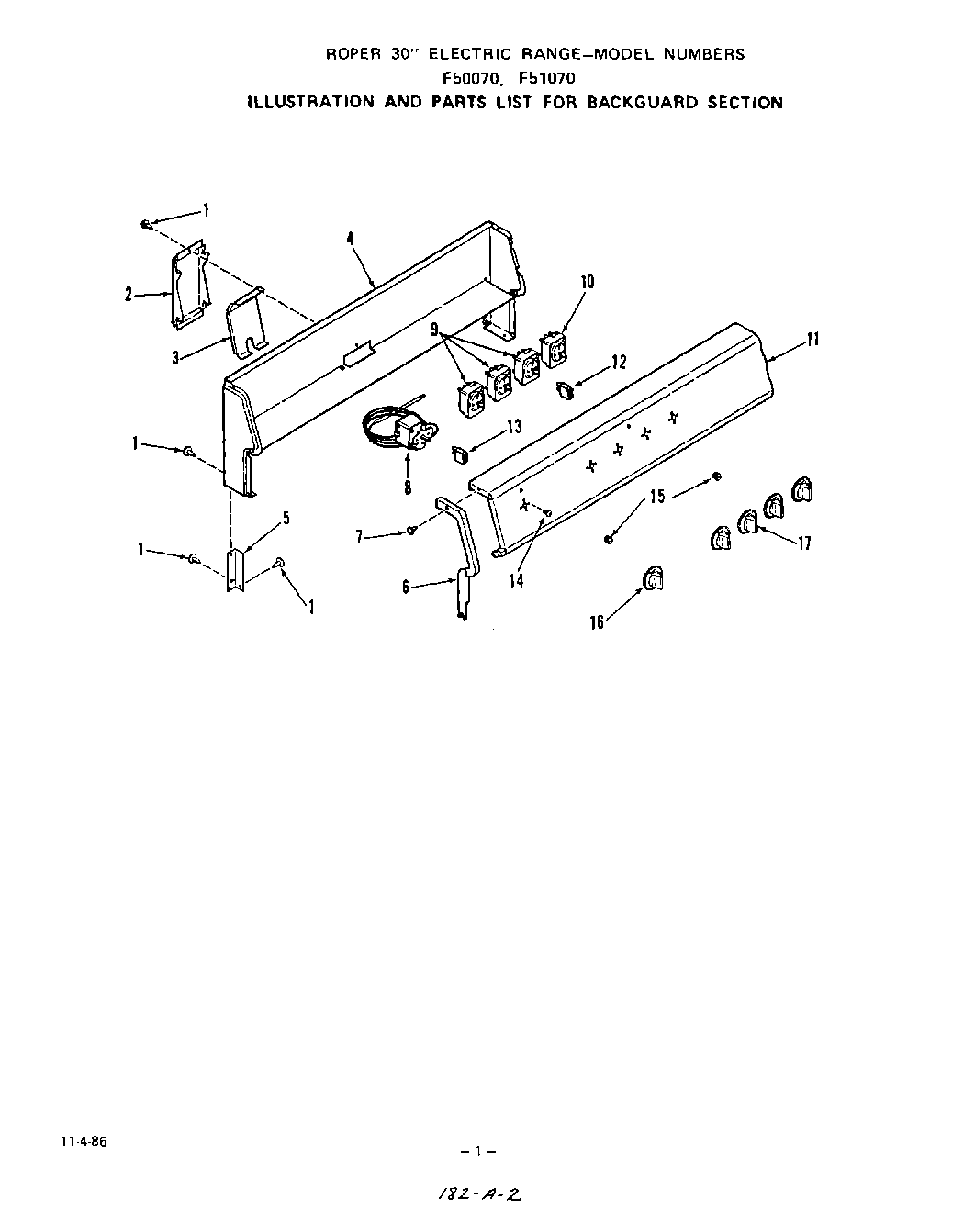

| 1 | Screw 10-16x7/16`` |
| 2 | Wire Raceway |
| 3 | Raceway Cover |
| 4 | Backguard Body |
| 5 | Backguard Support |
| 5 | Left |
| 5 | Right |
| 6 | End Cap |
| 6 | End Cap (Left) |
| 6 | End Cap (Right) |
| 7 | Screw 6-20x3/8`` |
| 8 | Thermostat |
| 9 | Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.) |
| 10 | Infinite Switch (Rt. Front) |
| 11 | White |
| 11 | Control Panel |
| 11 | Almond |
| 12 | Light-Indicator |
| 13 | Light-Indicator (Surface) |
| 14 | WPL 78565 |
| 15 | Lens-Indicator Light |
| 16 | Thermostat Knob |
| 17 | Infinite Knob |
