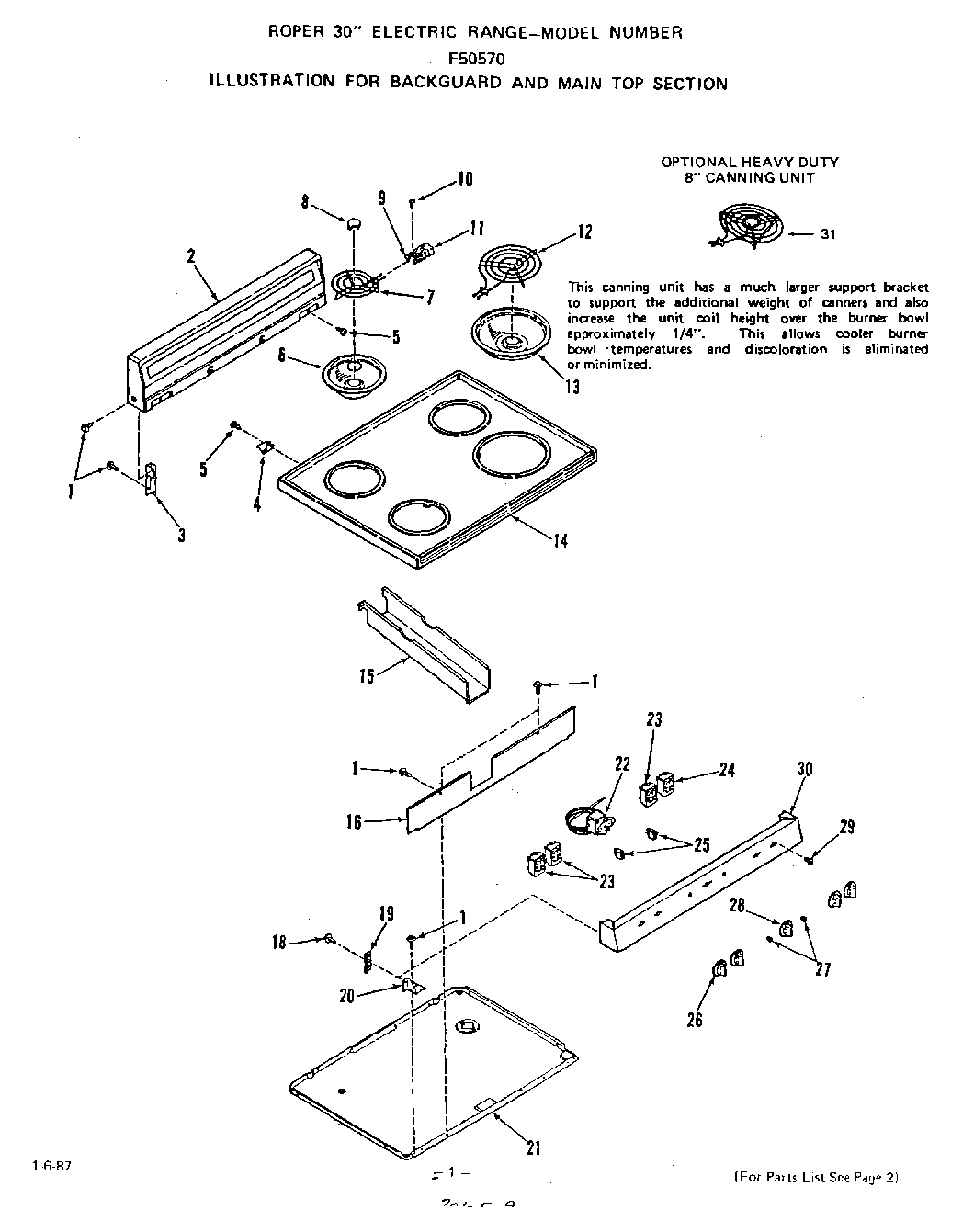

F5057^0 02 – BACKGUARD AND MAIN TOP

Products

Position	Product
1	Screw 10-16×7/16“
2	Backguard Panel (Black)
2	Backguard Panel (Almond)
2	Backguard Panel (White)
3	Support-Backguard (Left)
3	Support-Backguard (Right)
4	Retainer-Main Top (2 Required)
5	Screw-10-32×1/2“
6	6“ Burner Bowl (1 Req) All 2101 Models
7	6“ Surface Unit (Lt. Front & Rt. Rear)
8	Medallion (4 Required)
9	Bracket-Term. Block (2 Req) All 2101 Mod.
10	Screw 7-32×5/16“(2 Req) All 2101 Models
11	Term. Block w/Leads-All 2101 Models
12	8“ Surface Unit (Rt. Front & Lt. Rear)
13	8“ Burner Bowl (1 Req) All 2101 Models
14	Main Top (White)
14	Main Top (Almond)
14	Main Top (Chrome)
15	Wire Cover-Main Top
16	Wire Cover-Controls
18	Screw 10-32×17/32“
19	Cleat
20	Manifold Panel Bracket (Left)
20	Manifold Panel Bracket
20	Manifold Panel Bracket (Right)
21	Burner Box Bottom
22	Thermostat
23	Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
24	Infinite Switch (Rt. Front)
25	Light-Indicator (Surface)
26	Infinite Knob
27	Lens-Indicator Light
28	Thermostat Knob
29	WPL 78565
30	White
30	Almond
30	Black
30	Manifold Panel
31	Optional Heavy Duty 8“ Canning Unit (240 Volt)
31	WPY04100165 Whirlpool Surface Element
31	Optional 8“ Canning Element
