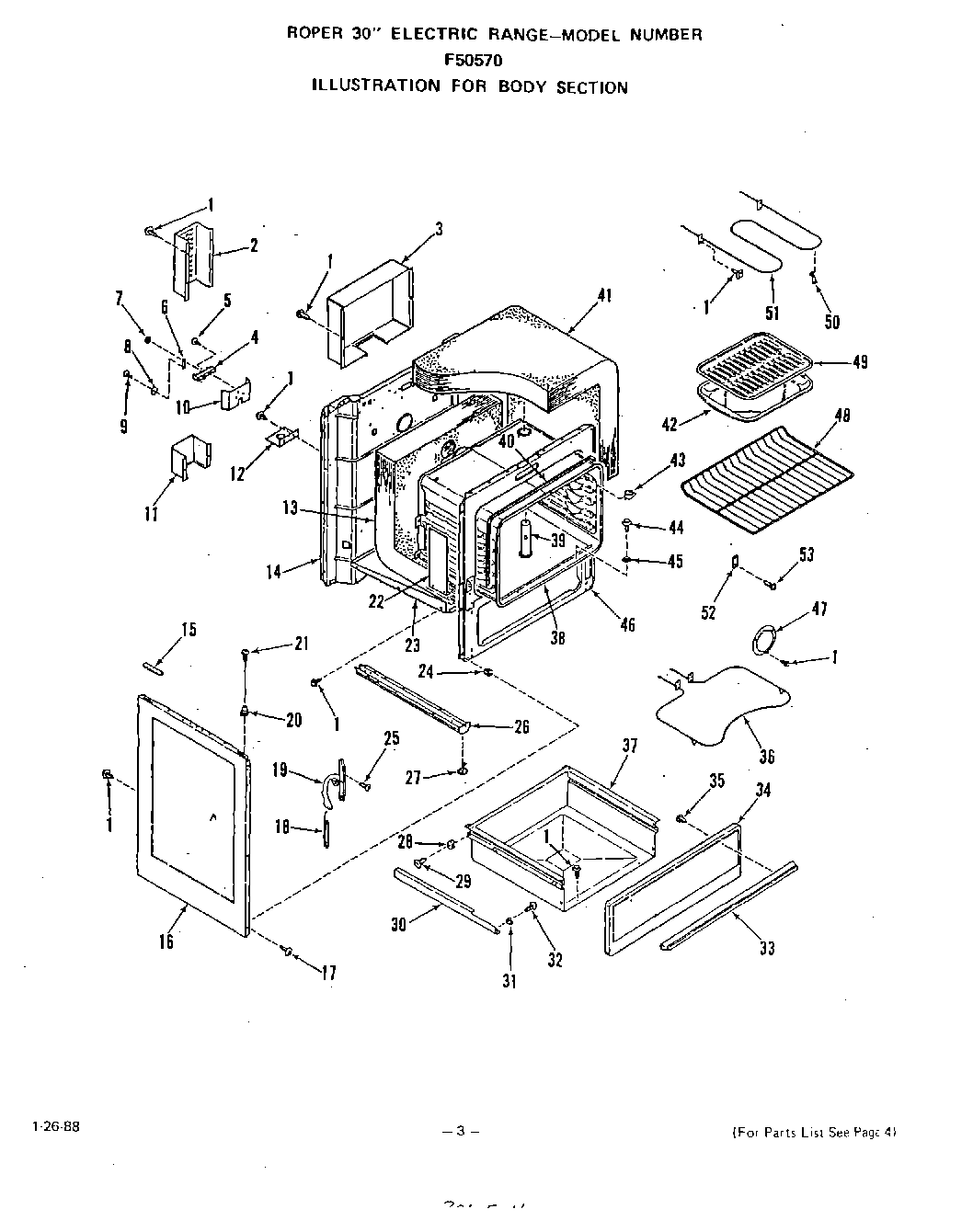

F5057^0 03 – BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Shield-Upper Wire
3	WPL 326495
4	Junction Block
5	Screw 10-32×1“
6	Ground Strap
7	Hex Nut 10-32
8	Washer
9	Screw 10-32×7/16“
10	Insulation-Service Cord
11	Wire Shield-Lower
12	Range Service Mounting Plate
13	Insulation-Oven Back & Bottom (1 Piece)
14	Main Back
15	Spacer-Main Top (2 Req)
16	Black
16	Almond
16	White
16	Body Side (Lt. or Rt.)
17	Screw 8ABx5/8“
18	Spring-Oven Door (Lt. or Rt.)
19	Left
19	Right
19	Oven Door Hinge
20	Strike
21	Screw 6-32×7/8“
22	WPL 328984
23	window, oven door
24	BURNER RECEPTACLE KIT
25	Screw
26	Base w/Levelers-Lt. or Rt.
27	Leg Leveler (4 Req)
28	Rear Slide Block – Lt. or Rt.
29	Screw 8 – 32 x 3/8“
30	Support-Storage Drawer (Lt. or Rt.)
31	Front Slide Block-(Lt. or Rt.)
32	Screw 10-32×17/32“
33	Handle
34	Storage Drawer Panel
34	White
34	Black
34	Almond
35	WPL 295850
36	Bake Element
36	240 Volt
36	208 Volt
37	Storage Drawer
38	Oven Body
39	Vent Tube
40	Seal-Oven Door
41	Insulation-Oven Top & Sides (1 Piece)
42	WPL 331592
43	Clip-Thermostat Bulb (2 Req)
44	Screw 10ABx1/2“
45	WPL 21067
46	Front Frame
47	WPL 326935
48	WPL 326068
49	WPL 326297
50	Support-Broil Element
51	WPL 334369
51	Broil Element
51	WPL 334368
52	Cover Plate
53	Screw 6-20×3/8“
