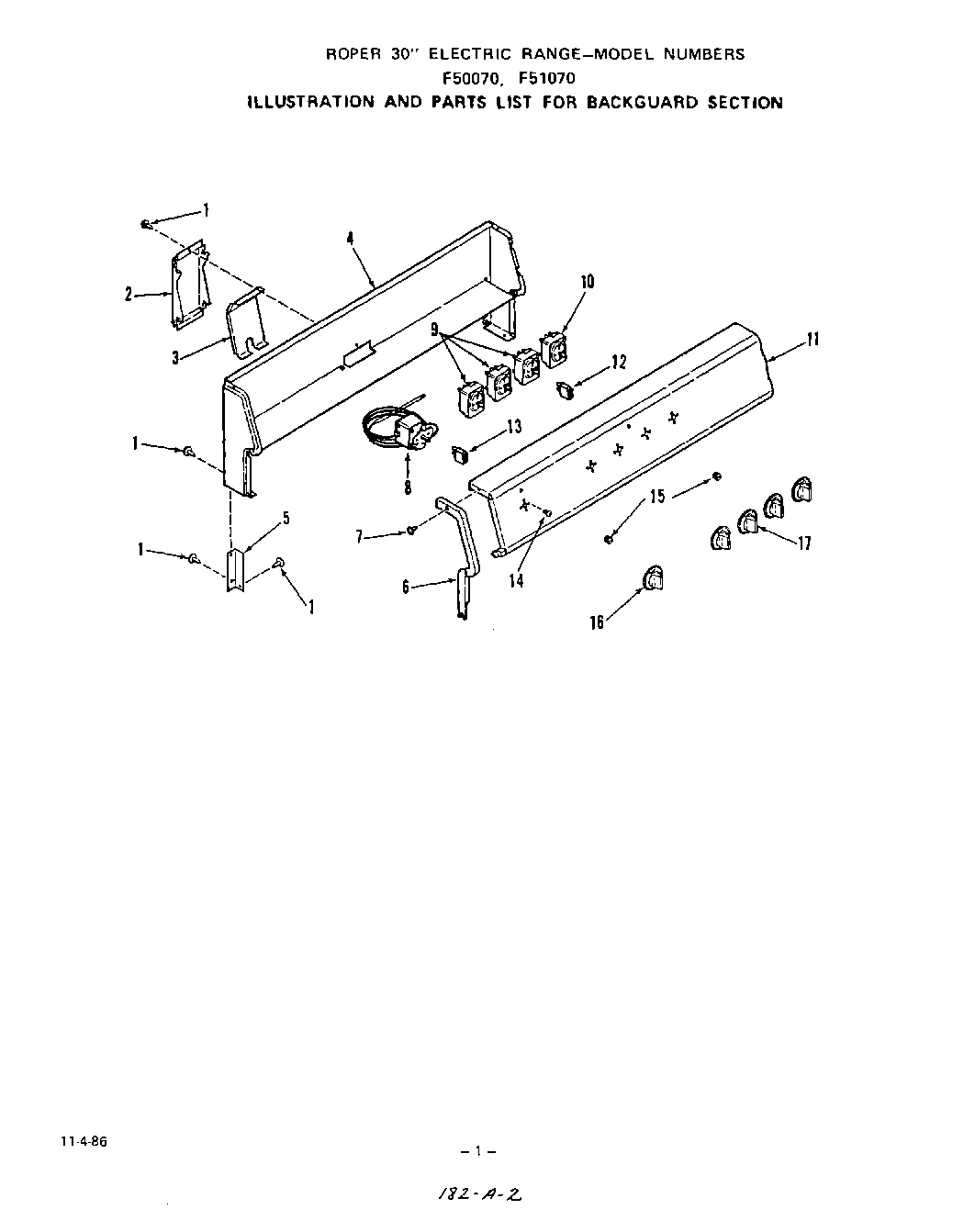

F5107W0 02 – BACKGUARD

Products

Position	Product
1	Screw 10-16×7/16“
2	Wire Raceway
3	Raceway Cover
4	Backguard Body
5	Left
5	Right
5	Backguard Support
6	End Cap (Right)
6	End Cap (Left)
6	End Cap
7	Screw 6-20×3/8“
8	Thermostat
9	Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
10	Infinite Switch (Rt. Front)
11	Control Panel
11	Almond
11	White
12	Light-Indicator
13	Light-Indicator (Surface)
14	WPL 78565
15	Lens-Indicator Light
16	Thermostat Knob
17	Infinite Knob
