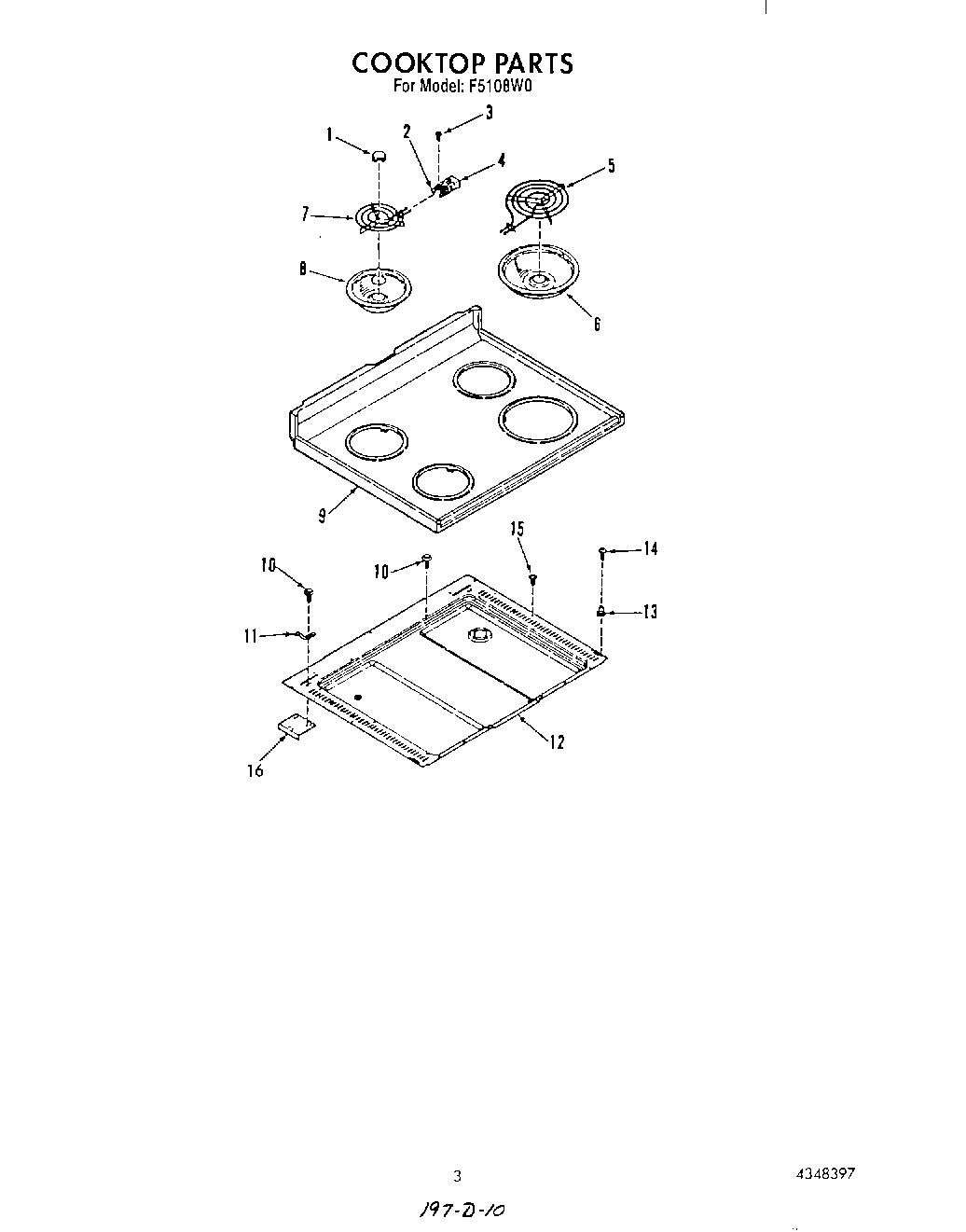

F5108G0 03 – COOK TOP

Products

Position	Product
1	Medallion (2)
2	WP4332752 Whirlpool Clip
3	Screw, No.7-32 x 5/16
4	BURNER RECEPTACLE KIT
5	WP660533 Whirlpool Oven 8" Surface Element
6	DRIP BOWL 8" W/HOLE CHROME
7	WPY04100165 Whirlpool Surface Element
8	WPW10196406 Whirlpool 6" Chrome Drip Bowl
9	Cooktop (Almond)
9	Cooktop (White)
9	Cooktop (Harvest Gold)
10	SCREW
11	Hinge-Main Cooktop (Left)
11	Hinge-Main Cooktop (Right)
12	Bottom, Burner Box
13	Strike
14	Screw No.6-32×7/8
15	Screw
16	Support Plate
