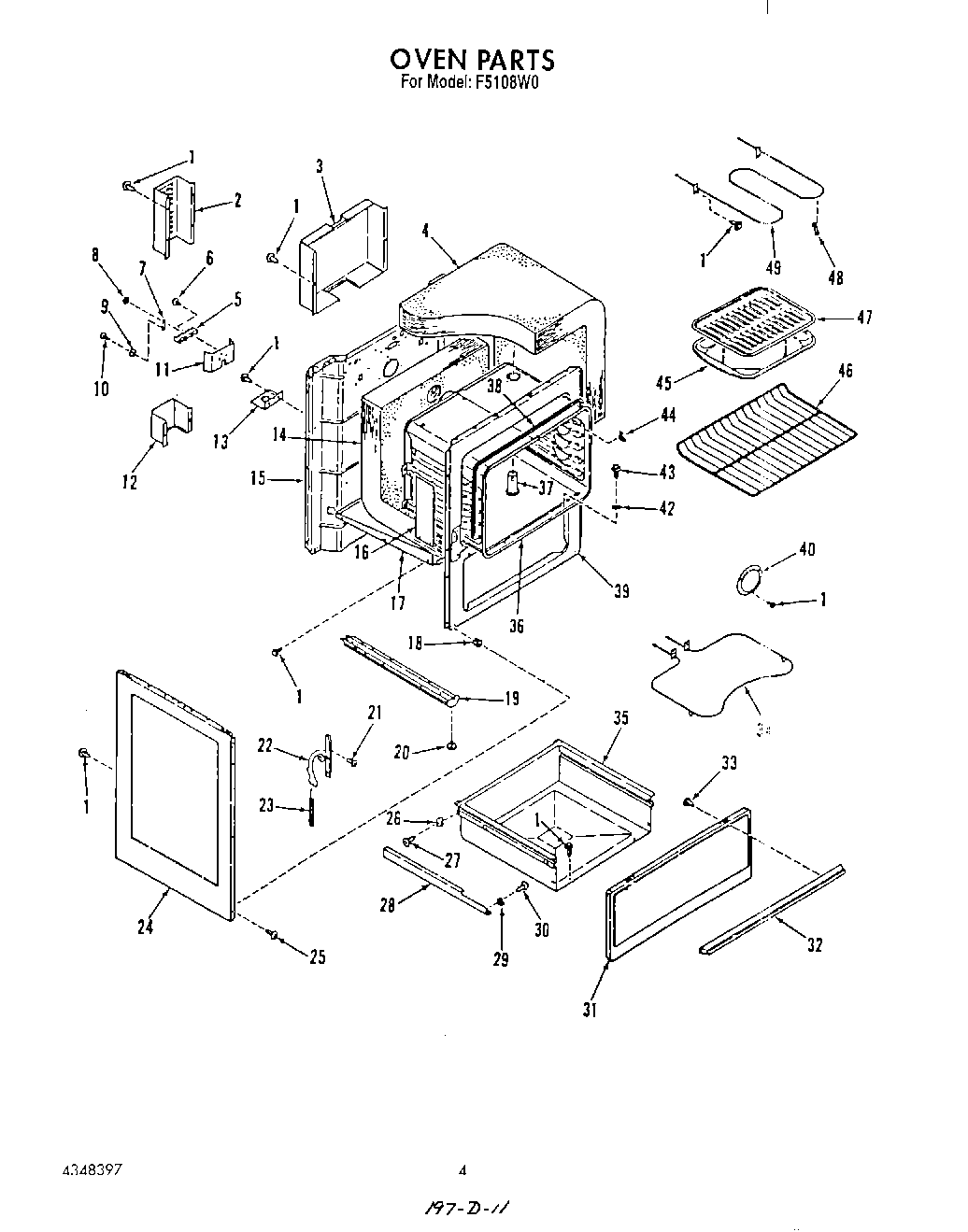

F5108G0 04 – OVEN

F5108G0 04 – OVEN

Written by

in

F5108G0 04 – OVEN

Products

PositionProduct
1SCREW
2Wire Shield, Upper
3Shield, Wire
4Insulation, Wrap
5WP8203546 Whirlpool Terminal Block
6Screw, No.10-32×1
7Strap, Ground
8Nut, Hex 10-32
9Washer
10Screw No.10-32×7/16
11Insulation, Service Cord
12Wire Cover, Lower
13Service Plate
14Insulation, Back And Bottom
15Rear Cover
16Retainer, Insul., (Lt/Rt)
17Retainer, Insulation, Bottom
18Nut-Expansion (6)
19Base, W/ Levelers (2)
20Levelers, Leg (4)
21Screw
22Hinge, Oven Door (Right)
22Hinge, Oven Door (Left)
23Spring, Oven Door (Lt/Rt)
24Side Panel (Lt/Rt) (Harvest Gold)
24Side Panel (Lt/Rt) (White)
24Side Panel (Lt/Rt) (Almond)
25Screw No.8×5/8
26Rear Slide Block (Lt/Rt)
27Screw, No.8-32 x 3/8
28Support, (Lt/Rt), Storage Drawer
29Front Slide Block, Lt/Rt
30Screw, No.10-32 x 17/32
31Front Panel-Stor. (Harvest Gold)
31Front Panel, Storage Drawer (White)
31Front Panel, Storage Drawer (Almond)
32Handle
33W10850756 Whirlpool Screw
34Bake Element (208 Volt (Opt))
34Element, Bake (240 Volt)
35Drawer, Storage
36Oven Cavity
37Tube, Vent
38Seal, Oven Door
39Frame, Front
40Cover
42Washer
43WP308685 Whirlpool Microwave Screw
44Clip
46Rack, Oven (2)
474396923 Whirlpool Broil Pan Set Gray Porcelain
48Support, Broil Element
49WP4334925 Whirlpool Broil Element
