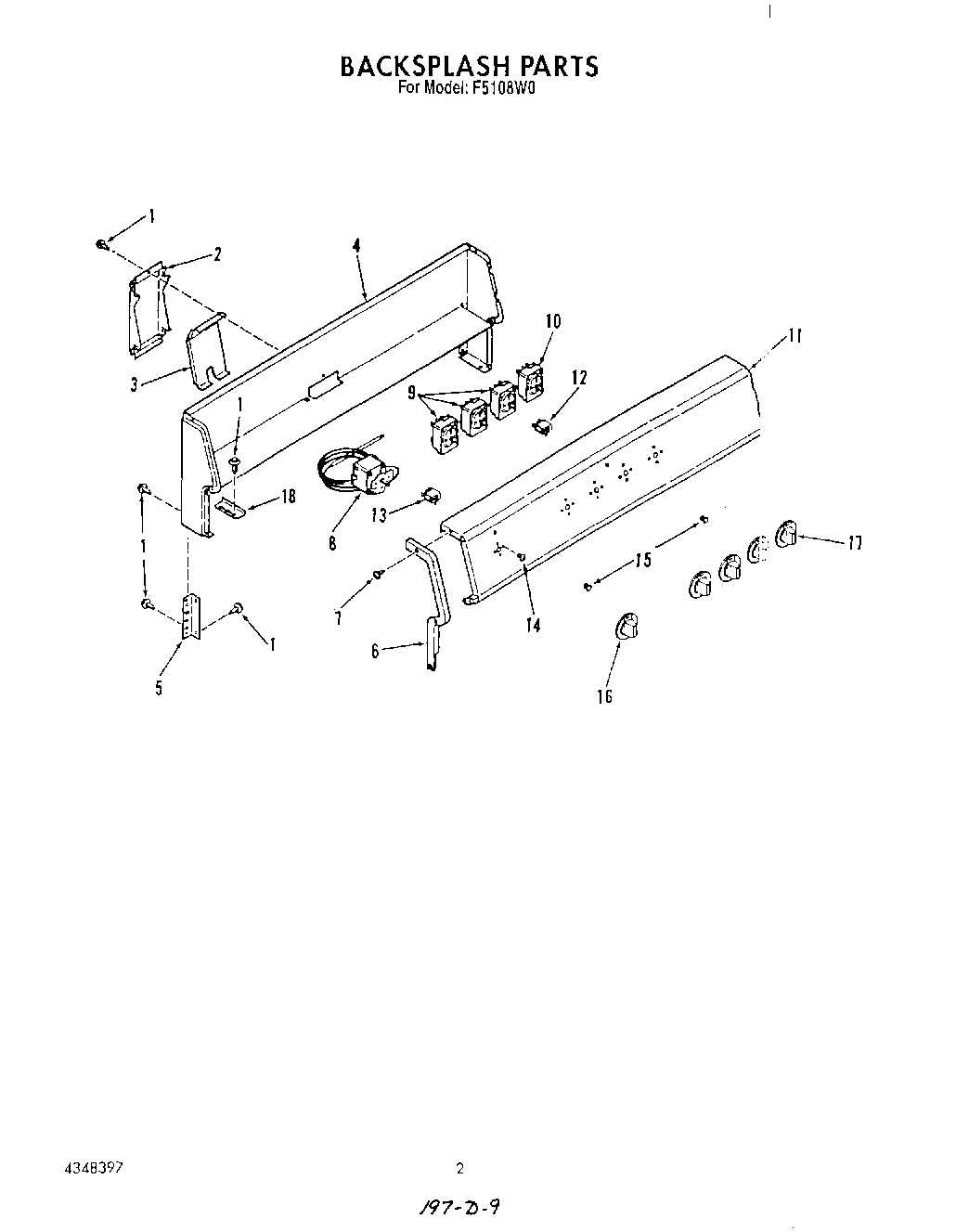

F5108W0 02 – BACKSPLASH , LIT/OPTIONAL
Written by
in
F5108W0 02 – BACKSPLASH , LIT/OPTIONAL
Products
Position
Product
1
SCREW
2
Raceway, Wire
3
Cover, Raceway
4
Backguard
5
Support, Backguard
6
End Cap (Left)
6
End Cap (Right)
7
Screw 6-20×3/8
8
Thermostat
9
W10900107 Whirlpool Oven Surface Element Switch
11
Panel, Control (Almond)
11
Panel, Control (Harvest Gold)
11
Panel, Control (White)
12
Indicator Light, (Surface Unit)
13
Indicator Light (Oven Unit)
14
Screw
15
WP9750343 Whirlpool Light Lens
16
Knob, Thermostat
17
Knob, Infinite
18
Cleat
←
