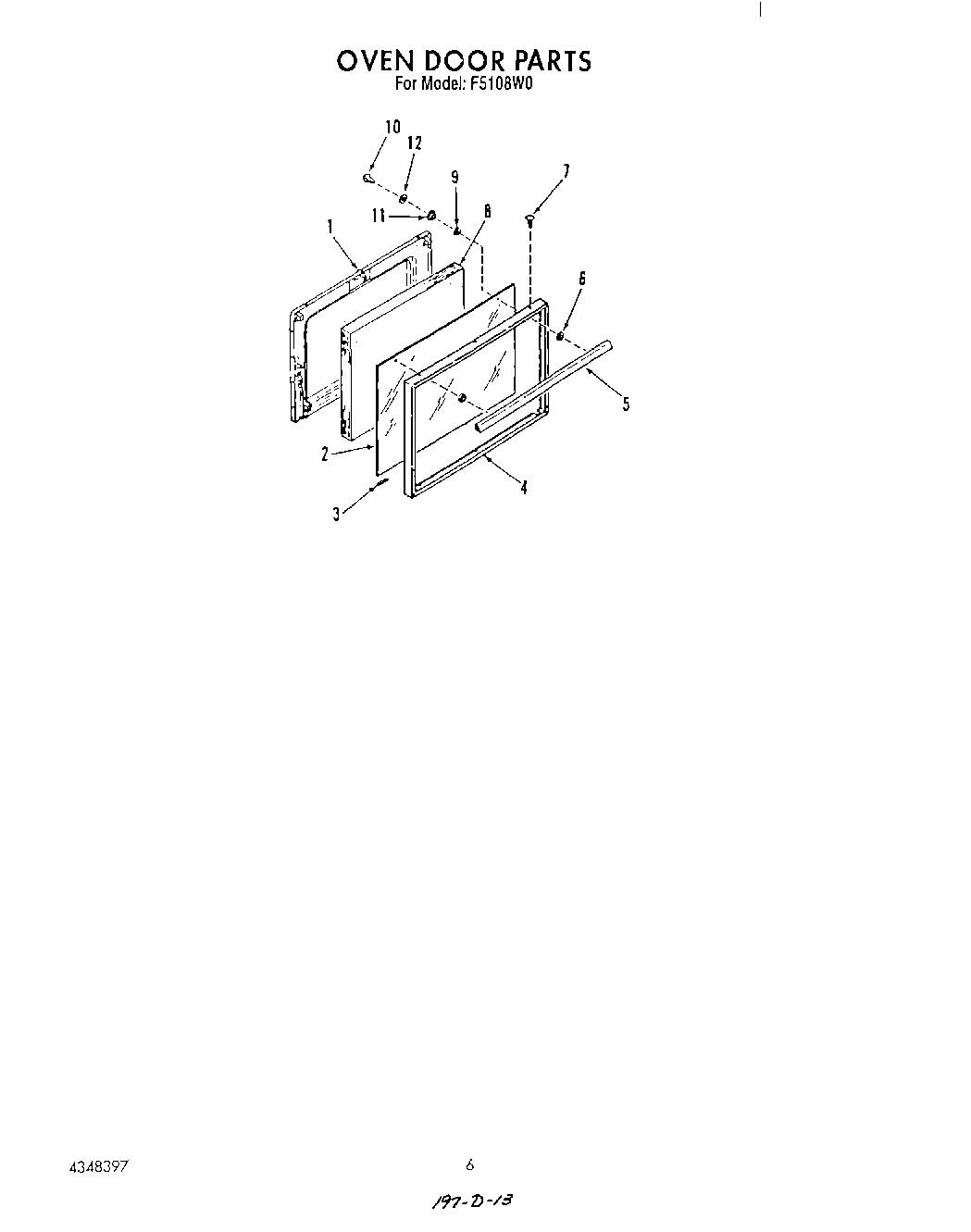

F5108W0 05 – OVEN DOOR

Written by

Products

Position	Product
1	Lining, Oven Door
2	Glass, Outer
3	Cushion
4	Frame
5	Handle
6	Spacer, Dr. Handle
7	Screw
8	Insulation, Door
9	Washer, Fiber
10	WP999367 Whirlpool Refrigerator Screw
11	Spacer, Glass Door
12	Eyelet Terminal
12	Flag Terminal
12	Wire Harness (3/16“)
12	Washer
12	WP285432 Whirlpool Terminal
12	BURNER RECEPTACLE KIT
