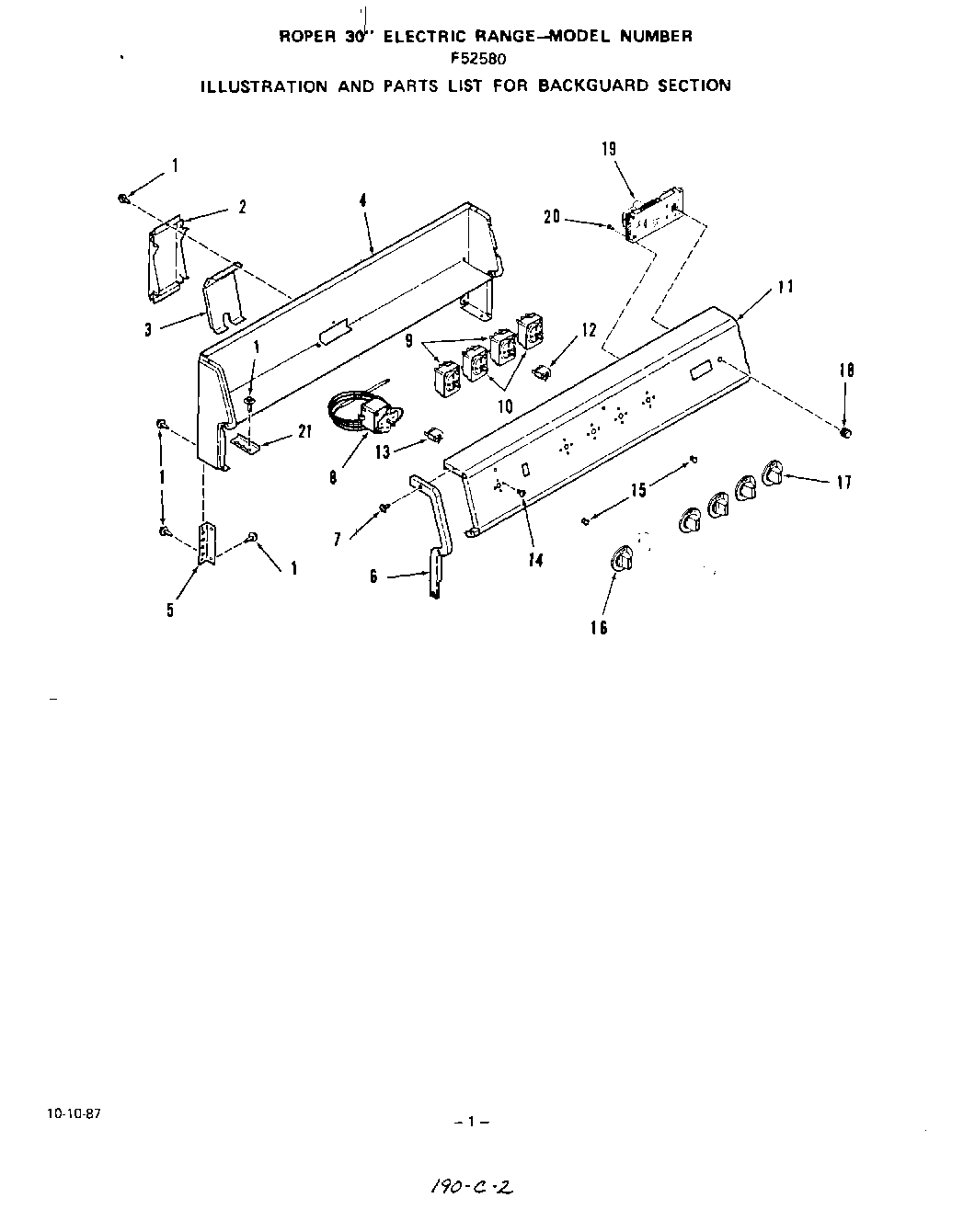

F5258^0 02 – BACKGUARD , LIT/OPTIONAL

Products

Position	Product
1	Screw 10-16×7/16“
2	Wire Raceway
3	Raceway Cover
4	Backguard Body
5	Right
6	End Cap (Left)
6	End Cap (Right)
7	Screw 6-20×3/8“
8	Thermostat
9	Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
10	Infinite Switch (Rt. Front)
11	Control Panel (Almond)
11	Control Panel (White)
12	Light-Indicator
13	Light-Indicator (Surface)
14	WPL 78565
15	Lens-Indicator Light
16	Thermostat Knob
17	Infinite Knob
18	Clock Knob
19	Clock
20	Screw 6-32×5/16“
21	Body Side Cleat
