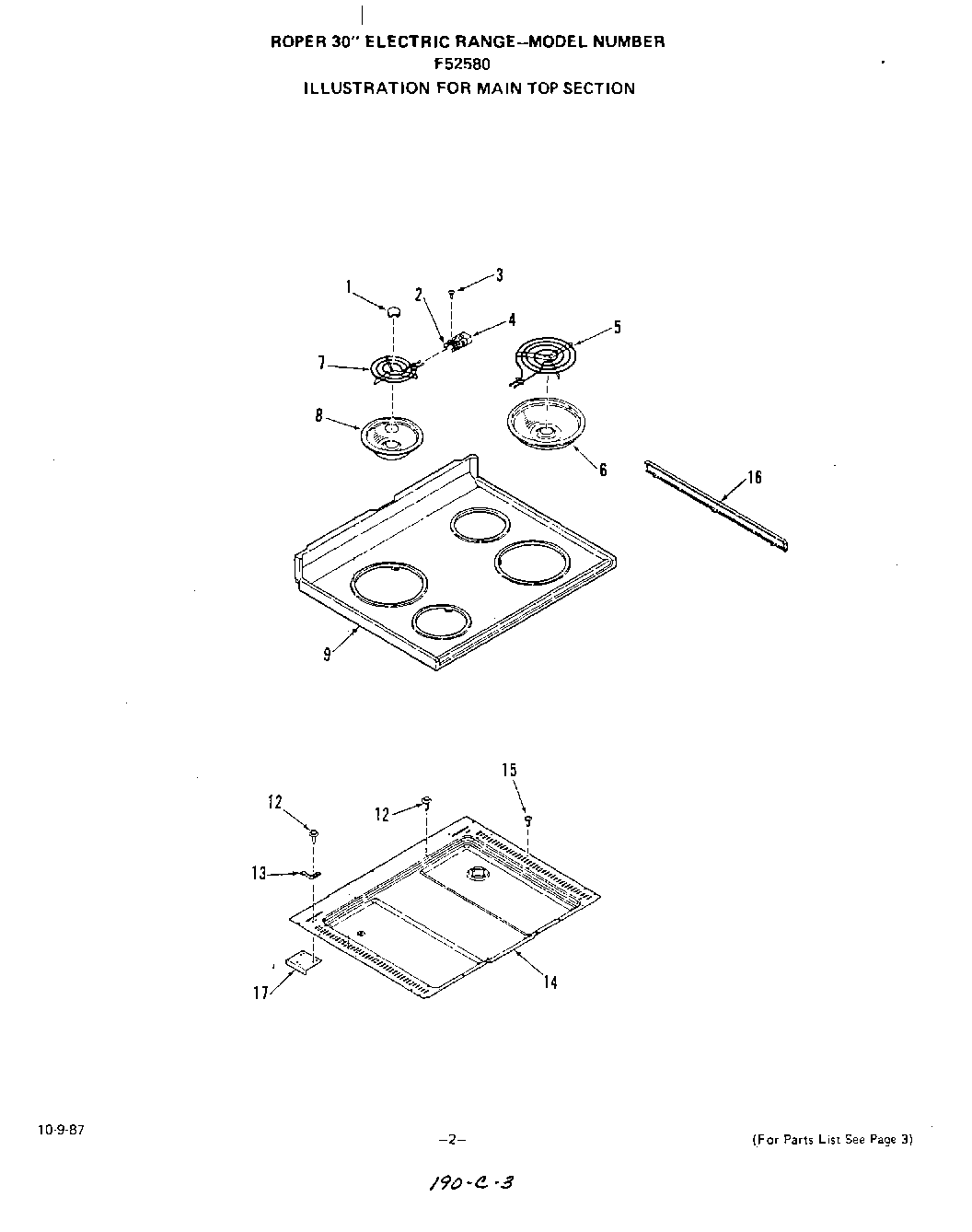

F5258^0 03 – MAIN TOP

Products

Position	Product
1	Medallion (2 Req) All 2101 Models
2	Bracket-Term. Block (2 Req) All 2101 Mod.
3	Screw 7-32×5/16“(2 Req) All 2101 Models
4	Term. Block w/Leads-All 2101 Models
5	8“ Surface Unit (Rt. Front & Lt. Rear)
6	8“ Burner Bowl (1 Req) All 2101 Models
7	6“ Surface Unit (Lt. Front & Rt. Rear)
8	6“ Burner Bowl (1 Req) All 2101 Models
9	Almond
9	White
10	Screw 6-32 x 5/16“
11	Support Rod-Main Top (2 Req)
12	Screw 10-16×7/16“
13	Right
13	Left
14	Burner Box Bottom
15	Screw 10-16×1/2“
16	Reinforcement Plate (2 Req)
