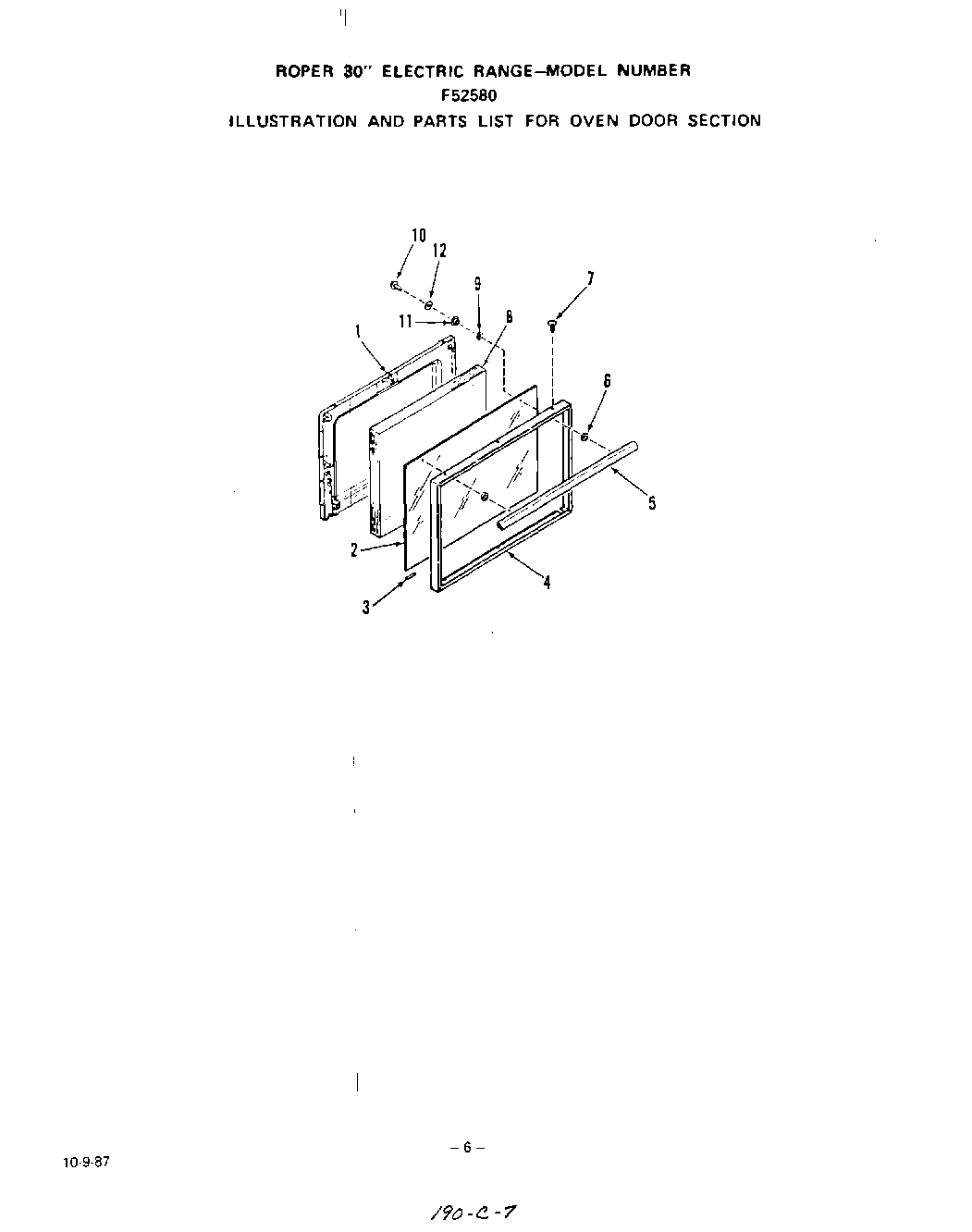

F5258W0 05 – OVEN DOOR
Products
| Position | Product |
|---|---|
| 1 | 22041A & 2A Models |
| 2 | Outer Glass-Oven Door |
| 3 | Cushion-Door Glass |
| 4 | Frame-Oven Door |
| 5 | Handle |
| 6 | Spacer |
| 7 | Screw |
| 8 | Insulation |
| 9 | Washer |
| 10 | Screw 10-32x3/4`` |
| 11 | Spacer-Glass |
| 12 | Washer |
F5258W0 05 – OVEN DOOR
| Position | Product |
|---|---|
| 1 | 22041A & 2A Models |
| 2 | Outer Glass-Oven Door |
| 3 | Cushion-Door Glass |
| 4 | Frame-Oven Door |
| 5 | Handle |
| 6 | Spacer |
| 7 | Screw |
| 8 | Insulation |
| 9 | Washer |
| 10 | Screw 10-32x3/4`` |
| 11 | Spacer-Glass |
| 12 | Washer |
