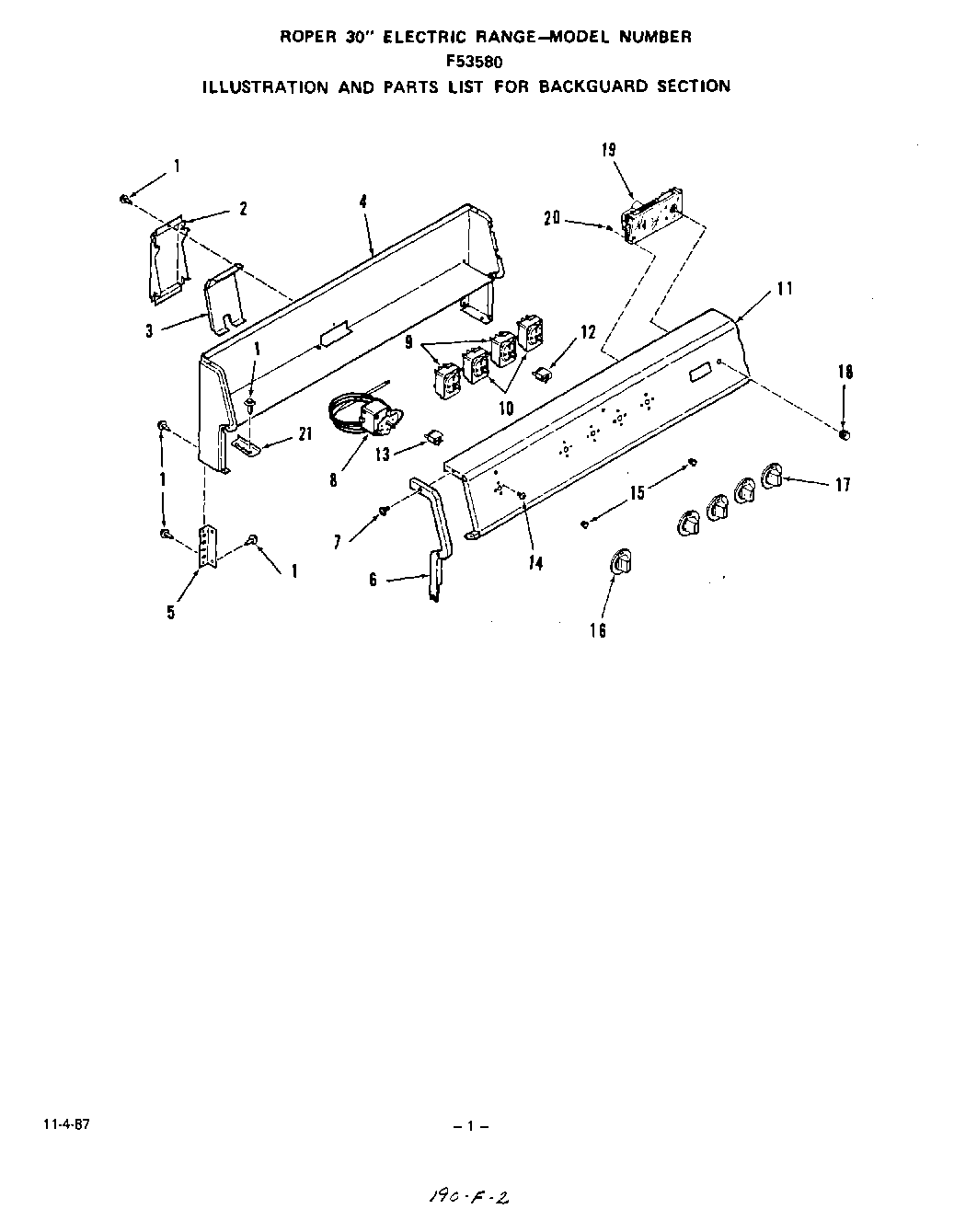

F5358^0 02 – BACKGUARD , LIT/OPTIONAL

F5358^0 02 – BACKGUARD , LIT/OPTIONAL

Written by

in

F5358^0 02 – BACKGUARD , LIT/OPTIONAL

Products

PositionProduct
Clock Lens
1Screw 10-16×7/16“
2Wire Raceway
3Raceway Cover
4Backguard Body
5Right
6End Cap (Left)
6End Cap (Right)
7Screw
8Thermostat
9Infinite Switch (Lt. Front or Rt. Rear)
10Infinite Switch (Rt. Front)
11Control Panel (Almond)
11Control Panel (White)
12Light-Indicator
13Light-Indicator (Surface)
14WPL 78565
15Lens-Indicator Light
16Thermostat Knob
17Infinite Knob
18Clock Knob
19Clock w/Lens
20Screw 6-32×5/16“
21Body Side Cleat
