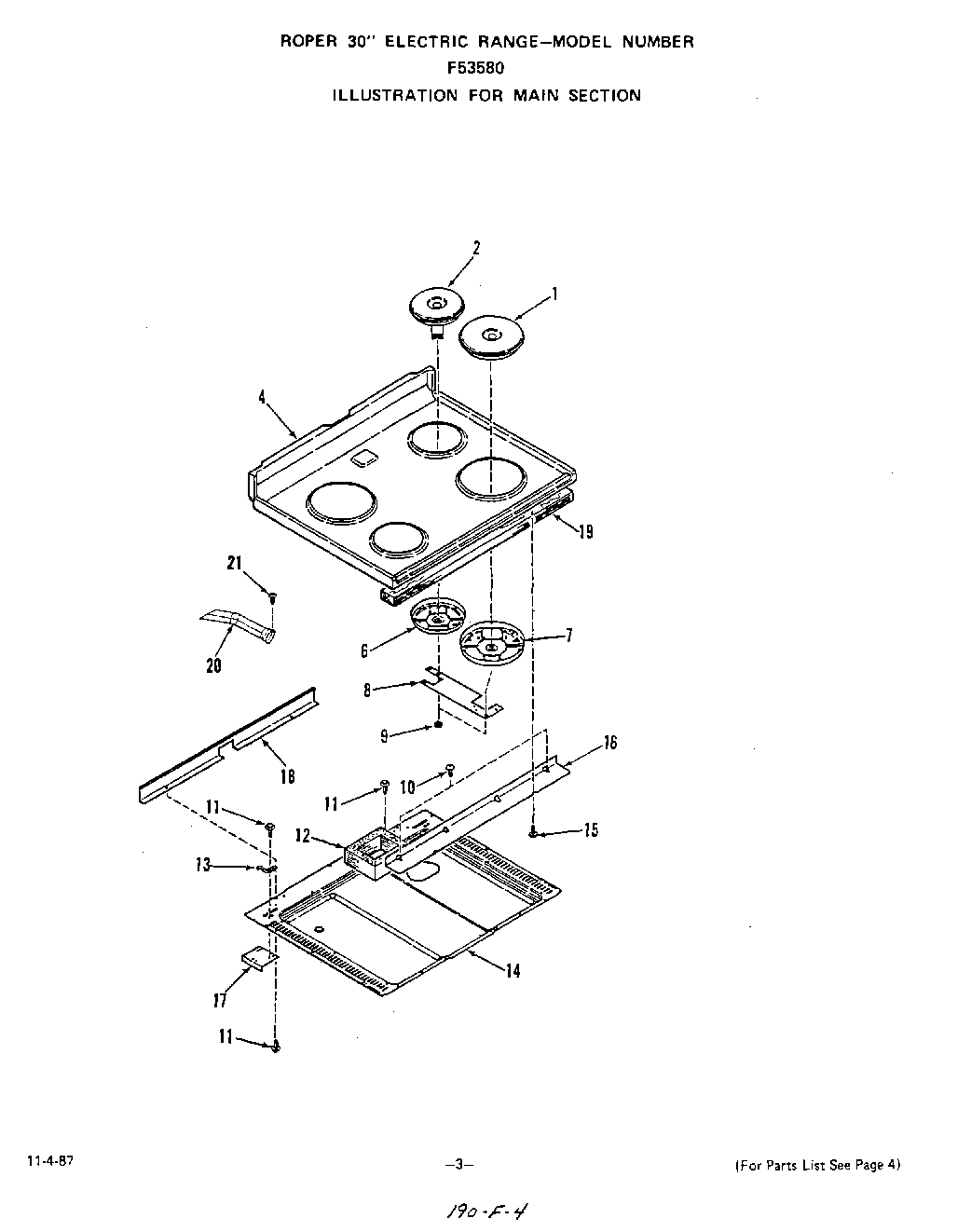

F5358L0 04 – MAIN SECTION – Aparts

F5358L0 04 – MAIN SECTION

Products

Position	Product
1	Element-Hob (Small)
2	Element-Hob (Large)
4	Main Top (Almond)
4	Main Top (White)
6	Clamp-Hob Element (Large)
7	Clamp-Hob Element (Small)
8	Brace
9	Mounting Nut (2 Req)
10	Screw-10-32x1/2``
11	Screw 10-16x7/16``
12	Vent Seal
13	Left
13	Right
14	Burner Box Bottom
15	Screw 8ABx5/8``
16	Cover Plate
17	Reinforcement Plate (2 Req)
18	Burner Box Baffle
19	Insulation
20	Vent Tube Extension
21	Screw 10ABx1/2``
