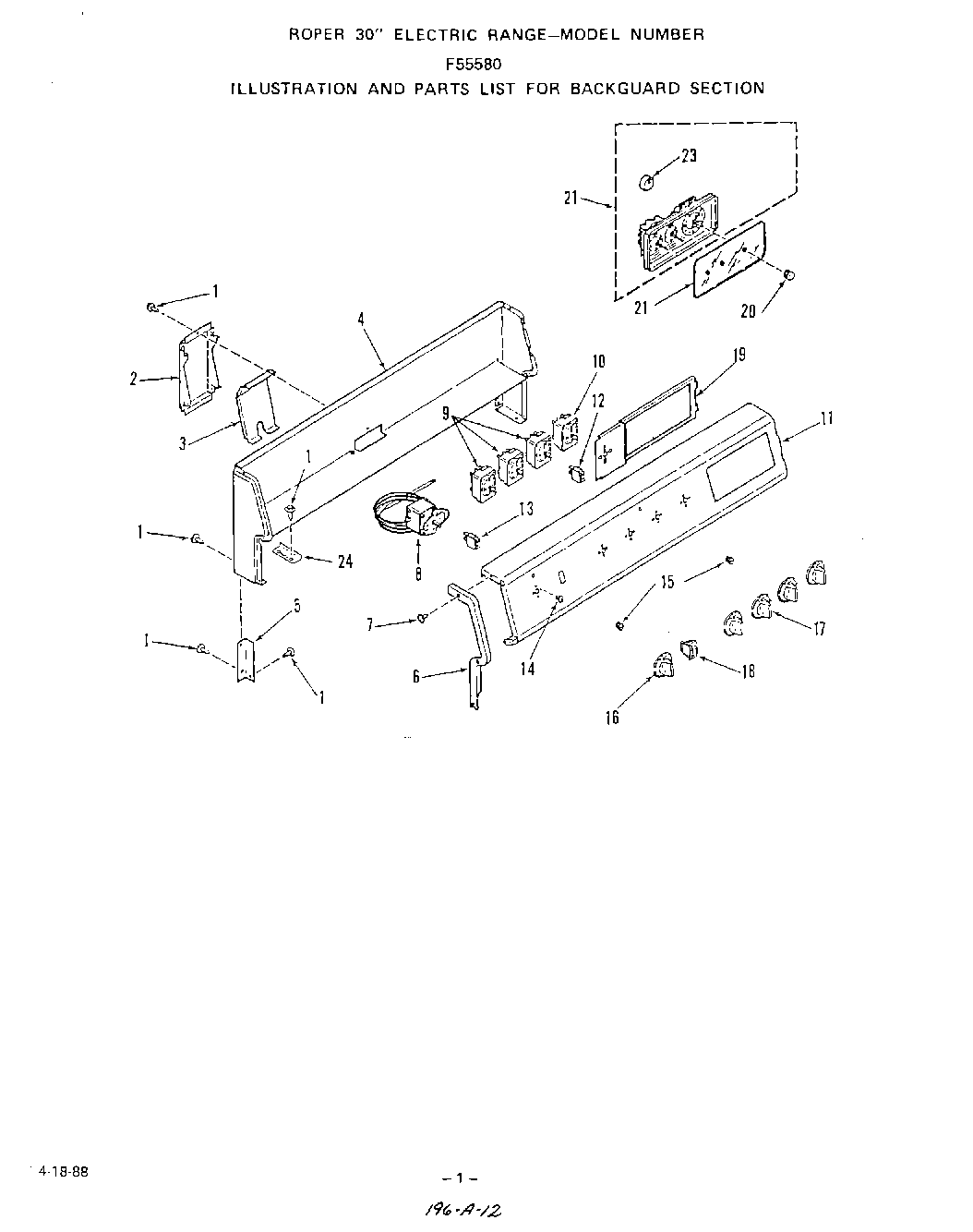

F5558W0 02 – BACKGUARD

Products

Position	Product
1	Screw 10-16×7/16“
2	Wire Raceway
3	Raceway Cover
4	Backguard Body
5	Right
5	Left
6	End Cap (Right)
6	End Cap (Left)
7	Screw 6-20×3/8“
8	Thermostat
9	Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
10	Infinite Switch (Rt. Front)
11	Control Panel (Almond)
11	Control Panel (White)
12	Light-Indicator
13	Light-Indicator (Surface)
14	WPL 78565
15	Lens-Indicator Light
16	Thermostat Knob
17	Infinite Knob
18	Switch-Oven Light
19	Clock Bracket
20	Clock Knob
21	Clock Glass
22	Clock Motor
22	Clock Motor (50 Cycle (Optional))
23	Clock (60 Cycle)
23	Clock (50 Cycle)
24	Body Side Cleat
