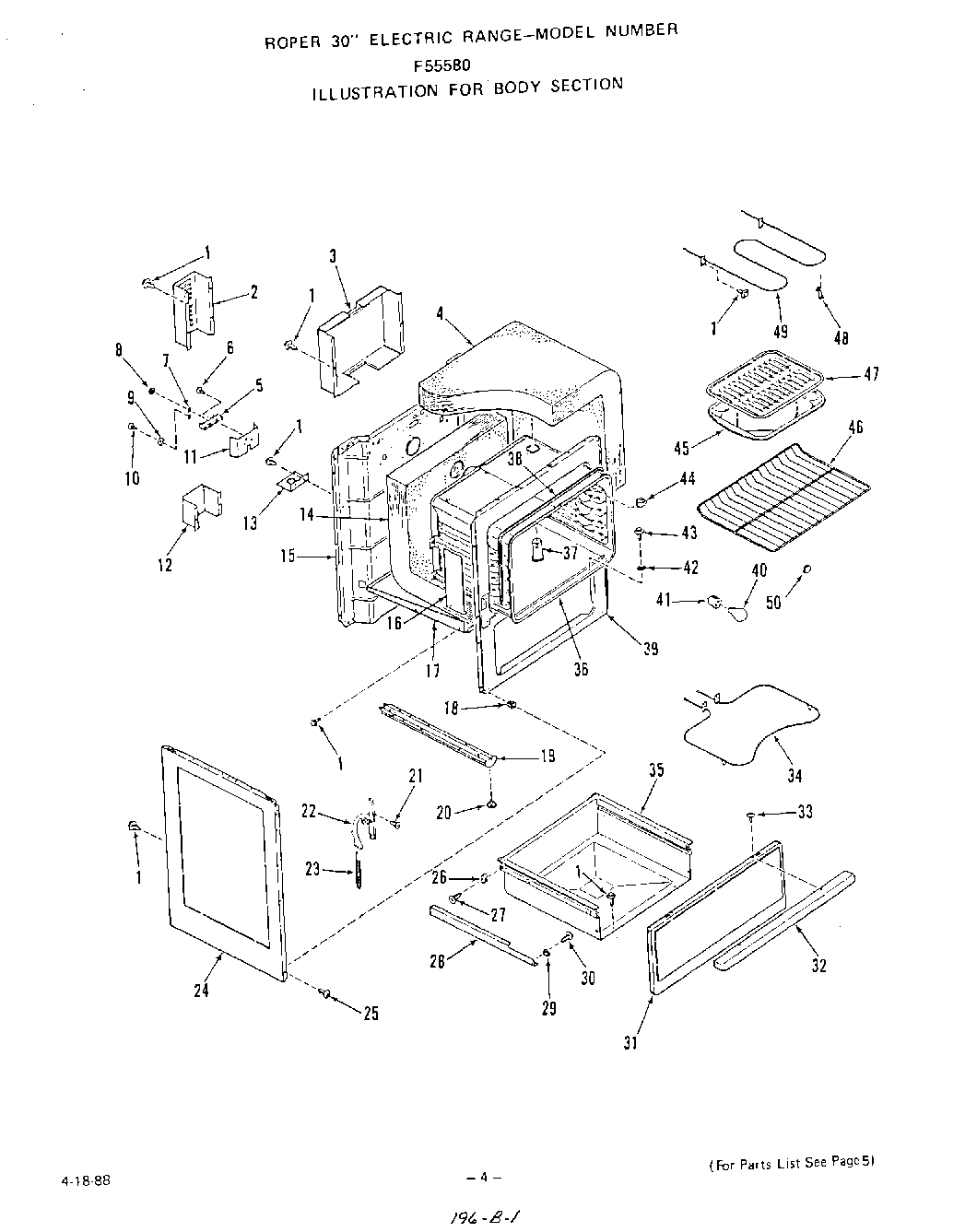

F5558W0 04 – BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Shield-Upper Wire
3	WPL 333956
4	Insulation-Oven Top & Sides (1 Piece)
5	Junction Block
6	Screw 10-32×1“
7	Ground Strap
8	WP342847 Whirlpool Drum Baffle
9	Washer
10	Screw 10-32×7/16“
11	Insulation-Service Cord
12	Wire Shield-Lower
13	Range Service Mounting Plate
14	Insulation-Oven Back & Bottom (1 Piece)
15	Main Back
16	WPL 328984
17	window, oven door
18	BURNER RECEPTACLE KIT
19	Base w/Levelers-Lt. or Rt.
20	Leg Leveler (4 Req)
21	Screw
22	Hinge-Main Top (Right)
22	Hinge-Main Top (Left)
23	Spring-Oven Door (Lt. or Rt.)
23	Spring-Oven Door (Lt. or Rt.)
24	Almond
24	White
25	Screw 8ABx5/8“
26	Rear Slide Block – Lt. or Rt.
27	Screw 8 – 32 x 3/8“
28	Support-Storage Drawer (Lt. or Rt.)
29	Front Slide Block-(Lt. or Rt.)
30	Screw 10-32×17/32“
31	Front Panel-Storage (White)
31	Front Panel-Storage (Almond)
32	Handle
33	WPL 295850
34	Bake Element (208 Volt (Optional))
34	WPL 325883
35	Storage Drawer
36	Oven Body
37	Vent Tube
38	Seal-Oven Door
39	Front Frame
40	Oven Lamp
41	Holder-Oven Light Bulb
42	WPL 21067
43	Screw 10ABx1/2“
44	Clip-Thermostat Bulb (2 Req)
45	WPL 331592
46	WPL 326068
47	WPL 326297
48	Support-Broiler Element
49	WPL 334369
49	WPL 334368
50	Plug Button
