F5607W0 02 – BACKGUARD , LIT/OPTIONAL

F5607W0 02 – BACKGUARD , LIT/OPTIONAL

Written by

in

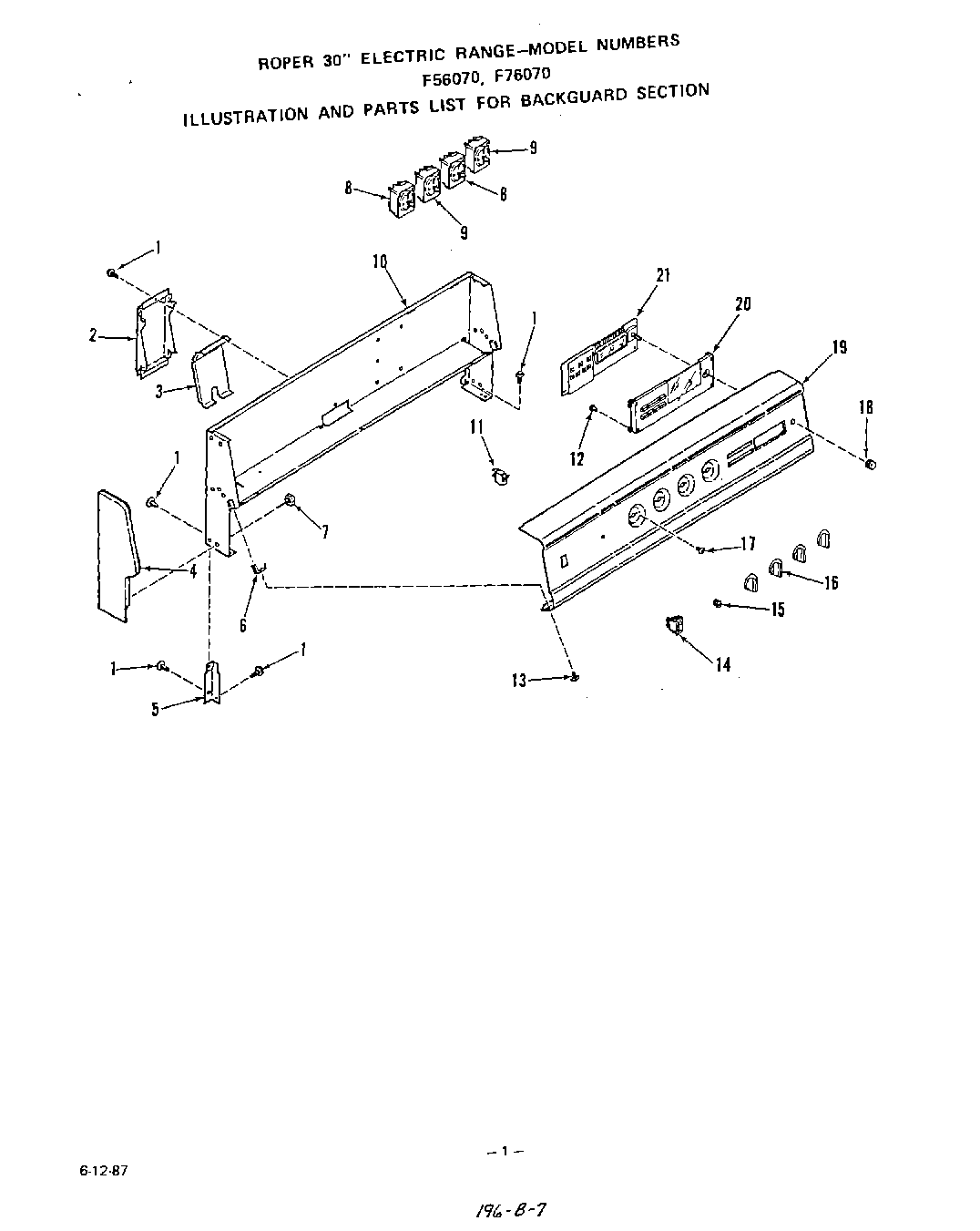

F5607W0 02 – BACKGUARD , LIT/OPTIONAL

Products

PositionProduct
1Screw 10-16×7/16“
2Wire Raceway
3Raceway Cover
4Left
4Right
5Left
5Right
6Backguard Clip
7Pal Nut
8Infinite Switch (Rt. Front)
9Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.)
10Backguard Body
11Light-Indicator (Surface)
12Screw 6-32×5/16“
13Screw 10-32×1/2“
14Switch-Oven Light
15Lens-Indicator Light
16Infinite Knob
17WPL 78565
18Clock/Oven Control Knob
19Control Panel
20xClock /Oven Control Lens
21Clock/Oven Control
