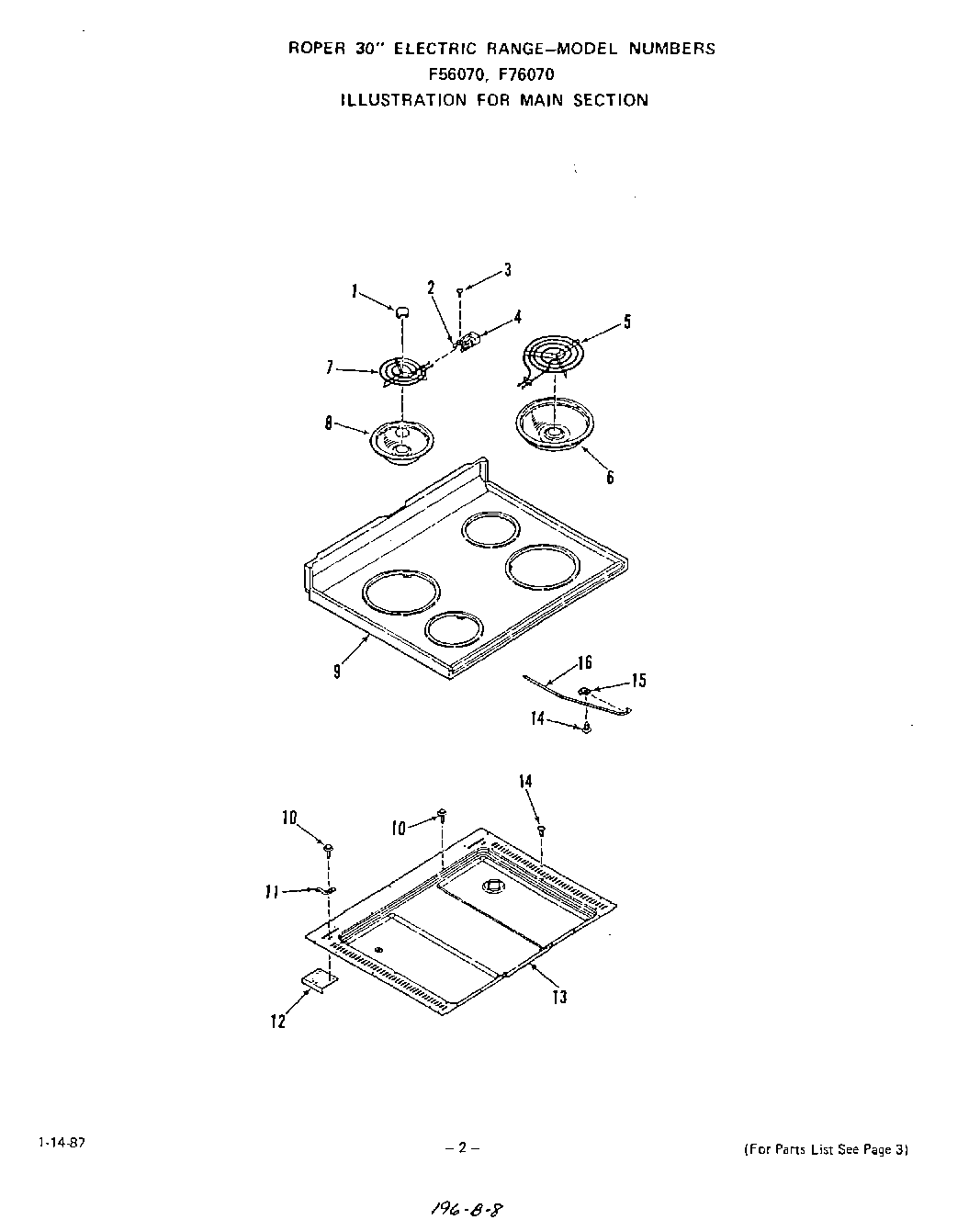

F5607W0 03 – MAIN

Products

Position	Product
1	Medallion (2 Req) All 2101 Models
2	Bracket-Term. Block (2 Req) All 2101 Mod.
3	Screw 7-32×5/16“(2 Req) All 2101 Models
4	Term. Block w/Leads-All 2101 Models
5	8“ Surface Unit (Rt. Front & Lt. Rear)
6	8“ Burner Bowl (1 Req) All 2101 Models
7	6“ Surface Unit (Lt. Front & Rt. Rear)
8	6“ Burner Bowl (1 Req) All 2101 Models
9	Almond
9	White
10	Screw 10-16×7/16“
11	Left
11	Right
12	Reinforcement Plate (2 Req)
13	Burner Box Bottom
14	Screw
15	Clamp-Support Rod
16	Support Rod-Main Top
