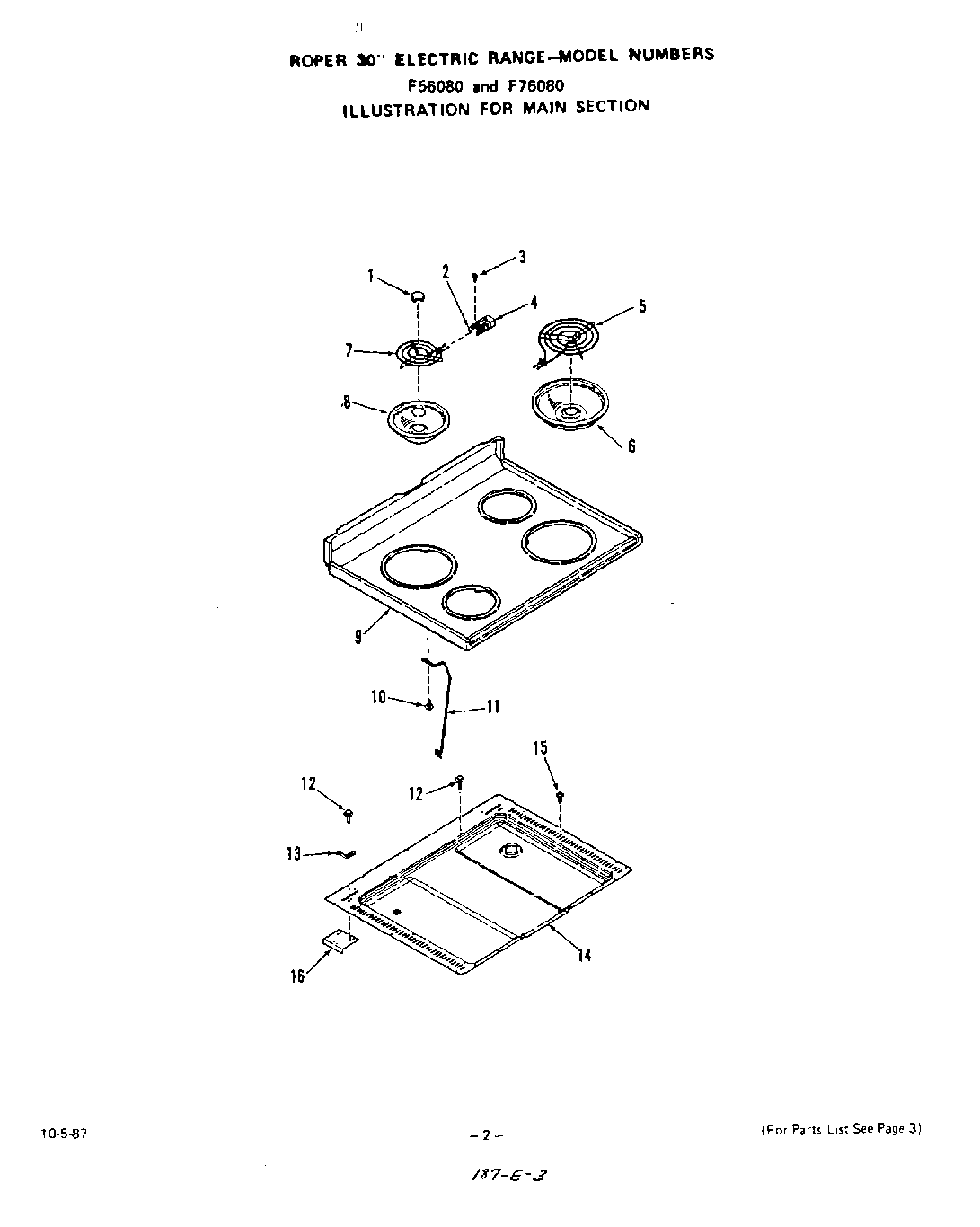

| 1 | Medallion (2 Req) All 2101 Models |
| 2 | Bracket-Term. Block (2 Req) All 2101 Mod. |
| 3 | Screw 7-32x5/16``(2 Req) All 2101 Models |
| 4 | Term. Block w/Leads-All 2101 Models |
| 5 | 8`` Surface Unit (Rt. Front & Lt. Rear) |
| 6 | 8`` Burner Bowl (1 Req) All 2101 Models |
| 7 | 6`` Surface Unit (Lt. Front & Rt. Rear) |
| 8 | 6`` Burner Bowl (1 Req) All 2101 Models |
| 9 | Almond |
| 9 | White |
| 11 | Support Rod-Main Top (2 Req) |
| 12 | Screw 10-16x7/16`` |
| 13 | Left |
| 13 | Right |
| 14 | Burner Box Bottom |
| 15 | Screw |
| 16 | Reinforcement Plate (2 Req) |
