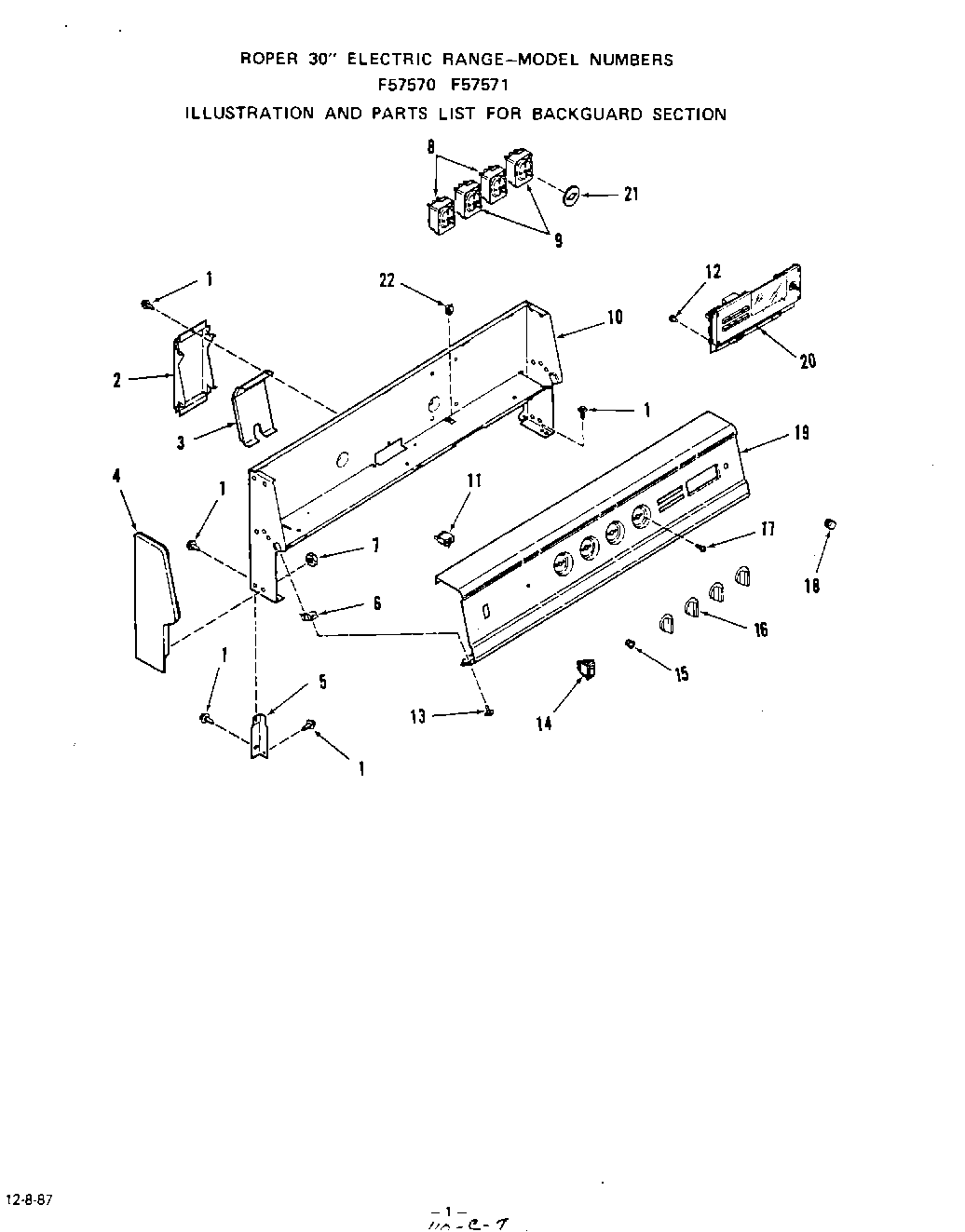

F5757^1 02 – MAIN TOP

Products

Position	Product
1	Screw 10-16×7/16“
2	Wire Raceway
3	Raceway Cover
4	Left
4	Right
5	Left
5	Right
6	Backguard Clip
7	Pal Nut
8	Infinite Switch (Lt. Front or Rt. Rear)
9	Infinite Switch (Rt. Front or Lt. Rear)
10	Backguard Body
11	Light-Indicator
12	Screw 6-32×5/16“
13	Screw 10-32×1/2“
14	Switch-Oven Light
15	Lens-Indicator Light
16	Infinite Knob
17	WPL 78565
18	Clock Knob
18	Clock Knob
19	Control Panel
19	Control Panel
20	Clock/Oven Control Lens
20	W11415783 Whirlpool Seal
21	Infinite Control Spacer
