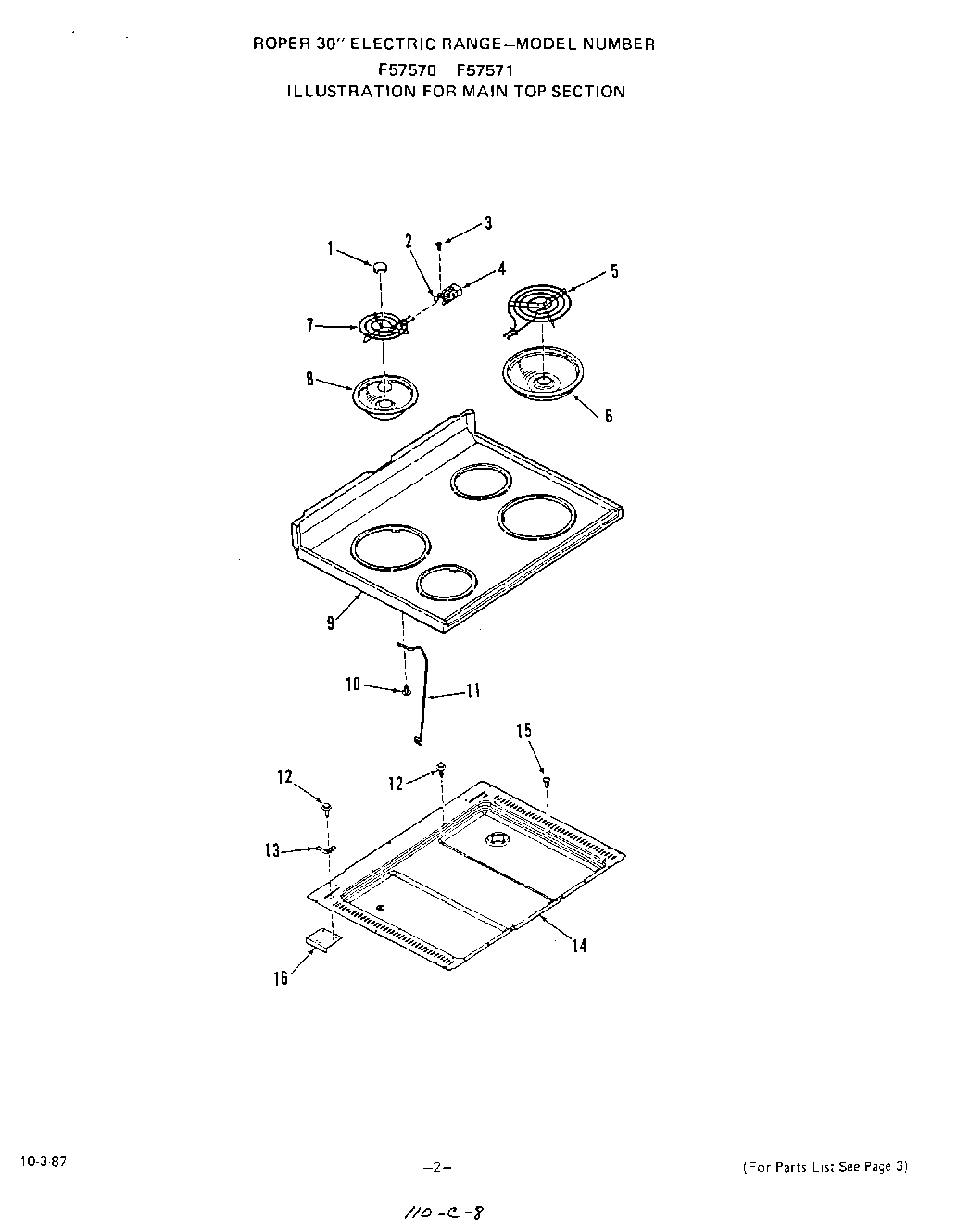

F5757W0 03 – BODY

Products

Position	Product
1	Medallion (2 Req) All 2101 Models
2	Bracket-Term. Block (2 Req) All 2101 Mod.
3	Screw 7-32×5/16“(2 Req) All 2101 Models
4	Term. Block w/Leads-All 2101 Models
5	8“ Surface Element (1 Req) All 2101 Mod.
6	8“ Burner Bowl (1 Req) All 2101 Models
7	6“ Surface Element (1 Req) All 2101 Models
8	6“ Burner Bowl (1 Req) All 2101 Models
9	Almond
9	White
10	Screw 6-32 x 5/16“
11	Support Rod-Main Top (2 Req)
13	Left
13	Right
14	Burner Box Bottom
15	Screw 10-16×7/16“
16	Reinforcement Plate (2 Req)
