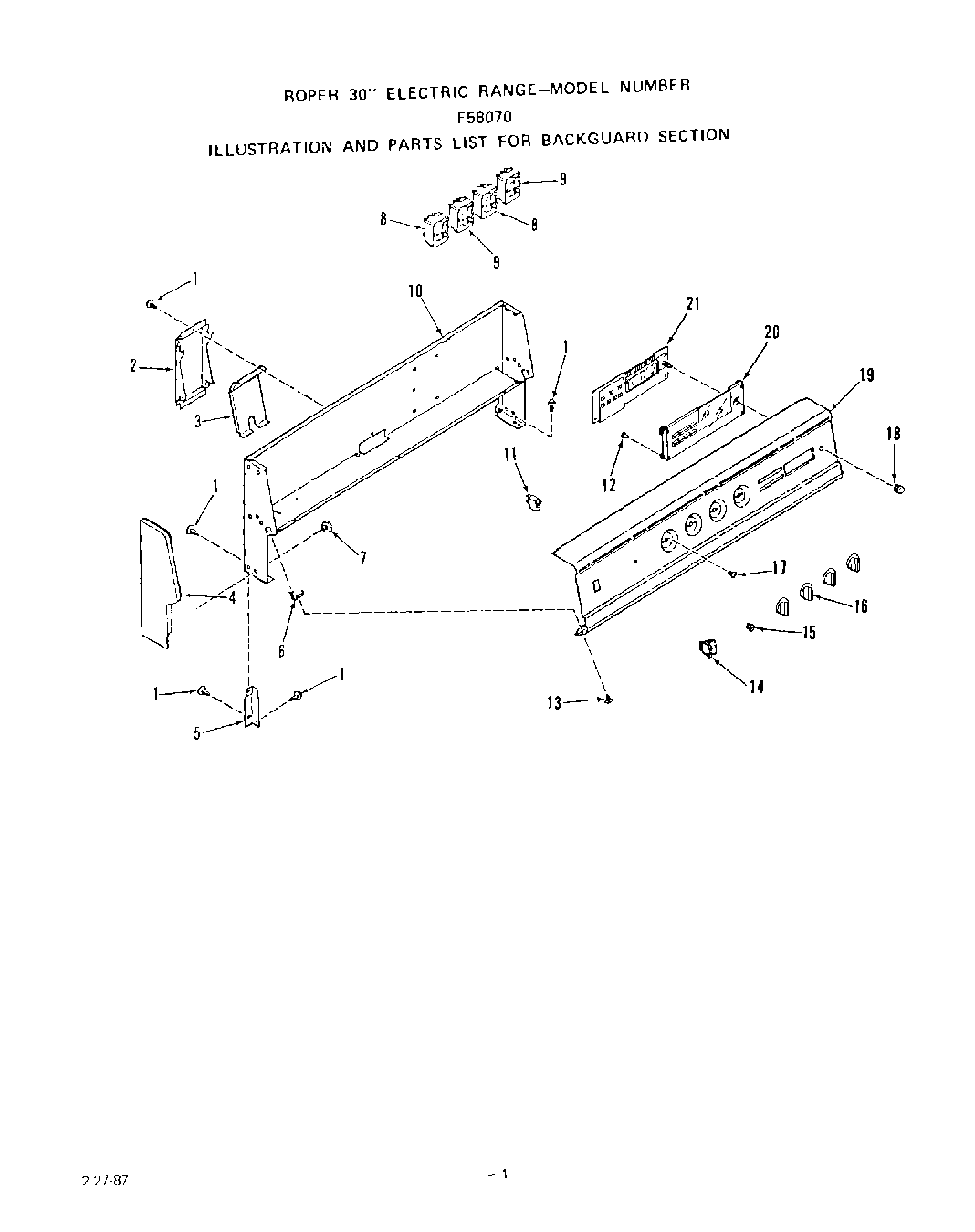

F5807W0 02 – BACKGUARD

F5807W0 02 – BACKGUARD

Written by

in

F5807W0 02 – BACKGUARD

Products

PositionProduct
1Screw 10-16×7/16“
2Wire Raceway
3Raceway Cover
4End Cap
4Left
4Right
5Backguard Support
5Right
5Left
6Backguard Clip
7Pal Nut
8Infinite Switch (Lt. Front or Rt. Rear)
9Infinite Switch (Rt. Front)
10Backguard Body
11Light-Indicator (Surface)
12Screw 6-32×5/16“
13Screw 10-32×1/2“
14Switch-Oven Light
15Lens-Indicator Light
16Infinite Knob
17WPL 78565
18Clock/Oven Control Knob
19Control Panel
20xClock /Oven Control Lens
21Clock/Oven Control
