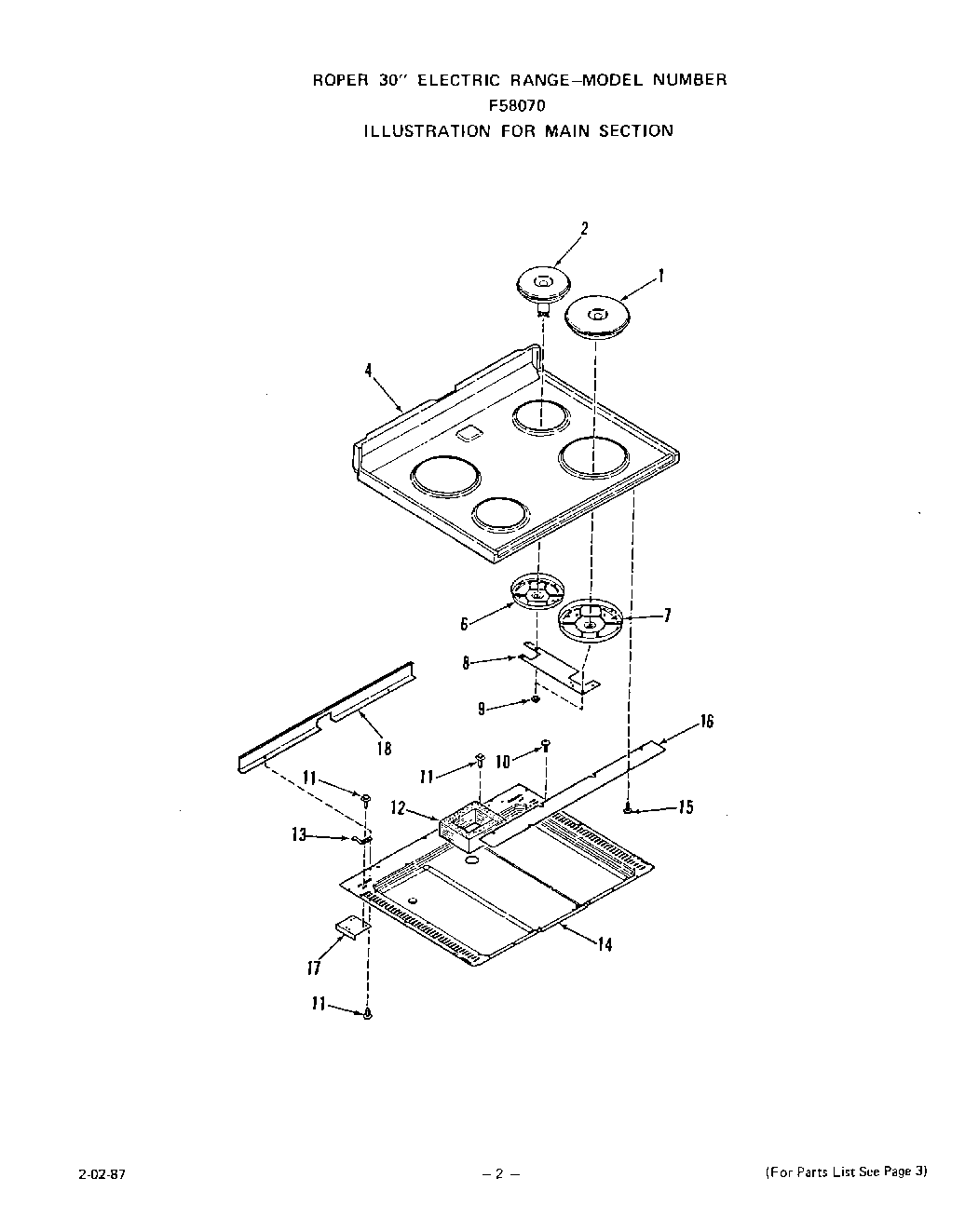

F5807W0 03 – MAIN

Products

Position	Product
1	Element-Hob (Small)
2	Element-Hob (Large)
4	Main Top
4	Main Top (Almond)
4	Main Top (White)
6	Clamp-Hob Element (Large)
7	Clamp-Hob Element (Small)
8	Brace
9	Mounting Nut (2 Req)
10	Screw-10-32×1/2“
11	Screw 10-16×7/16“
12	Vent Seal
13	Main Top Hinge
13	Right
13	Left
14	Burner Box Bottom
15	Screw 8ABx5/8“
16	Cover Plate
17	Reinforcement Plate (2 Req)
18	Burner Box Baffle
