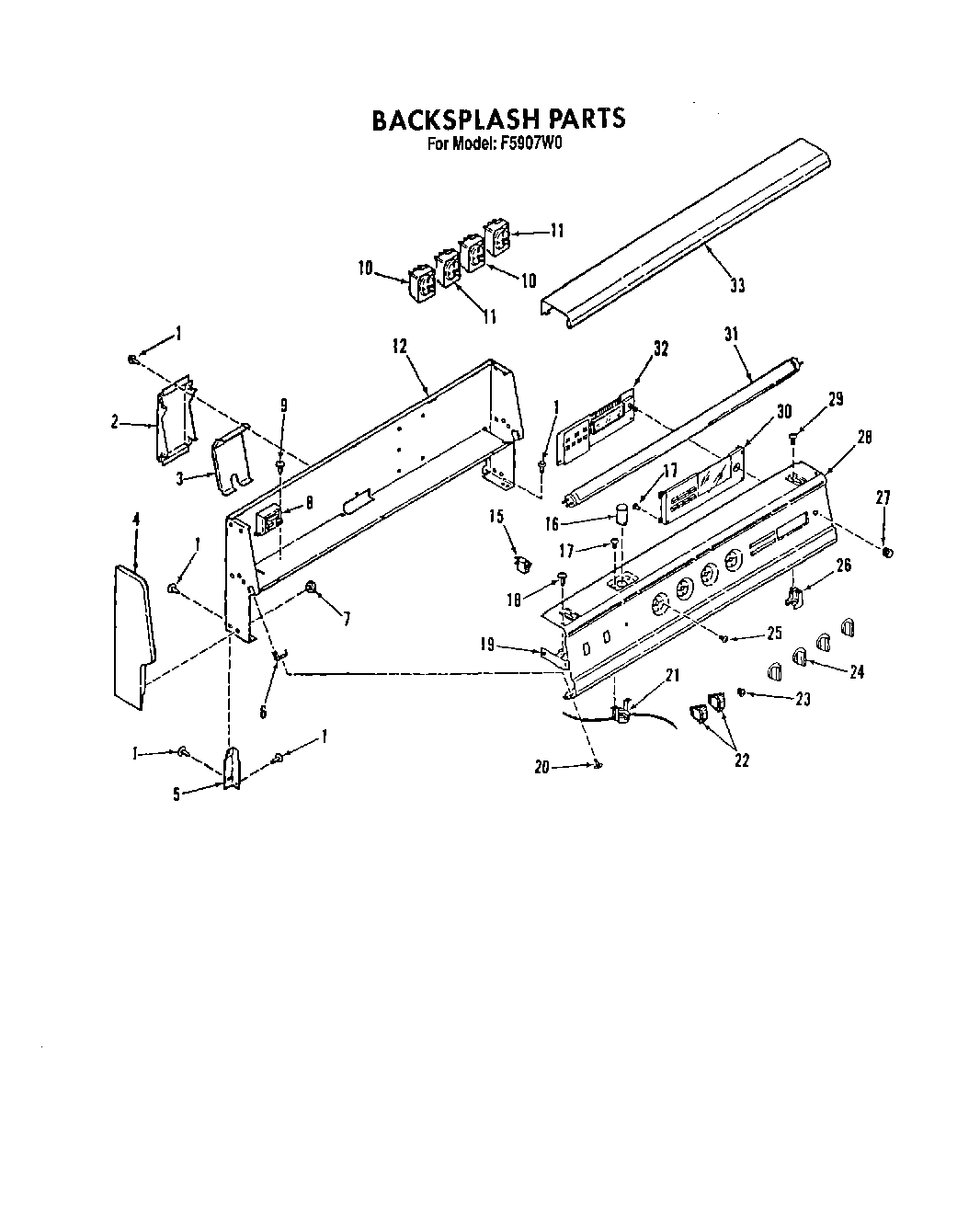

F5907W0 02 – BACKSPLASH, LIT/OPTIONAL
Written by
in
F5907W0 02 – BACKSPLASH, LIT/OPTIONAL
Products
Position
Product
1
SCREW
2
Raceway, Wire
3
Cover, Raceway
4
End Cap (Left)
4
End Cap (Right)
5
Support, Backguard (Left)
5
Support, Backguard (Right)
6
Clip, Backguard
7
WP308499 Whirlpool Nut
8
WPL 4323673
9
Screw 6-20×3/8
11
W10900107 Whirlpool Oven Surface Element Switch
12
Body, Backguard
15
Indicator Light, (Surface Unit)
16
WPL 4337125
17
Screw
18
WP308685 Whirlpool Microwave Screw
19
Bracket, Backguard
20
Screw, No.10-32 x 1/2
21
Starter Base
22
WP4314961 Whirlpool Lite Switch
23
WP9750343 Whirlpool Light Lens
24
Knob, Infinite
25
Screw
26
Socket
27
Control Knob, Clock/Oven
28
Control Panel
29
WP486754 Whirlpool Compactor Screw
30
Lens, Clock
31
WP95292 Whirlpool Fluorescent Light Bulb
32
Clock/Oven Control
33
Canopy Panel
33
Installation Guide
33
Use & Care Manual
33
Repair Parts List
←
