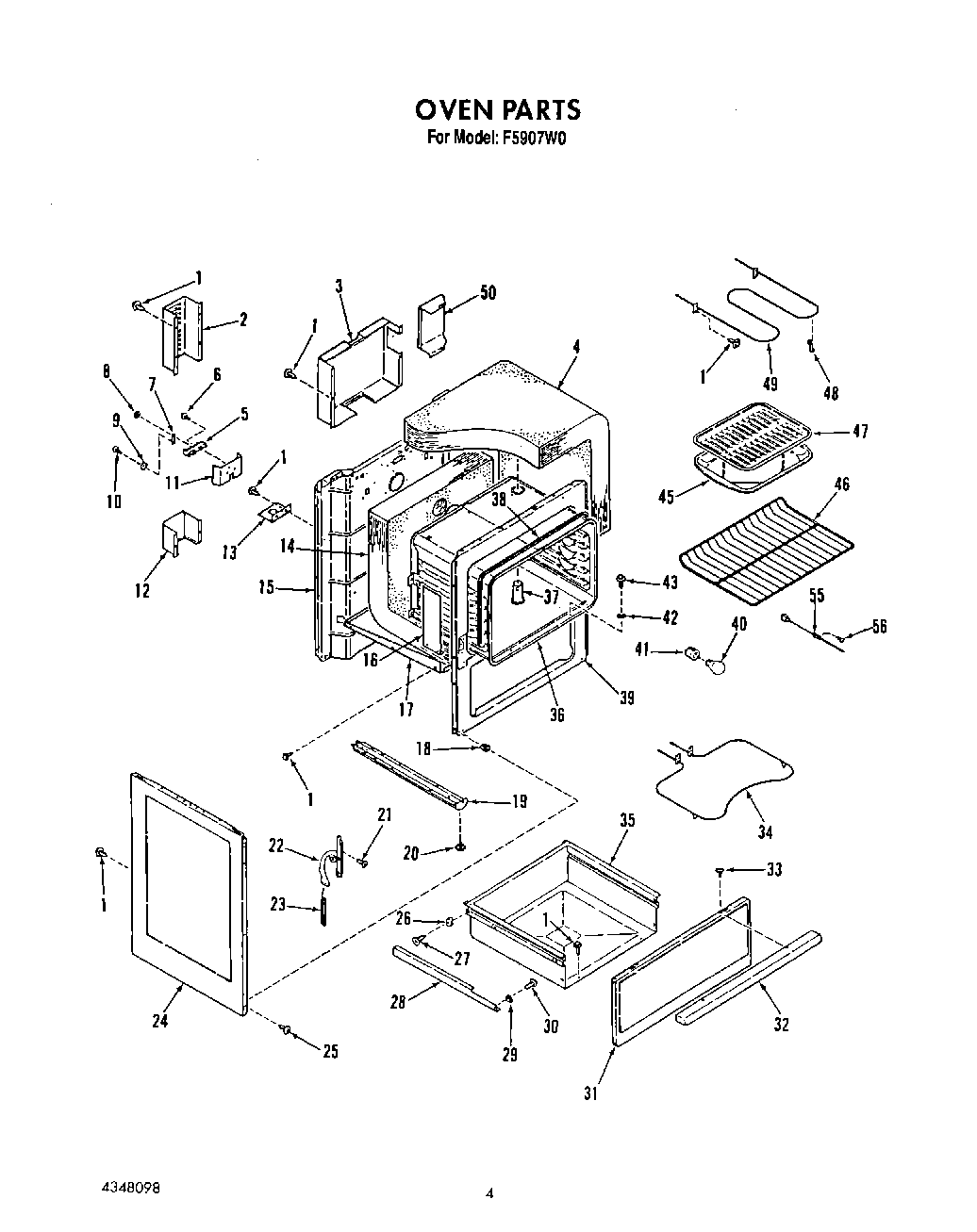

F5907W0 04 – OVEN
Written by
in
F5907W0 04 – OVEN
Products
Position
Product
2
Wire Shield, Upper
3
Wire Shield
4
Insulation, Wrap
5
WP8203546 Whirlpool Terminal Block
6
Screw, No.10-32×1
7
Strap, Ground
8
Nut, Hex 10-32
9
Washer
10
Screw No.10-32×7/16
11
Insulation, Service Cord
12
Wire Cover, Lower
13
Service Plate
14
Insulation, Back And Bottom
15
Rear Cover
16
Retainer, Insul., (Lt/Rt)
17
Retainer, Insulation, Bottom
18
Nut-Expansion (6)
19
Base, W/ Levelers (2)
20
Levelers, Leg (4)
21
Screw
22
Oven Door Hinge (Right)
22
Hinge, Oven Door (Left)
23
Oven Door Spring Lt/Rt (2)
24
Side Panel (Lt/Rt) (Almond)
24
Side Panel (Lt/Rt) (White)
25
Screw No.8×5/8
26
Rear Slide Block (Lt/Rt)
27
Screw, No.8-32 x 3/8
28
Support, (Lt/Rt), Storage Drawer
29
Front Slide Block, Lt/Rt
30
Screw, No.10-32 x 17/32
31
Panel, Storage (White)
31
Panel, Storage (Almond)
32
Handle
33
Screw
34
Bake Element (208 Volt (Opt))
34
Element, Bake (240 Volt)
35
Drawer, Storage
36
Oven Body
37
Tube, Vent
38
Seal, Oven Door
39
Frame, Front
40
RANGE ONLY 40W 120V APPL BULB
41
W10856866 Whirlpool Light Socket
42
Washer
43
SCREW
46
Rack, Oven (2)
47
4396923 Whirlpool Broil Pan Set Gray Porcelain
48
Support, Broil Element
49
WP4334925 Whirlpool Broil Element
50
Wire Shield
54
Frame
55
Sensor
56
Screw
←
