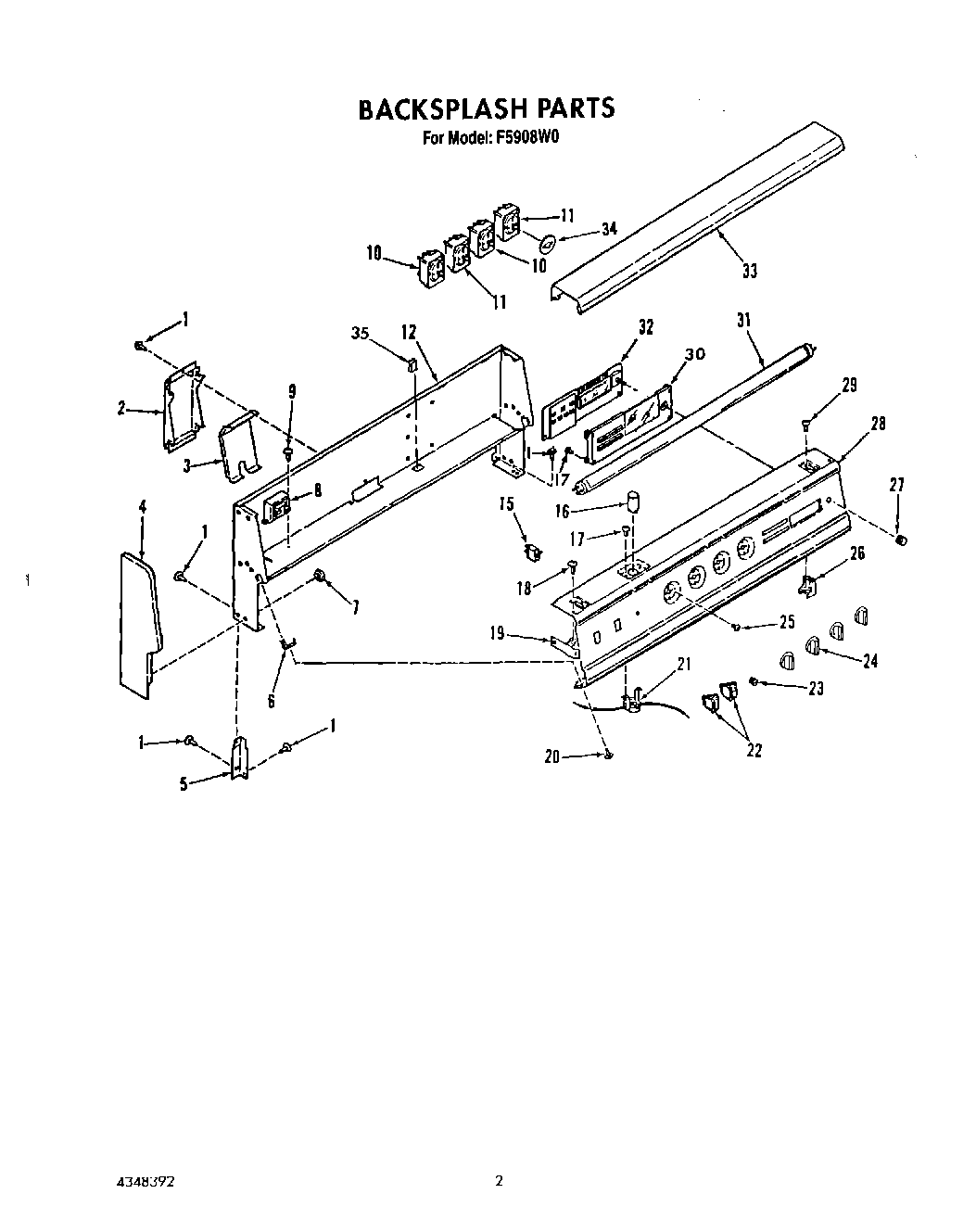

F5908W0 02 – BACKSPLASH, LIT/OPTIONALadmin2025-04-26T11:53:09+00:00F5908W0 02 – BACKSPLASH, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | Raceway, Wire |
| 3 | Cover, Raceway |
| 4 | End Cap (Left) |
| 4 | End Cap (Right) |
| 5 | Support, Backguard (Right) |
| 5 | Support, Backguard (Left) |
| 6 | Clip, Backguard |
| 7 | WP308499 Whirlpool Nut |
| 8 | WPL 4323673 |
| 9 | Screw 6-20x3/8 |
| 10 | W10900107 Whirlpool Oven Surface Element Switch |
| 12 | Frame, Backguard |
| 15 | Indicator Light, (Surface Unit) |
| 16 | WPL 4337125 |
| 17 | Screw |
| 18 | WP308685 Whirlpool Microwave Screw |
| 19 | Bracket, Backguard |
| 20 | Screw |
| 21 | Starter Base |
| 22 | WP4314961 Whirlpool Lite Switch |
| 23 | WP9750343 Whirlpool Light Lens |
| 24 | Knob, Infinite |
| 25 | Screw |
| 26 | Socket |
| 27 | Knob, Clock |
| 28 | Control Panel |
| 29 | WP486754 Whirlpool Compactor Screw |
| 30 | Lens, Clock |
| 31 | WP95292 Whirlpool Fluorescent Light Bulb |
| 32 | Clock/Oven Control w/Lens |
| 33 | Canopy Panel |
| 34 | Spacer, Infinite Control |
| 35 | Use & Care Manual |
| 35 | Wire Clip |
| 35 | Installation Guide |
| 35 | Repair Parts List |
