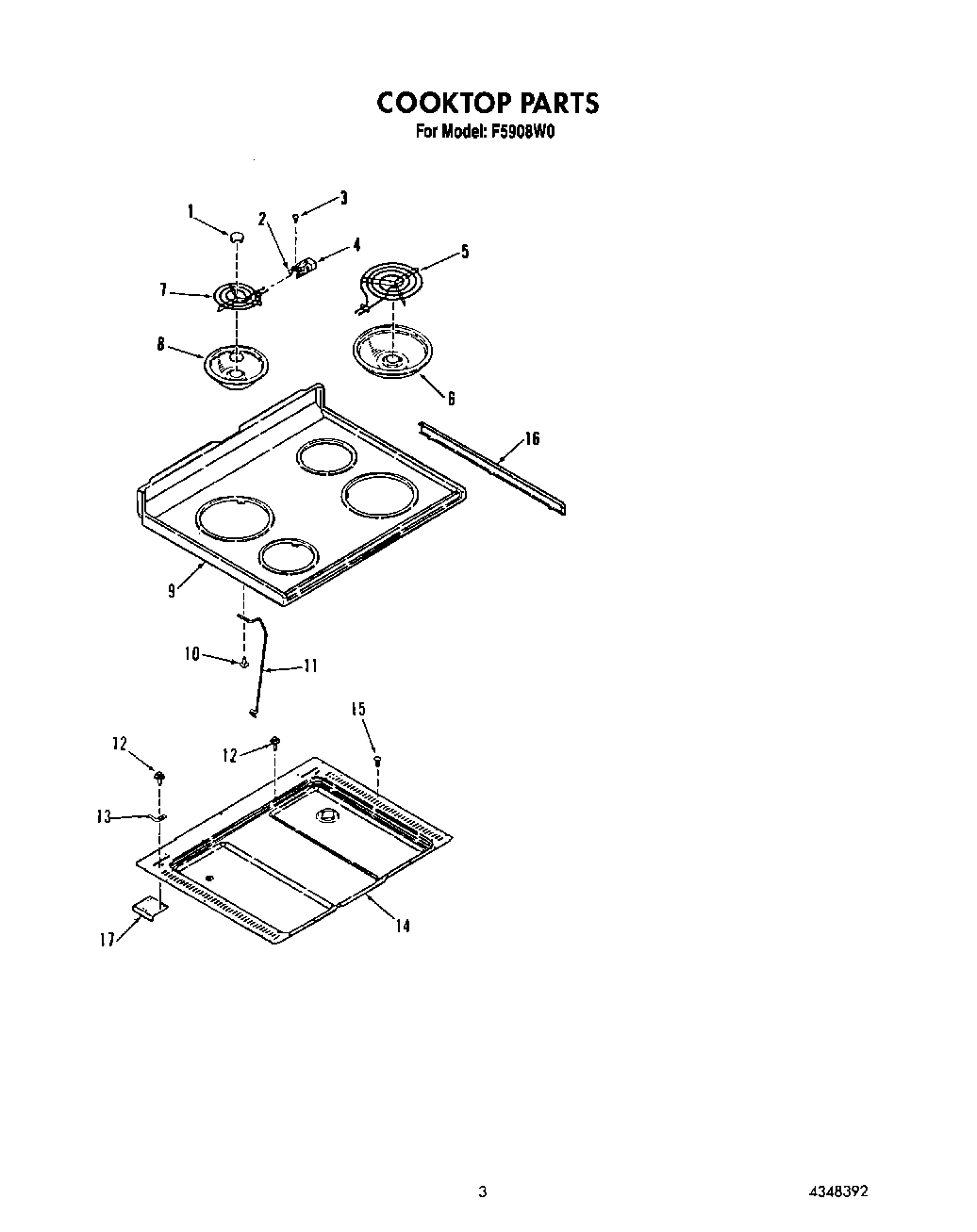

F5908W0 03 – COOKTOP

Products

Position	Product
1	Medallion (2)
2	WP4332752 Whirlpool Clip
3	Screw, No.7-32 x 5/16
4	BURNER RECEPTACLE KIT
5	WP3177565 Whirlpool Surface Element
6	DRIP BOWL 8" W/HOLE CHROME
7	WPY04100165 Whirlpool Surface Element
8	WPW10196406 Whirlpool 6" Chrome Drip Bowl
9	Cooktop (Almond)
9	Cooktop (White)
11	Support Rod (2)
12	SCREW
13	Hinge-Main Cooktop (Right)
13	Hinge-Main Cooktop (Left)
14	Support Plate
14	Bottom, Burner Box
15	Screw, No.10-32 x 1/2
16	Trim, Cooktop (Right)
16	Trim, Cooktop (Left)
