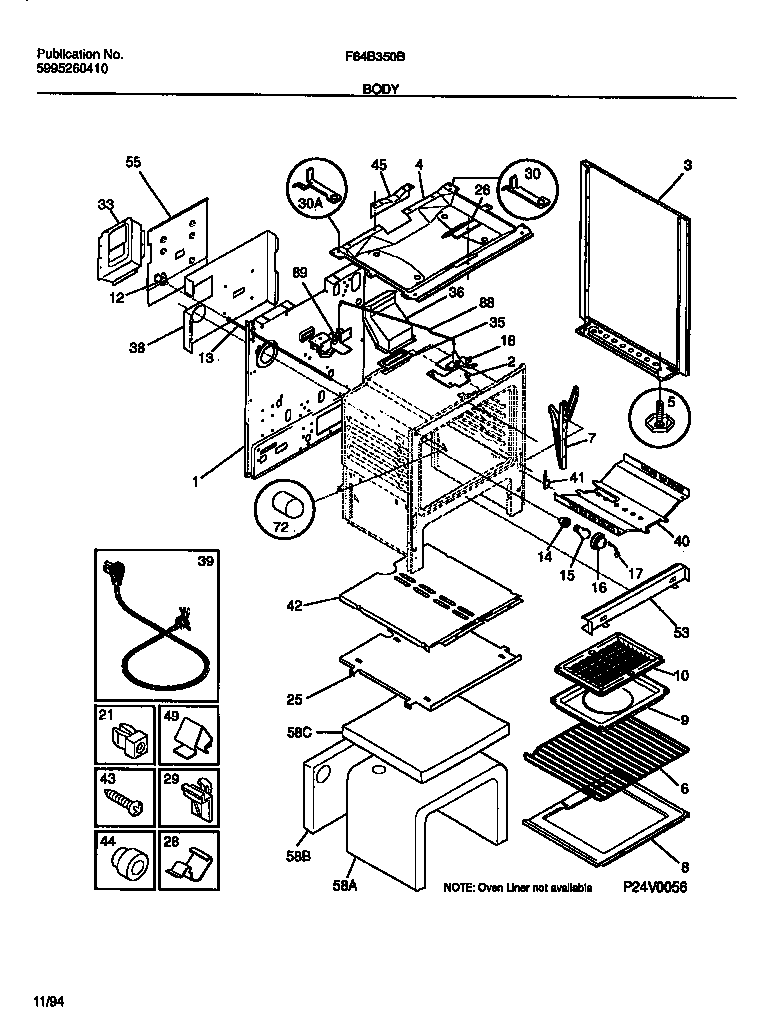

F64B350BDA 04 – BODY

F64B350BDA 04 – BODY

Written by

in

F64B350BDA 04 – BODY

Products

PositionProduct
*64171WCI 08067961
*64172FASTENER-EDGE MTG (NOT ILLUSTRATED)
*64169TOUCH, UP PAINT, ALMOND (NI)
1WCI 316029405
2SHIELD-OVN TOP
3WCI 5303269543
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 5303269545
3WCI 08067992
4WCI 3011597
5WCI 3934058
5316116000 Frigidaire Screw
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8BTTM-OVEN
8316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3131313
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
38WCI 316051701
39WCI 3160013630
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
40SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
5308067973 Frigidaire 0 Insulation
53SHIELD-FRONT
55WCI 316052601
58AINSULATION, OVEN WRAPPER
58BWCI 316054200
58CINSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028100
