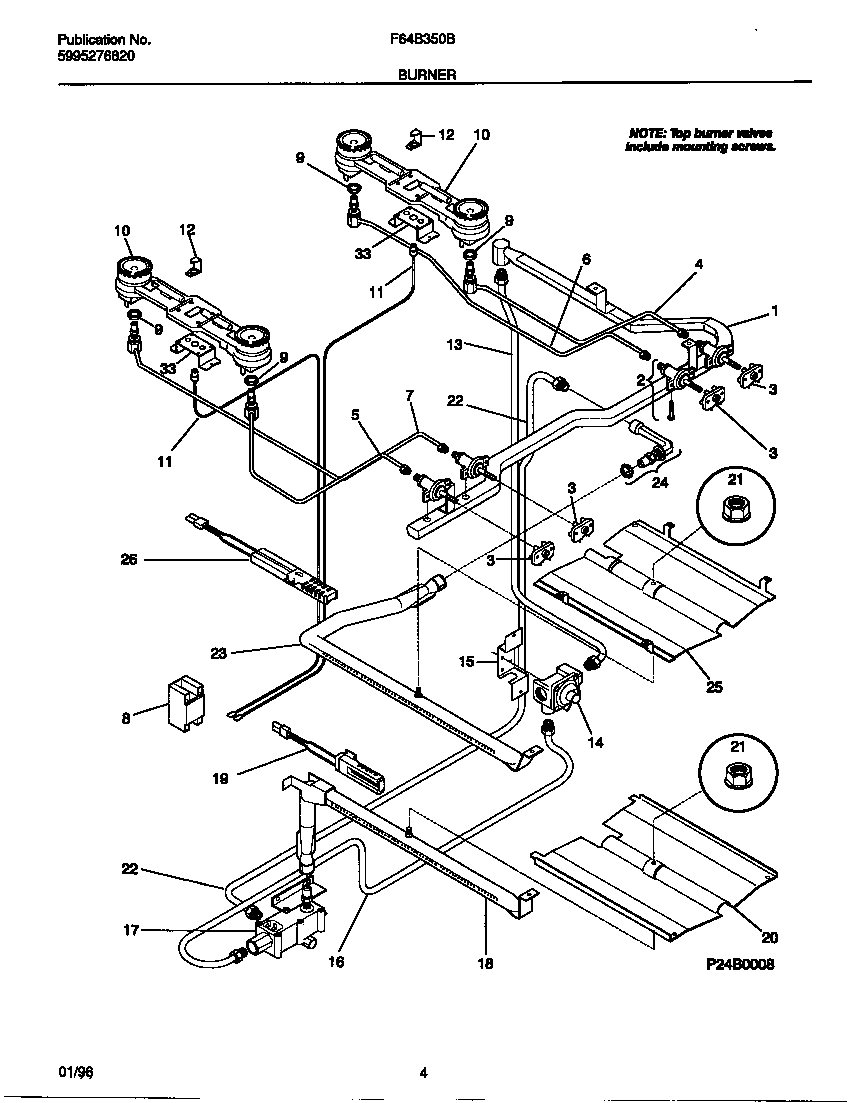

F64B350BDB 03 – BURNER

F64B350BDB 03 – BURNER

Written by

in

F64B350BDB 03 – BURNER

Products

PositionProduct
1WCI 316066201
2AWCI 316050601
2B316048200 Frigidaire Oven Screw
3BSWITCH HARNESS TERMINAL KIT
3ASWITCH-IGNITER, (4)
4WCI 316051400
5WCI 316051401
6WCI 316051402
7WCI 316051403
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10WCI 316057100
11BIGNITER-TOP BURNER, BASE, 33“
11AIGNITER-TOP BURNER, BASE, (2)
123016993 Frigidaire Oven Retainer
13WCI 316065005
14B316021104 Frigidaire Oven Screw Assembly
14A5303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 5303288408
215303013272 Frigidaire Oven Nut
22WCI 316065002
23WCI 08067935
24WCI 316070400
25WCI 5303288407
265303935068 Frigidaire Flat Igniter
33BRACKET BURNER MTG
