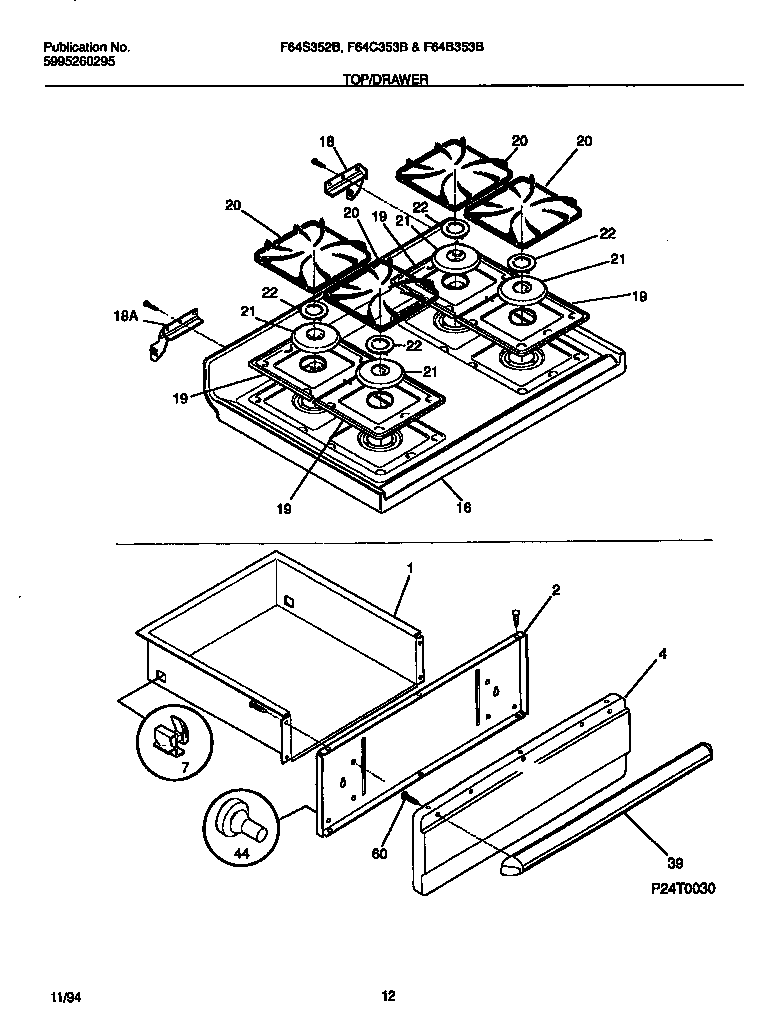

F64B353BDA 06 – TOP/DRAWER

F64B353BDA 06 – TOP/DRAWER

Written by

in

F64B353BDA 06 – TOP/DRAWER

Products

PositionProduct
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 5303301547
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
18B131243700 Frigidaire Screw
19WCI 316011401
20WCI 316025400
22WCI 316011001
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303288574
