F64C353BSA 07 – DOOR

F64C353BSA 07 – DOOR

Written by

in

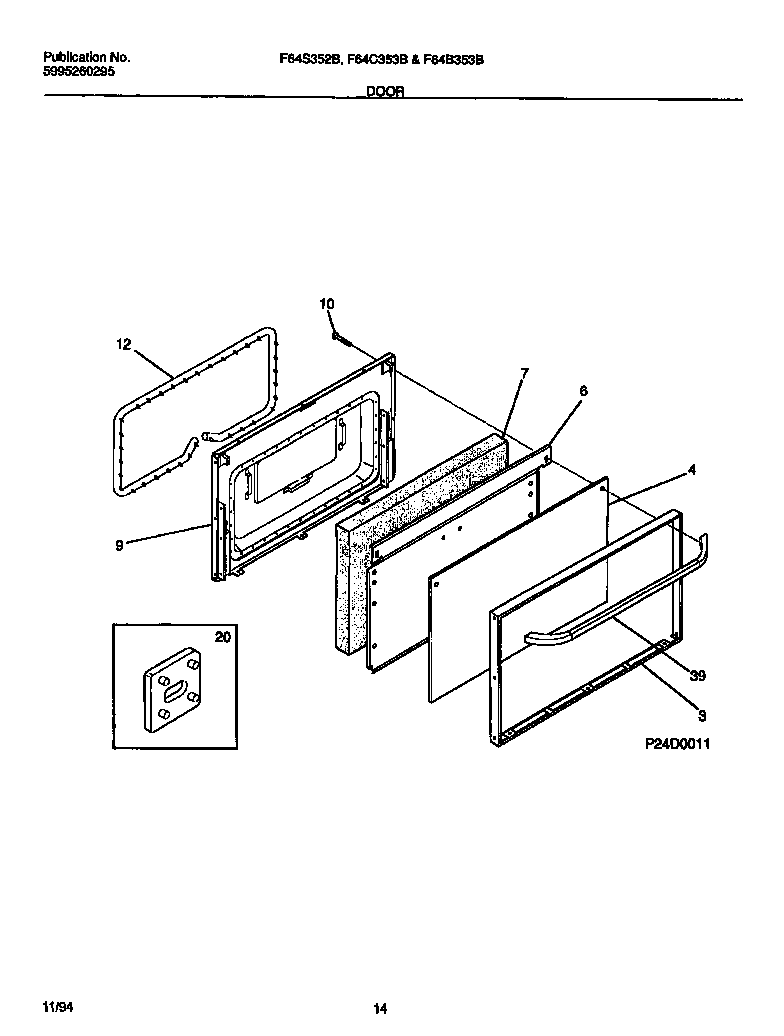

F64C353BSA 07 – DOOR

Products

PositionProduct
*83932RIVET-POP, WARING-PLATE
*83931WCI 316065300
*83933SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*839345303300265 Frigidaire Oven Screw
*83935WCI 5303280311
3WCI 316067804
4WCI 316019718
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION, WHITE
7INSULATION-OVEN DOOR
9WCI 316066603
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
125303131601 Frigidaire Oven Seal
14ALUM FOIL-B/G GLASS
14A5303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
20WCI 316055100
395304530039 Frigidaire Handle Set
