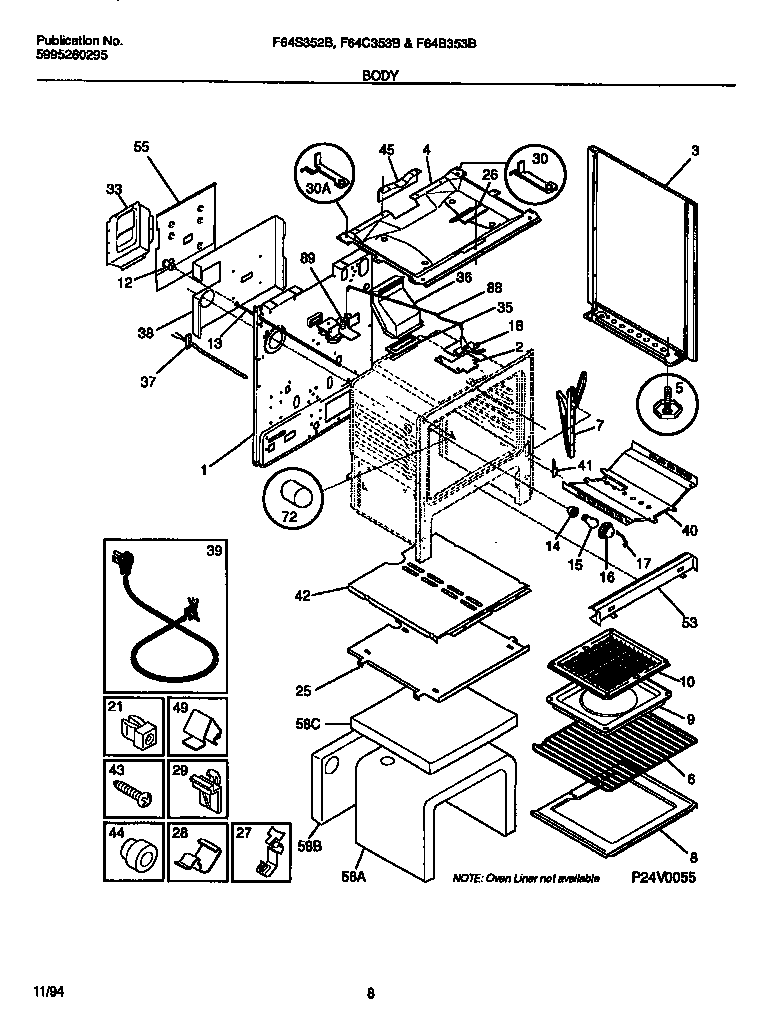

F64C353BTA 05 – BODY

F64C353BTA 05 – BODY

Written by

in

F64C353BTA 05 – BODY

Products

PositionProduct
*83921WCI 08067961
*83920FASTENER-EDGE MTG (NOT ILLUSTRATED)
*839225303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 316029405
2SHIELD-OVN TOP
3PNL-B/S-RH-WHITE
3APNL-B/S-LH-WHITE
3BWCI 08067992
4WCI 316011905
5CWCI 3934058
5B316116000 Frigidaire Screw
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3131313
26WCI 08067757
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
38WCI 316051701
39AHARNESS-WIRING, MAIN
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
40ASCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53SHIELD-FRONT
53A08067973 Frigidaire 0 Insulation
55WCI 316052601
58CINSULATION, OVEN TOP
58AINSULATION, OVEN WRAPPER
58BWCI 316054200
72COVER-LIGHT/SWITCH ROD
88WCI 316026400
89WCI 316028101
