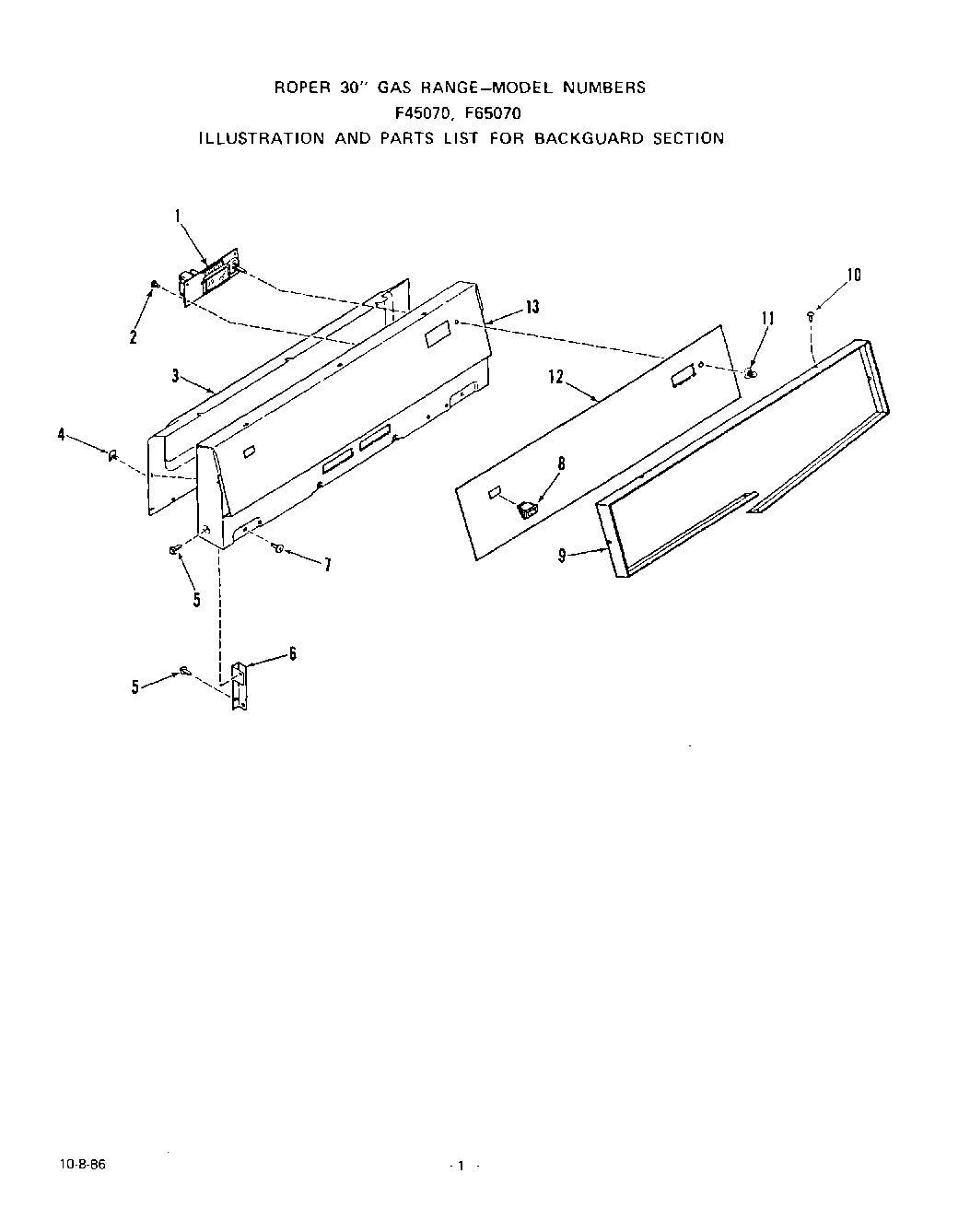

F6507^0 02 – BACKGUARD

Written by

Products

Position	Product
1	Clock
2	Screw 6-32×5/16“
3	Wire Cover
4	Clip
5	Screw 10-16×7/16“
6	Support
6	Support-Backguard (Right)
6	Support-Backguard (Left)
7	Screw 10ABx1/2“
8	Switch-Oven Light
9	488946 Whirlpool Air Conditioner Clamp
10	Screw 6-20×3/8“
11	Clock/Oven Control Knob
12	Insert – Backguard
13	Panel-Backguard
