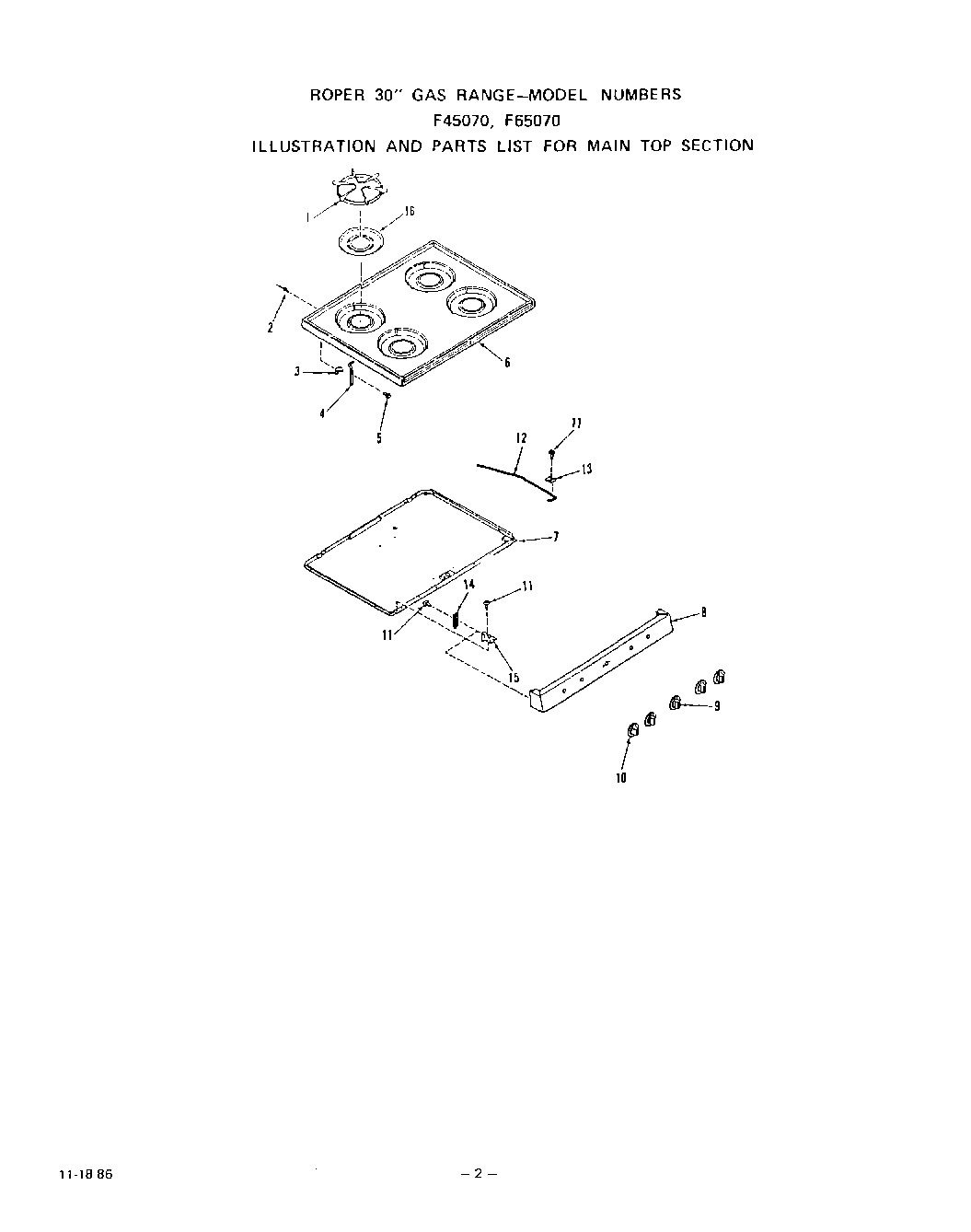

F6507^0 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Req)
2	Rivet
3	Hinge Bracket
4	Hinge
4	Left
4	Right
5	WPL 321162
6	Main Top (Almond)
6	Chrome
6	Main top (White)
6	Main Top
7	Burner Box Bottom
8	Manifold Panel
8	Manifold Panel
8	Almond
8	White
9	Thermostat Knob
10	Gas Valve Knob
11	Screw 10-16×7/16“
12	Support Rod
13	Clamp
14	Body Side Cleat
15	Manifold Panel Bracket
15	Manifold Panel Bracket (Left)
15	Manifold Panel Bracket (Right)
16	Spill Bowl
