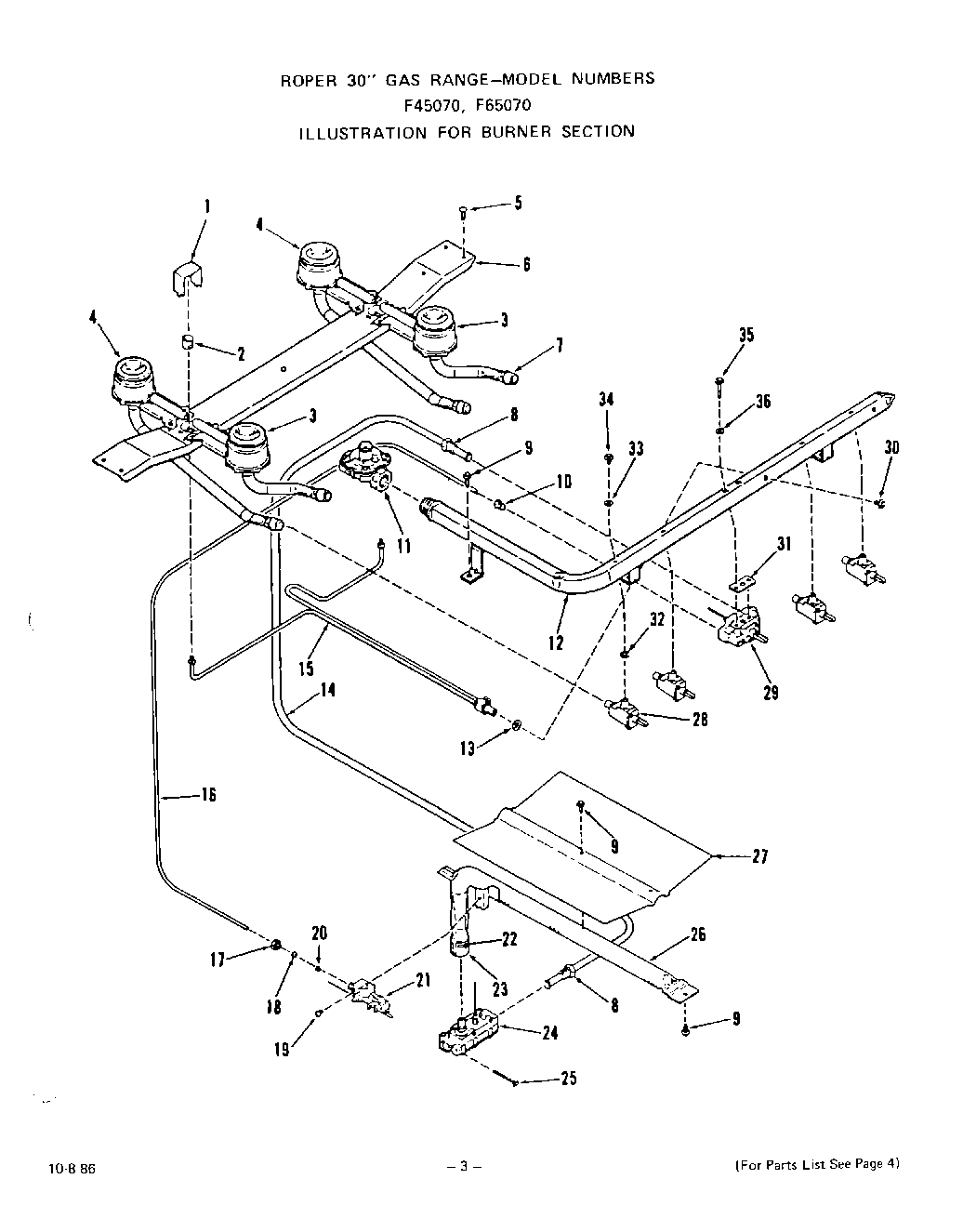

F6507^0 04 – BURNER

Products

Position	Product
1	Top Pilot Shield (3 Req)
2	Pilot Cup (3 Req)
3	Front Burner-Lt. or Rt. (Inc`s. Key 8)
4	Rear Burner-Lt. or Rt.. (Inc`s. Key 8)
5	Screw 6-20×3/8“
6	Top Burner Support
7	Air Shutter
8	Inverted Nut 3/8“
9	Screw 10-16×7/16“
10	Loxit Nut 3/16“
11	Pressure Regulator
12	Manifold Pipe
13	Gasket
14	Tubing 3/8“
15	Pilot w/Filter
16	Tubing 3/16“ -Oven Therm. To Oven Control Pilot
17	Compression Nut 3/16“
18	Compression Ball Sleeve 3/16“
19	Screw 10-24×1/4“
20	Orifice Cup Only (For 94)
21	Pilot Only (Inc`s 90)
22	Adjustment Screw -Air Shutter
23	Air Shutter
24	Control Valve (Inc`s. 7,8)
25	Screw 10-32 x 2“
26	Oven Burner (Inc`s. 19, 32 & 33)
27	Baffle – Oven Burner
28	Gas Valve (4 Req) (Inc`s. 20)
29	Oven Thermostat (Inc`s 31)
30	Mounting Screw 5/16-24
31	Silicone Rubber Gasket
32	Silicone Rubber Gasket
33	Gasket (For 81)
34	Mounting Screw (Inc`s 86)
35	Mounting Screw (2 Req. for 114)
36	Gasket (For 83)
