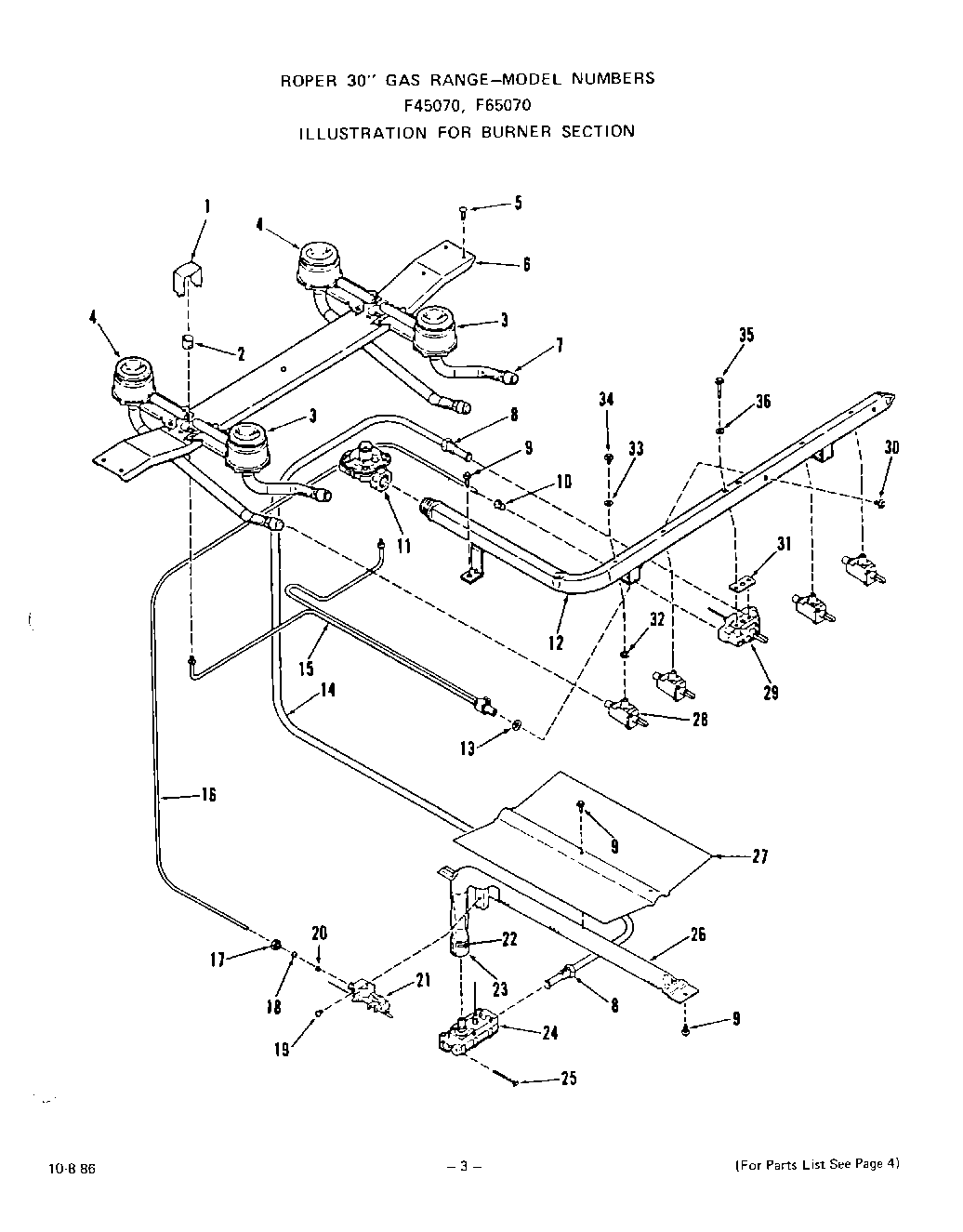

| 1 | Top Pilot Shield (3 Req) |
| 2 | Pilot Cup (3 Req) |
| 3 | Front Burner-Lt. or Rt. (Inc`s. Key 8) |
| 4 | Rear Burner-Lt. or Rt.. (Inc`s. Key 8) |
| 5 | Screw 6-20x3/8`` |
| 6 | Top Burner Support |
| 7 | Air Shutter |
| 8 | Inverted Nut 3/8`` |
| 9 | Screw 10-16x7/16`` |
| 10 | Loxit Nut 3/16`` |
| 11 | Pressure Regulator |
| 12 | Manifold Pipe |
| 13 | Gasket |
| 14 | Tubing 3/8`` |
| 15 | Pilot w/Filter |
| 16 | Tubing 3/16`` -Oven Therm. To Oven Control Pilot |
| 17 | Compression Nut 3/16`` |
| 18 | Compression Ball Sleeve 3/16`` |
| 19 | Screw 10-24x1/4`` |
| 20 | Orifice Cup Only (For 94) |
| 21 | Pilot Only (Inc`s 90) |
| 22 | Adjustment Screw -Air Shutter |
| 23 | Air Shutter |
| 24 | Control Valve (Inc`s. 7,8) |
| 25 | Screw 10-32 x 2`` |
| 26 | Oven Burner (Inc`s. 19, 32 & 33) |
| 27 | Baffle - Oven Burner |
| 28 | Gas Valve (4 Req) (Inc`s. 20) |
| 29 | Oven Thermostat (Inc`s 31) |
| 30 | Mounting Screw 5/16-24 |
| 31 | Silicone Rubber Gasket |
| 32 | Silicone Rubber Gasket |
| 33 | Gasket (For 81) |
| 34 | Mounting Screw (Inc`s 86) |
| 35 | Mounting Screw (2 Req. for 114) |
| 36 | Gasket (For 83) |
