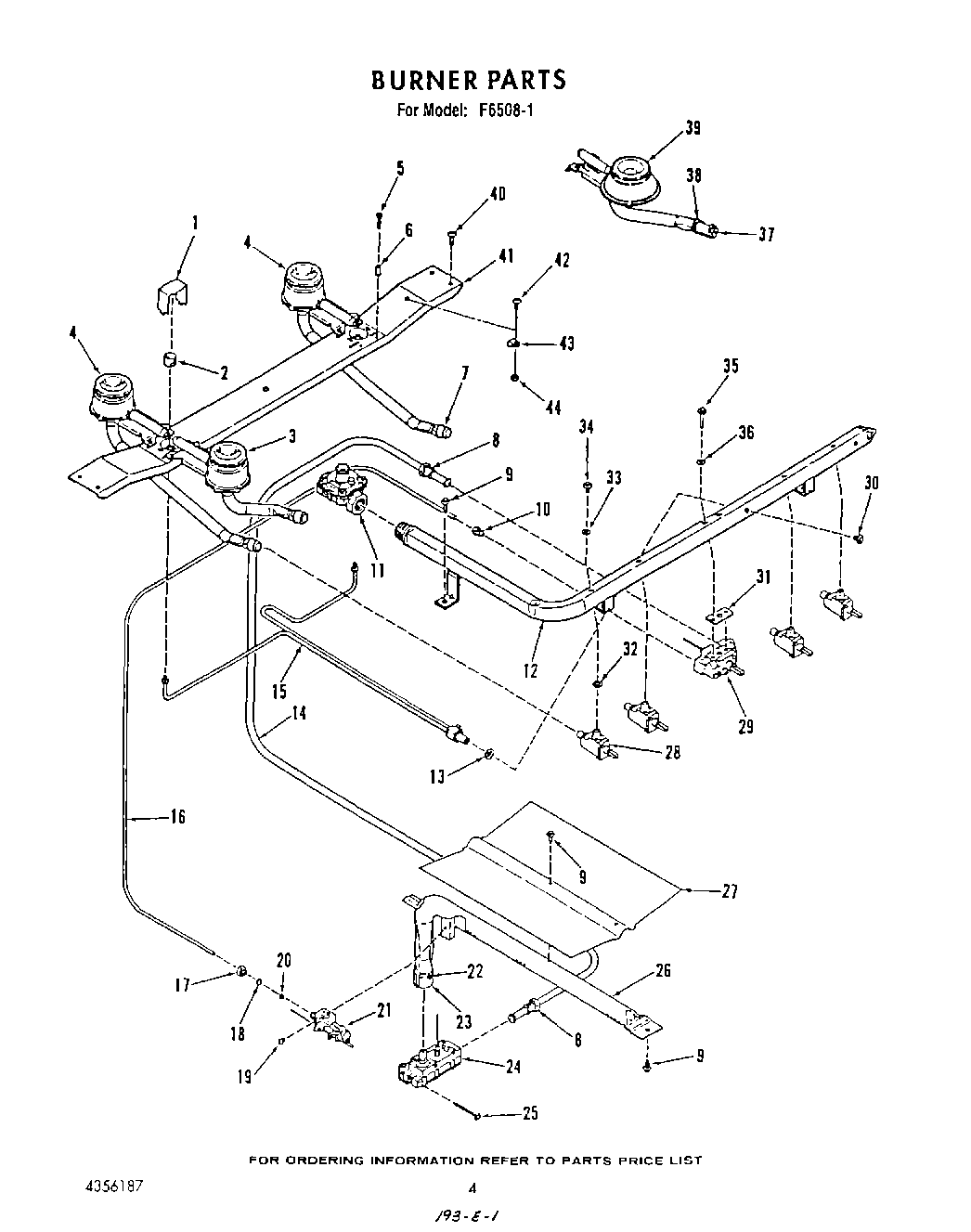

F6508^1 04 – BURNER

Products

Position	Product
1	Shield, Pilot
2	Cup, Pilot
3	Burner, Front-Lt. or Rt. (Incl. No.8)
4	Burner-Rear, Lt. or Rt. (Incl. No.8)
5	Screw No.6-32×7/8
6	Eyelet
7	Air Shutter
8	Nut, Inverted 3/8
9	SCREW
10	Nut, Loxit
11	Regulator-Pressure
12	Manifold Pipe
13	Seal
14	3/8 Tubing (Inc`s No.9)
15	Filter w/Pilot
16	Tubing 3/16
17	Compression Nut
18	Compression Sleeve
19	Screw, No.10-24 x 1/4
20	Orifice Cup
21	Pilot (Inc`s 35)
22	Screw, Adjustment-Air Shutter
23	Shutter, Air
24	Valve, Safety
25	Screw, No.10-32 x 2
26	Burner Assembly, (Inc`s 25, 29, 30)
27	Baffle, Oven Burn
28	Valve, Gas (Right Front)
28	Gas Valve (LF, LR and RR)
29	Thermostat (Inc`s. No.31)
30	Screw, Mounting (for No.15)
31	Seal
32	Seal, Valve-1 ea. Illus. 10 & 20
33	Seal (for No.34)
34	Screw, Mounting-1 Each-illus. 10 & 20
35	Screw
36	Seal
37	Shutter, Air
38	Screw-Adjustment, (Air Shutter)
39	Rt. Front Burner (Inc`s 22 & 23)
40	Screw No.6-20×3/8
41	Support-Top Burner
42	Screw, No.8-32 x 3/8
43	Clip (For No.1)
