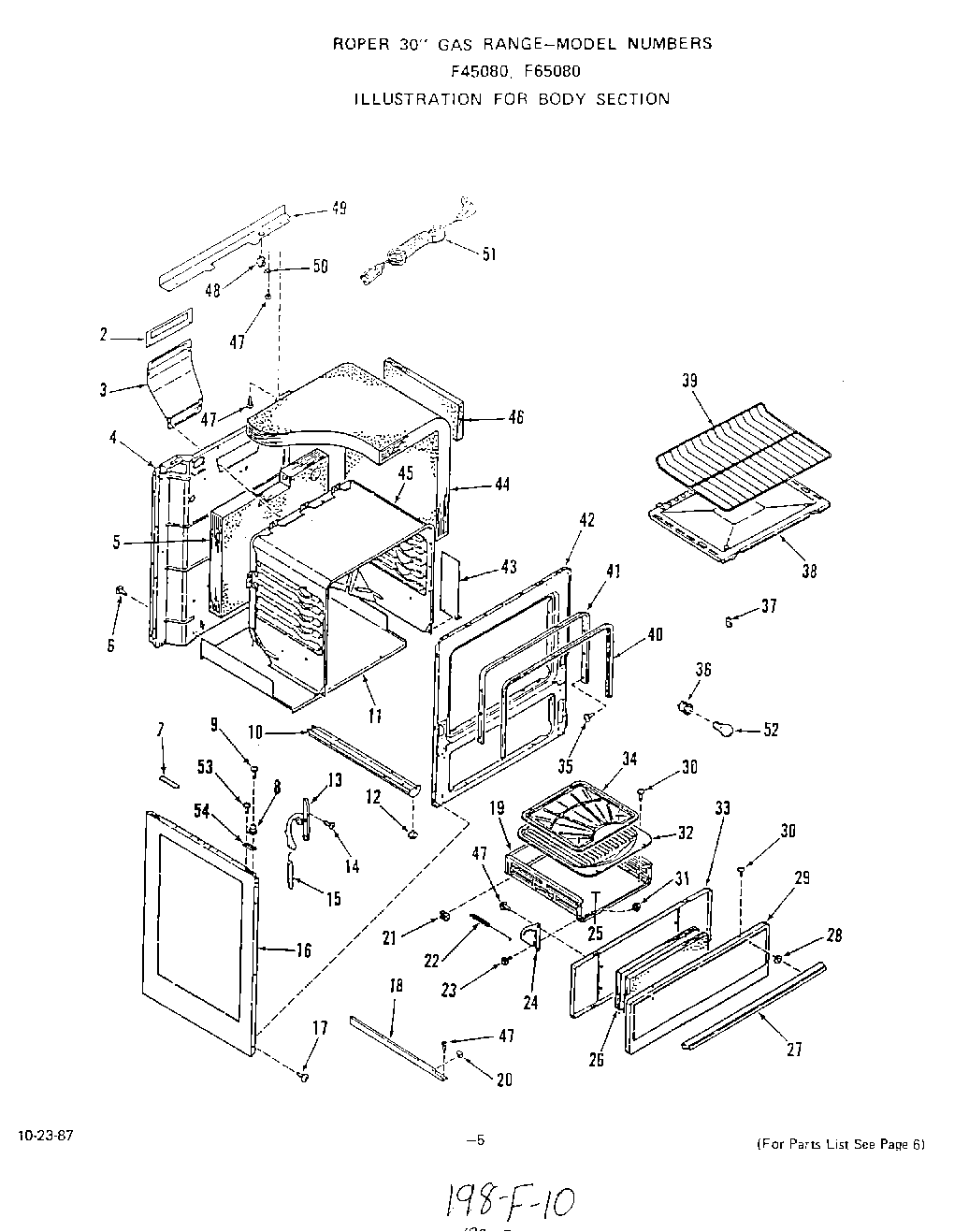

F6508W0 05 – BODY

Products

Position	Product
1	Flue Deflector Support
2	WPL 329314
3	Flue Deflector
4	Main Back
5	Insulation-Oven Back
6	WP112432 Whirlpool Nut Assembly
7	Spacer-Main Top
8	Strike
9	Screw 6-32×7/8“
10	Base w/Levelers-Lt. or Rt.
11	Bottom-Main
12	Leg Leveler (4 Req)
13	Hinge-Main Top (Left)
13	Hinge-Main Top (Right)
14	Screw
15	Spring-Oven Door (Lt. or Rt.)
16	Body Side (Almond)
16	Body Side (Black)
16	Body side (White)
17	Screw 10ABx1/2“
18	Broiler Drawer Guide (Right)
18	Broiler Drawer Guide (Left)
19	Broiler Drawer
20	Slide Block – Front
21	Slide Block – Rear
22	WPL 327481
23	Bolt-Shoulder
24	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
24	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
25	WPL 331554
27	Handle
28	Spacer
29	Panel-Broiler Door (White)
29	Front Panel-Broiler Door
29	Panel-Broiler Door (Almond)
30	Screw-10-32×1/2“
31	Keps Nut 10-24
32	Pan-Broiler (14451A M
33	Lining-Broiler Door (14451A Models)
34	WPL 331588
35	Screw 10ABx1/2“
36	Holder-Oven Lamp Bulb
37	Thermostat Bulb Clip (2 Required)
38	WPL 327084
38	WPL 331539
39	WPL 326068
40	WPL 326047
41	main chassis (almond)
42	Front Frame
43	WPL 328984
44	Insulation-Oven Top & Sides (1 Piece)
45	Oven Body
45	Oven Body (14451A Models)
46	W10820036 Whirlpool Door Switch Kit
47	Screw 10-16×7/16“
48	Disconnect
49	Cover-Backguard Bottom Wire
50	WPL 109266
51	Range Service Cord
52	Oven Lamp Bulb
53	Screw
54	WPL 334340
54	WPL 334341
