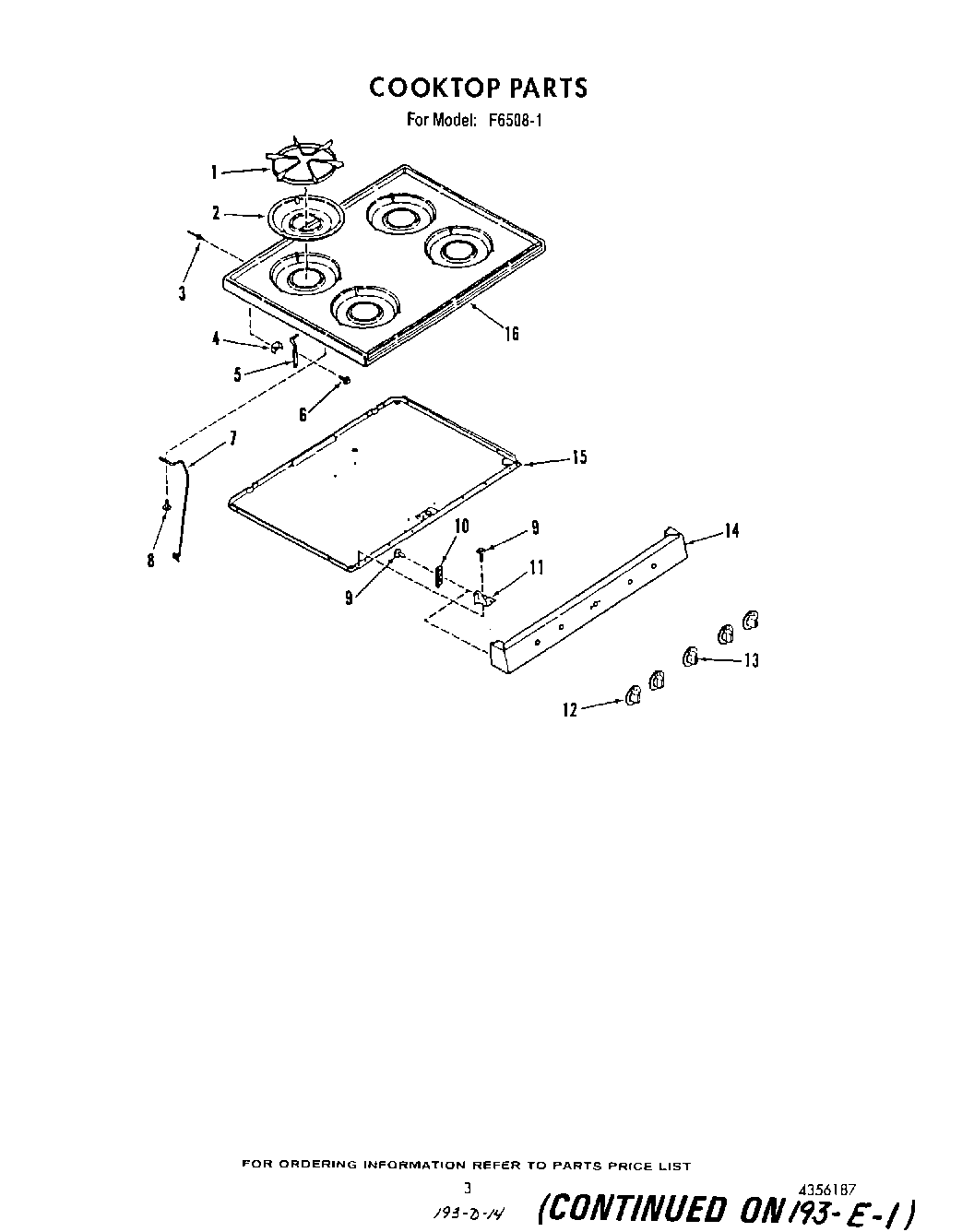

F6508X1 03 – COOK TOP

Products

Position	Product
1	Grate, Burner (4)
2	Pan, Aeration
3	Rivet
4	Bracket, Mounting
5	Hinge (Left)
5	Hinge (Right)
6	WP999367 Whirlpool Refrigerator Screw
7	Support Rod (2)
8	Screw
9	SCREW
10	Cleat
11	Bracket, Manifold (Right)
11	Bracket, Manifold (Left)
12	Knob, Gas Valve
13	Knob, Thermostat
14	Panel, Manifold
15	Bottom, Burner Box
16	Cooktop (Almond)
16	Cooktop (White)
16	Main Cooktop (Chrome)
