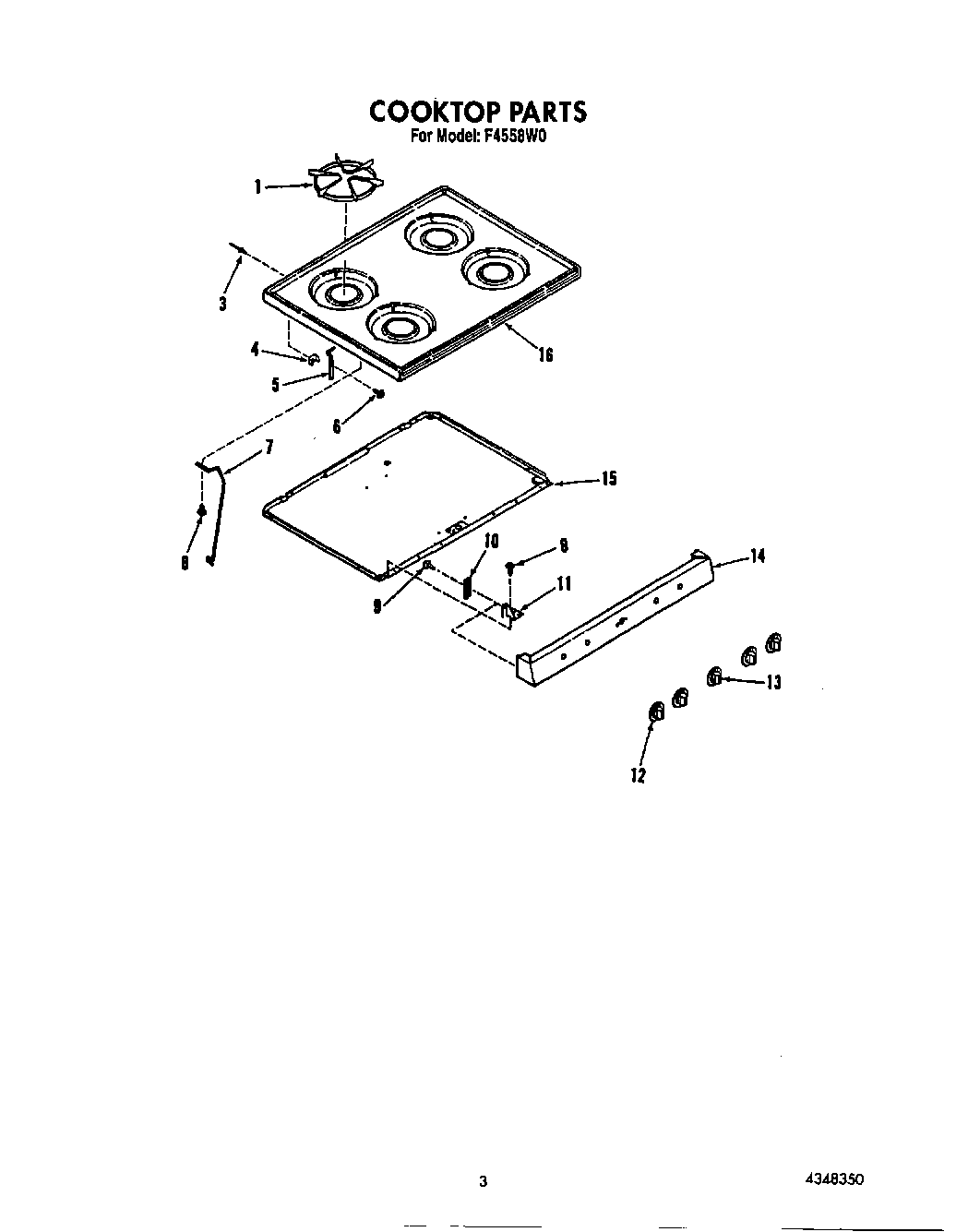

| 1 | Grate, Burner (4) |
| 3 | Rivet |
| 4 | Bracket, Mounting |
| 5 | Hinge (Right) |
| 5 | Hinge (Left) |
| 6 | WP999367 Whirlpool Refrigerator Screw |
| 7 | Support Rod (2) |
| 8 | Screw |
| 9 | SCREW |
| 10 | Cleat |
| 11 | Bracket, Manifold (Left) |
| 11 | Bracket, Manifold (Right) |
| 12 | Knob, Gas Valve |
| 13 | Knob, Thermostat |
| 14 | Panel, Manifold |
| 15 | Bottom, Burner Box |
| 16 | Cooktop (Almond) |
| 16 | Cooktop (White) |
| 16 | Main Cooktop (Chrome) |
